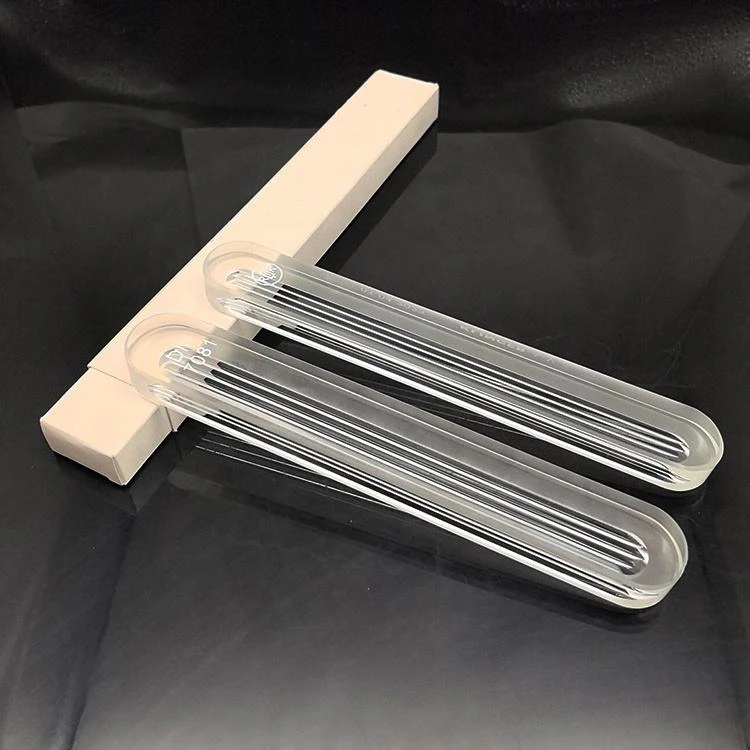

The High Quality Borosilicate 3.3 Reflex Level Gauge Glass Plate Klinger Sight Glass Level Gauge Plate is supplied as a sight / viewing glass made from Borosilicate Mode Ma. Listed geometry: size A1-A12, thickness 17mm(0.67in), flat shape. It is used in Industry. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
Material
Borosilicate Mode Ma
Type
Industry
Shape
Flat
Size
A1-A12
Thickness
17mm(0.67in)
Usage
Industry
Model NO.
Customized
Thickness of Flat Tempered Glass
1,2,3,4,5,6,8,10,12,15,19,20
Fragment State
Ⅲ
Technics
Physically Tempered
Composition
Borosilicate 3.3
Selling Units
Single Item Single PA
Mode
Manual
Single Package Size
10X10X15cm
Working Pressure
4MPa
Product Name
Reflex Level Gauge Glass
Single Gross Weight
1.000kg
Appearance
Flat Tempered
Supplier
Xinxiang Qianxuan Glass Products Co., Ltd.
Technical data
Plane
6.27Mpa (64Kgf/cm2)
8.33Mpa (85Kgf/cm2)
15.68Mpa (160Kgf/cm2)
31.36Mpa (320Kgf/cm2)
Slot
4.41Mpa (45Kgf/cm2)
Single slot
2.45Mpa (25Kgf/cm2)
Size
Plane
L
Width
Thickness
0
95
30
17
1
115
30
17
2
140
30
17
3
165
30
17
4
190
30
17
5
220
30
17
6
250
30
17
7
280
30
17
8
320
30
17
9
340
30
17
10
370
30
17
Size
Slot
L
Width
Thickness
1
95
34
17
2
115
34
17
3
140
34
17
4
165
34
17
5
190
34
17
6
220
34
17
7
250
34
17
8
280
34
17
9
300
34
17
10
320
34
17
What to specify when you request a quote
Glass type and thickness — listed as “Borosilicate Mode Ma”; name the glass and thickness.
Temperature and pressure — listed as “4MPa”; give working temperature, thermal shock and any pressure rating.
Strengthening and safety — listed as “1,2,3,4,5,6,8,10,12,15,19,20”; state tempering, lamination or the safety standard.
Outline and edges — listed as “Flat”; send a drawing with outline, holes and edge finish.
What is the High Quality Borosilicate 3.3 Reflex Level Gauge Glass Plate Klinger Sight Glass Level Gauge Plate made of? expand_more
It is listed as Borosilicate Mode Ma. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What sizes and thicknesses are available? expand_more
The listing gives size A1-A12, thickness 17mm(0.67in). Custom outlines and thicknesses are made to drawing; state the tolerance you need.
Where is this sight / viewing glass used? expand_more
Listed applications: Industry.
What should I include in a quote request? expand_more
Include glass type and thickness, temperature and pressure, strengthening and safety and outline and edges, plus quantity and a drawing if the part is custom.
