Product type: Quartz Plate. Application: Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting, Glass. Model: OS-0065.
Overview

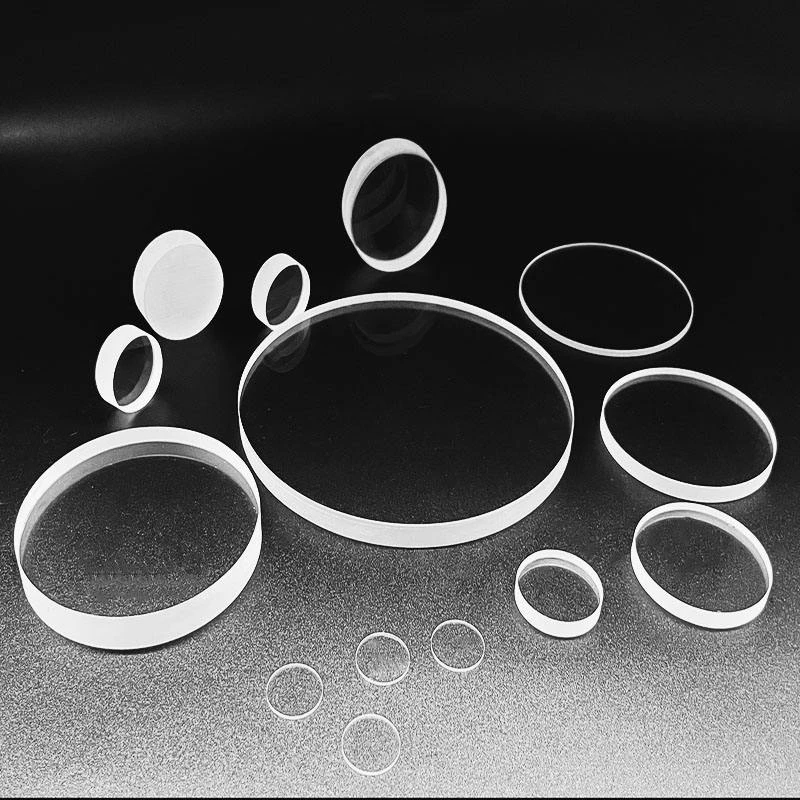

High Quality Diameter 9mm Optical Glass Jgs3 IR Quartz K9 Optical Glass Plate is a precision glass plate / sheet made from Bk7 / Quartz / K9 Glass. Listed geometry: round shape. Typical applications: Rubber, Plastic, Chemical, Construction and Metallurgy. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Substrate | Bk7 / Quartz / K9 Glass |
|---|---|
| Type | Quartz Plate |
| Shape | Round |
| Clear Aperture | 90% |
| Application | Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting, Glass |
| Model NO. | OS-0065 |
| Use | Optics Camera Lens |
| BK7 Optical Glass | Universal substrate with ≥92% transmittance (400-700nm), good chemical stability and processability. Ideal for camera lenses, optical windows. Operating temp: -20℃ to 200℃. |
| Fused Silica Glass | Excellent transmittance (200-2500nm, ≥90%), ultra-low thermal expansion and high-temperature resistance (≤1000℃). Suitable for laser processing heads and UV detection equipment. |
| Sapphire Optical Glass | Mohs hardness 9, high wear/impact resistance, wide transmittance (200-5000nm) and excellent chemical stability. Perfect for industrial endoscopes, aerospace optical windows. |
| Optoelectronic Imaging | BK7 & low-dispersion glass for DSLRs, industrial vision lenses and medical imaging equipment, ensuring clarity and color reproduction. |
| Laser Technology | Fused silica glass for laser cutting/welding heads and resonant cavity blanks, ensuring laser transmission stability. |
| Semiconductor Manufacturing | High-purity optical glass for lithography and wafer inspection equipment, meeting strict impurity requirements (metal ions ≤1ppm). |
| Aerospace & Security | Sapphire and high-temperature glass for UAV cameras, satellite optical payloads and security lenses, withstanding harsh environments. |
| Supplier | C-Laser (Taicang) Material Technology Co., Ltd. |
Technical data
| Production Name | optical glass custom |
|---|---|
| Material | optical glass |
| Dimention Tolerance | +/-0.01 |
| shape | round,square |
| color | transparent |
| coating | mirror coated,ar coated |
| Application | optical equipment |
What to specify when you request a quote
- Material — listed as “Bk7 / Quartz / K9 Glass”; name the glass or quartz grade.
- Outline and thickness — give outline, thickness and tolerances.
- Holes, slots and features — listed as “Round”; dimension every hole and its position tolerance on the drawing.
- Edges — state edge finish and chamfer.
- Surface — state polish and flatness where they matter.
