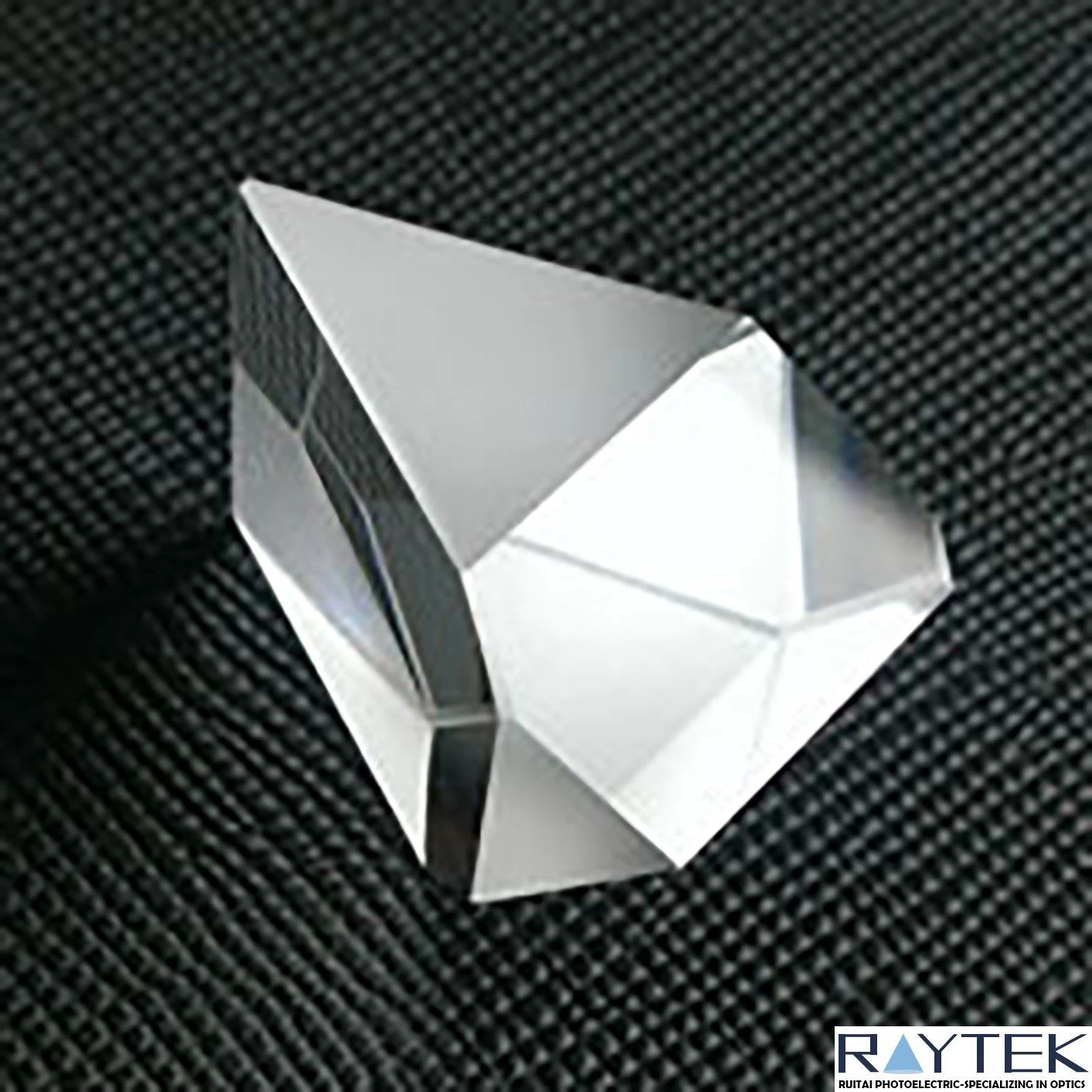

Product type: Optical Prism. Application: Beam Dispersion, Beam Split, Laser, Astronomy, Imaging, Detection, etc. Model: RAY-XS032#.
Overview
High-Quality Optical Prism for Scientific Research and Experiments is an optical prism made from Glass. Supplied uncoated. Listed for The Cavity to Compensate The Dispersion of Fixed applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Optical Prism |
| Shape | Customized |
| Coating | Uncoated |
| Application | The Cavity to Compensate The Dispersion of Fixed |
| Usage | Beam Dispersion, Beam Split, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | RAY-XS032# |
| Prism Substrates | UVFS |
| Optional I | UVFS/SF10/N-LAKL21 |
| Optional II | Equivalent UVFS/SF10/N-LAKL21 |
| Applying Fields I | Used in the cavity to compensate the dispersion of fixed cavity optical elements |
| Applying Fields II | In the external cavity to manipulate the pulse characteristics |
| Main Cooperation Materials Manufacturers | CORNING, OHARA, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Optional I: | UVFS/SF10/N-LAKL21from CORNING, OHARA, , LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
|---|---|
| Optional II: | Equivalent UVFS/SF10/N-LAKL21Made in China, C-laser own brands |
| Applying Fields I: | Used in the cavity to compensate the dispersion of fixed cavity optical elements |
|---|---|
| Applying Fields II: | In the external cavity to manipulate the pulse characteristics |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Uncoated”; list the band and reflectance or transmission target.
Engineering guides for this part
How parts like this are machined and finished is covered in Flat Glass Polishing Process for Precision Substrates. Before sending a drawing, check Design Guide for Holes, Slots, and Edges in Custom Glass Parts.
FAQ
What is the High-Quality Optical Prism for Scientific Research and Experiments made of? expand_more
It is listed as Glass. Coating: Uncoated. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
Where is this optical prism used? expand_more
Listed applications: The Cavity to Compensate The Dispersion of Fixed.
What should I include in a quote request? expand_more
Include material, geometry, surface figure, centring and edges and coating, plus quantity and a drawing if the part is custom.
