Product type: Color Filter. Application: Lighting, Medical, Optical. Model: AT-61047.
Overview

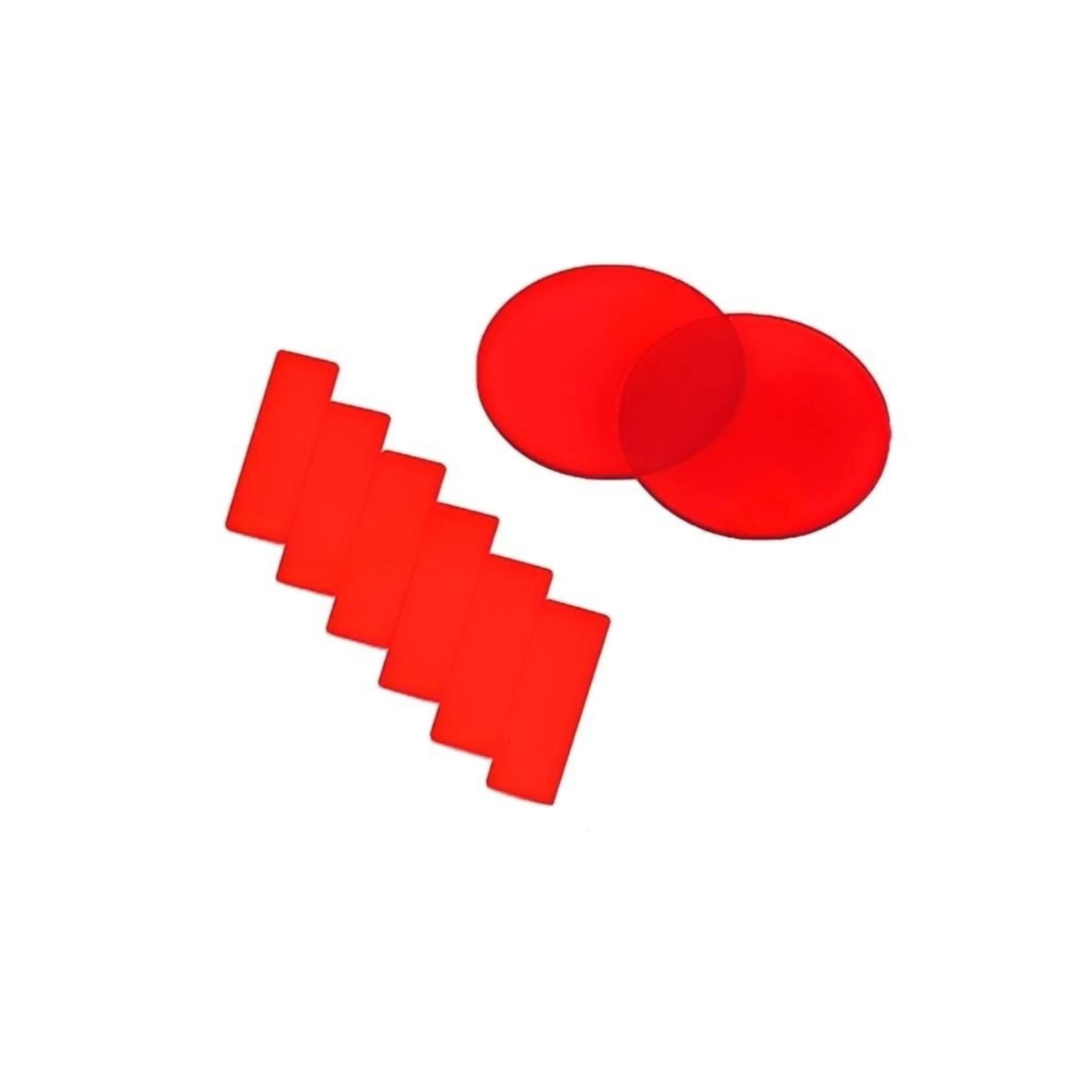

High-Quality Red Glass Filter for Photography and Optical Use is an optical filter made from Glass. Listed geometry: thickness 5mm-10mm. It is used in Lighting, Medical and Optical. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Usage | Lighting, Medical, Optical |
| Model NO. | AT-61047 |
| Thickness Range | 5mm-10mm |
| Color | Purple |
| Principle | Cut-off Filter |
| Supplier | Shanghai Anttrans Technology Co., Ltd |
Technical data
| Model | Thickness (mm) | A[2856k] | D65 | Chemical Stability | ND | α×10^-7 (ºC) | Tg (ºC) | Ts (ºC) | S | |||||
| X | Y | Y | X | Y | Y | DA | DW | |||||||
| AT600 | 2 | 0.680 | 0.319 | 27.0 | 0.675 | 0.325 | 16.5 | 1 | 2 | 1.523 | 103 | 527 | 605 | 2.64 |
| AT610 | 2 | 0.695 | 0.305 | 18.4 | 0.690 | 0.310 | 10.7 | 1 | 2 | 1.523 | 103 | 527 | 605 | 2.64 |
| AT630 | 2 | 0.713 | 0.287 | 10.4 | 0.711 | 0.289 | 5.5 | 1 | 2 | 1.523 | 103 | 527 | 605 | 2.64 |
| AT640 | 2 | 0.724 | 0.276 | 5.0 | 0.723 | 0.277 | 2.4 | 1 | 2 | 1.523 | 103 | 527 | 605 | 2.64 |
| AT650 | 2 | 0.728 | 0.272 | 3.2 | 0.728 | 0.272 | 1.5 | 1 | 2 | 1.523 | 103 | 527 | 605 | 2.64 |
| AT670 | 2 | 0.731 | 0.269 | 1.1 | 0.730 | 0.270 | 0.5 | 1 | 2 | 1.523 | 103 | 527 | 605 | 2.64 |
| AT685 | 2 | 0.734 | 0.266 | 0.3 | 0.734 | 0.266 | 0.1 | 1 | 2 | 1.523 | 103 | 527 | 605 | 2.64 |
| AT700 | 2 | 0.735 | 0.265 | 0.0 | 0.735 | 0.265 | 0.0 | 1 | 2 | 1.523 | 111 | 534 | 592 | 2.64 |
| AT720 | 2 | – | – | – | – | – | – | 5 | 4 | |||||
| Model | Thickness (mm) | λtj (nm) | λo (nm) | Tλo (%) | K | |||||||||
| AT600 | 2 | 600 ± 10 | 680 | ≤85.7 | ≤1.2 | |||||||||
| AT610 | 2 | 610 ± 10 | 680 | ≤85.7 | ≤1.2 | |||||||||
| AT630 | 2 | 630 ± 10 | 700 | ≤85.7 | ≤1.2 | |||||||||
| AT640 | 2 | 640 ± 10 | 720 | ≤85.7 | ≤1.2 | |||||||||
| AT650 | 2 | 650 ± 10 | 720 | ≤87.5 | ≤1.0 | |||||||||
| AT670 | 2 | 670 ± 10 | 750 | ≤87.5 | ≤1.0 | |||||||||
| AT683 | 2 | 685 ± 10 | 800 | ≤85.6 | ≤0.8 | |||||||||
| AT700 | 2 | 700 ± 10 | 800 | ≥76.8 | ≤0.8 | |||||||||
| AT720 | 3 | 720 ± 10 | 800 | ≥80.0 | ≤0.8 | |||||||||
| Model | Bubbles | Streaks/Softness | Stress | |||||||||||
| AT600 | C-B | 3C | 3 | |||||||||||
| AT610 | C-B | 3C | 3 | |||||||||||
| AT630 | C-B | 3C | 3 | |||||||||||
| AT640 | C-B | 3C | 3 | |||||||||||
| AT650 | C-B | 3C | 3 | |||||||||||
| AT670 | C-B | 3C | 3 | |||||||||||
| AT683 | C-B | 3C | 3 | |||||||||||
| AT700 | C-B | 3C | 3 | |||||||||||
| AT720 | C-B | 4 | 3 |
