Product type: Explosion-Proof Glass. Application: Furniture, Door, Building, Window. Function: Optical Function, Electromagnetic Function, Thermal Function, Mechanics and Mechanical Function, Biological and Chemical Function.
Overview

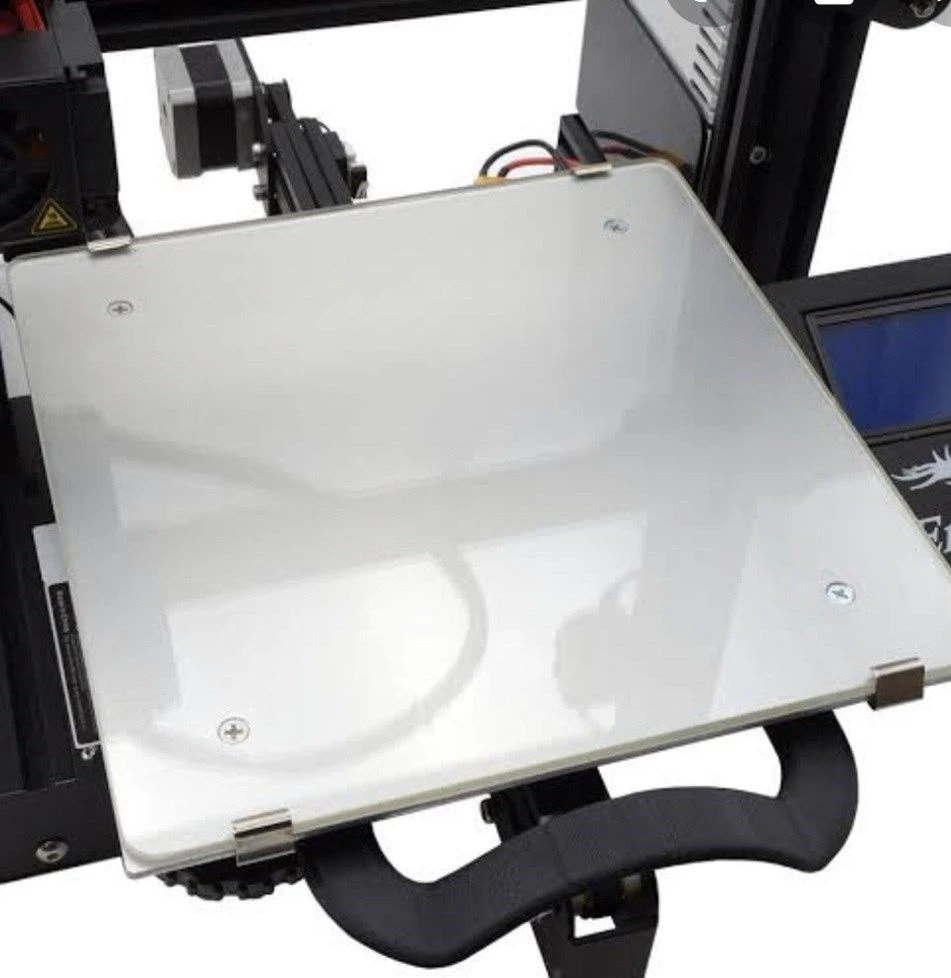

High Temp Resistant Borosilicate Glass Sheet for Fdm 3D Printer Heated Bed is a precision glass plate / sheet made from 3.3 High Borosilicate Float Glass. Listed geometry: size 1150*850mm, 1150*1700mm or Any Cut Size, thickness 4mm,5mm,6mm, plate shape. Optical / electrical data: transmittance ≥91%, sheet resistance 500ºC. Flatness ≤0.03mm/m; temperature 500. It is used in Building. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | 3.3 High Borosilicate Float Glass |
|---|---|
| Type | Explosion-Proof Glass |
| Shape | Plate |
| Size | 1150*850mm, 1150*1700mm or Any Cut Size |
| Thickness | 4mm,5mm,6mm |
| Application | Building |
| Usage | Furniture, Door, Building, Window |
| Structure | Solid |
| Moh's Hardness | 10 |
| Function | Optical Function, Electromagnetic Function, Thermal Function, Mechanics and Mechanical Function, Biological and Chemical Function |
| Transparency | Transparent |
| Processing Method | Mechanical Stretching |
| Preparation Process | High Speed Cooling Method |
| Color | Clear |
| Item | Borosilicate Glass Sheet for 3D Printer Heated Bed |
| Technique | Microfloat Technology |
| Property | Heat Resistant and Eco Friendly |
| Process | Cutting, Grounding, Polishing, Silk Printing |
| Use | Microscope Slide, Lab,Sight Window, Fireplace |
| Feature | High Transmittance |
| Mohs Hardness | 8 |
| Continuous Operating Temp | ≤400ºC |
| Short-Term Peak Temp Resistance | 500ºC |
| Standard Thickness | 3mm / 3.5mm / 4mm |
| Common Stock Sizes | 220×220mm, 235×235mm, 300×300mm, 257×257mm, 150×230mm, round custom sizes |
| Flatness Tolerance | ≤0.03mm/m |
| Edge Treatment | Fully ground chamfered safety edge |
| Light Transmittance | ≥91% |
| Fits most desktop FDM 3D printers | Creality Ender 3 / Ender 5 / CR series, Prusa MK series, Bambu Lab P1/X1, Anycubic, Flashforge, Wanhao, RepRap, Delta Kossel printers and custom industrial 3D equipment. |
| Strict sorting system | out-of-tolerance, scratched or warped glass will be fully rejected, never mixed into bulk orders. |
| Sizes | 1150*850mm |
| Customized size | Φ ≥ 50mm will be welcome and made according to your requirements |
| Maximum working temperature Short time(<10h) | 500 |
| Long time(>10h) | 450 |
| Refractive index ND | 1.47384 |
| Supplier | Jinan Honhai Glass Company Limited |
What to specify when you request a quote
- Material — listed as “3.3 High Borosilicate Float Glass”; name the glass or quartz grade.
- Outline and thickness — listed as “1150*850mm, 1150*1700mm or Any Cut Size”; give outline, thickness and tolerances.
- Holes, slots and features — listed as “Plate”; dimension every hole and its position tolerance on the drawing.
- Edges — listed as “Fully ground chamfered safety edge”; state edge finish and chamfer.
- Surface — listed as “≤0.03mm/m”; state polish and flatness where they matter.
