Product type: Fireproof Glass. Application: Furniture, Door, Building, Window. Model: JSV-GG. Function: Optical Function, Electromagnetic Function, Thermal Function, Mechanics and Mechanical Function, Biological and Chemical Function.
Overview

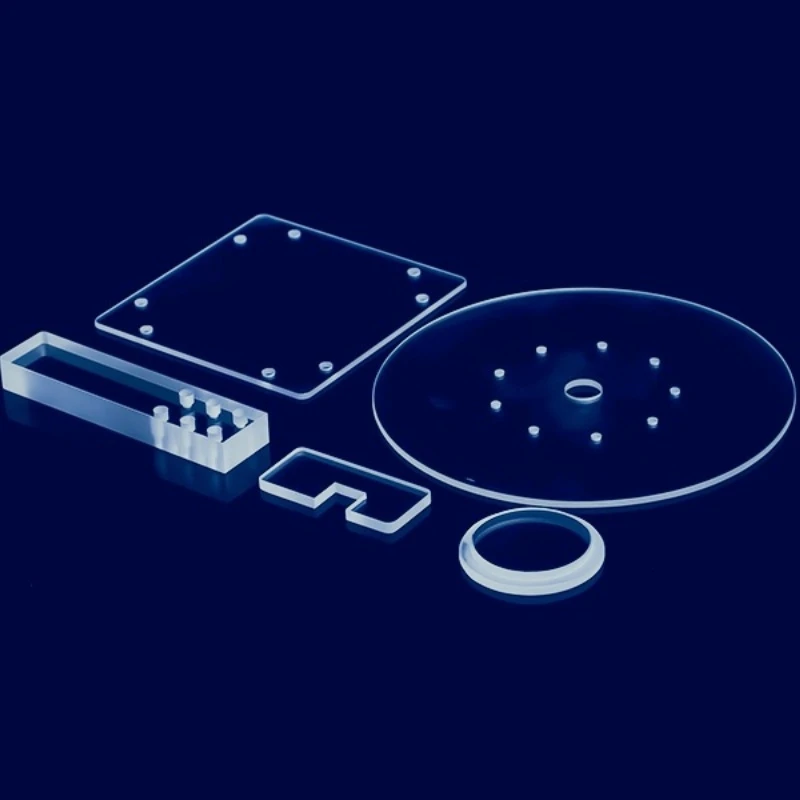

High Temperature Borosilicate Glass Sheet Round Sight Glass Discs is a sight / viewing glass. Listed geometry: thickness 0.5mm to 25mm, plate shape. Temperature 500 Degree. Typical applications: Auto Manufacturing. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Fireproof Glass |
|---|---|
| Shape | Plate |
| Thickness | 0.5mm to 25mm |
| Application | Auto Manufacturing |
| Usage | Furniture, Door, Building, Window |
| Model NO. | JSV-GG |
| Structure | Solid |
| Moh's Hardness | 10 |
| Function | Optical Function, Electromagnetic Function, Thermal Function, Mechanics and Mechanical Function, Biological and Chemical Function |
| Transparency | Transparent |
| Processing Method | Poling Process |
| Preparation Process | Fusion Method |
| Color | Clear |
| Feature | Heat Resistance |
| Processing | Cut, Grind, Polish |
| Working Temperature | 500 Degree |
| Oven | Fire Proof |
| Length* Width | 1150*850mm, 1150*1700mm |
| Physical Data | 1 |
| Data | 1 |
| Supplier | Jinan JSV Industrial Co., Ltd. |
Technical data
| Product Name | Borosilicate 3.3 floated glass sheet |
|---|---|
| Standard Size | Length* Width: 1150*850mm, 1150*1700mmThickness: 0.5mm to 25mm |
| Feature | Thermal resistance, transparency, chemical durability, machanical strength |
| Processing | Cutting, grinding, polishing, drilling, sandblasting, coating, bending, printing |
| Packing | Wooden crate |
| 1 | Coefficient of mean linear thermal expansion (20ºC~310ºC) | 3.3 | 10-6K-1 |
| 2 | Density | 2.23 | g/cm3 |
| 3 | Transformation temperature | 525 | °C |
| 4 | Annealing point | 560 | °C |
| 5 | Working temperature | ||
| For short-term usage (< 10 h) | 500 | °C | |
| For long-term usage (≥ 10 h) | 450 | °C |
| 1 | Hydrolytic resistance (ISO 719) | ISO 719 | HGB 1 |
| 2 | Acid resistance | DIN 12116 | 1 |
| 3 | Alkali resistance | ISO 695 | A 2 |
What to specify when you request a quote
- Glass type and thickness — listed as “0.5mm to 25mm”; name the glass and thickness.
- Temperature and pressure — listed as “500 Degree”; give working temperature, thermal shock and any pressure rating.
- Strengthening and safety — state tempering, lamination or the safety standard.
- Outline and edges — listed as “Plate”; send a drawing with outline, holes and edge finish.
