Product type: Quartz Plate. Application: Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting, Glass. Model: HB-QP.
Overview

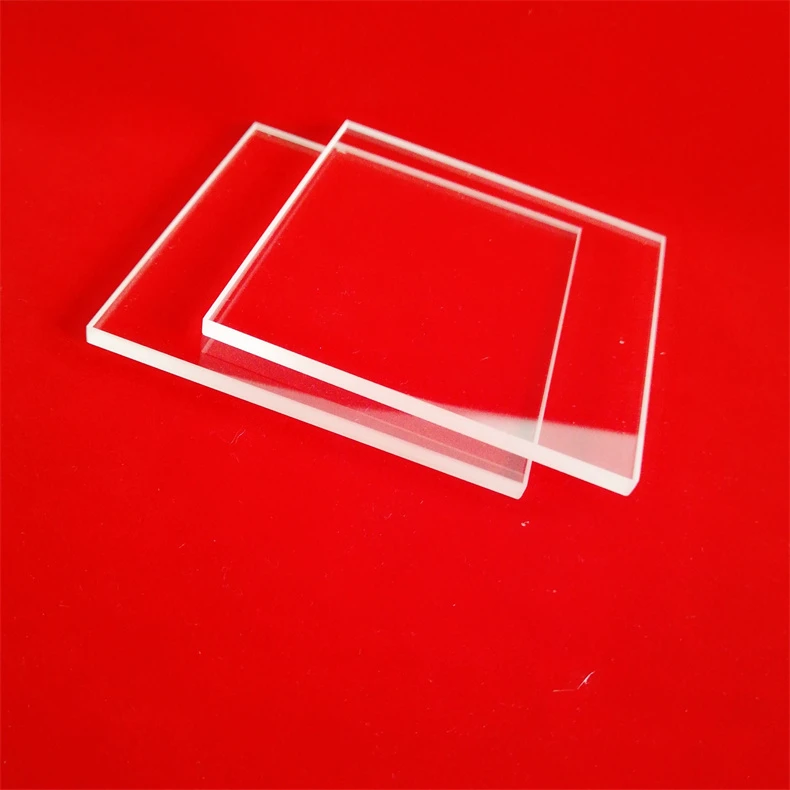

The High Transmittance Heat Resistence Fused Silica Sheet Transparent UV Quartz Glass Plate is supplied as a precision glass plate / sheet made from Quartz Glass. Listed geometry: round/square/customized according drawing shape. Temperature 1100 Degree. It is used in Rubber, Plastic, Chemical, Construction and Metallurgy. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Quartz Glass |
|---|---|
| Type | Quartz Plate |
| Shape | Round/Square/Customized According Drawing |
| Application | Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting, Glass |
| Model NO. | HB-QP |
| Color | Clear/Transparent |
| Wall Thickness | 0.3-500mm |
| Edge Treatment | Flame Pooished |
| Surface Treatment | Polished/Grinded |
| Working Temperature | 1100 Degree |
| Surface | No Air Bubbles No Air Lines |
| Density | 2.2g/cm3 |
| Keyword | Clear Square Optical Quartz Glass Window |
| Long-term | 1100 |
| We supply all kind quartz product, containing | quartz glass tube, quartz glass plate, quartz glass crucible, quartz glass cuvette |
| Supplier | LIANYUNGANG BAIBO NEW MATERIAL CO., LTD. |
Technical data
| Technical Data of Clear Quartz Glass Plate | ||
| Property Content | Unit | Property Index |
| Density | g/cm³ | 2.21 |
| Tensile Strength | Pa(N/M2) | 4.9×107 |
| Compression Strength | Pa | >1.1×109 |
| Coefficient of Thermal Expansion | cm/cmºC | 5.5×10-7 |
| Thermal Conductivity | W/mºC | 1.4 |
| Specific Heat | J/kgºC | 680 |
| Operation Temperature | ºC | Long-term: 1100 |
| Softening Point | ºC | 1700 |
| Annealing Point | ºC | 1210 |
| 1. High-quality products | 2. Optimal price | 3.SafeTransportation |
| 4. Sample service | 5. Customized size | 6. Compensate for broken goods |
| 7. Safe package | 8. Transportation safety | 9. Low procurement risk |
What to specify when you request a quote
- Material — listed as “Quartz Glass”; name the glass or quartz grade.
- Outline and thickness — listed as “0.3-500mm”; give outline, thickness and tolerances.
- Holes, slots and features — listed as “Round/Square/Customized According Drawing”; dimension every hole and its position tolerance on the drawing.
- Edges — listed as “Flame Pooished”; state edge finish and chamfer.
- Surface — listed as “Polished/Grinded”; state polish and flatness where they matter.
