Product type: Quartz Plate. Application: Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting, Glass. Model: OS-0059.
Overview

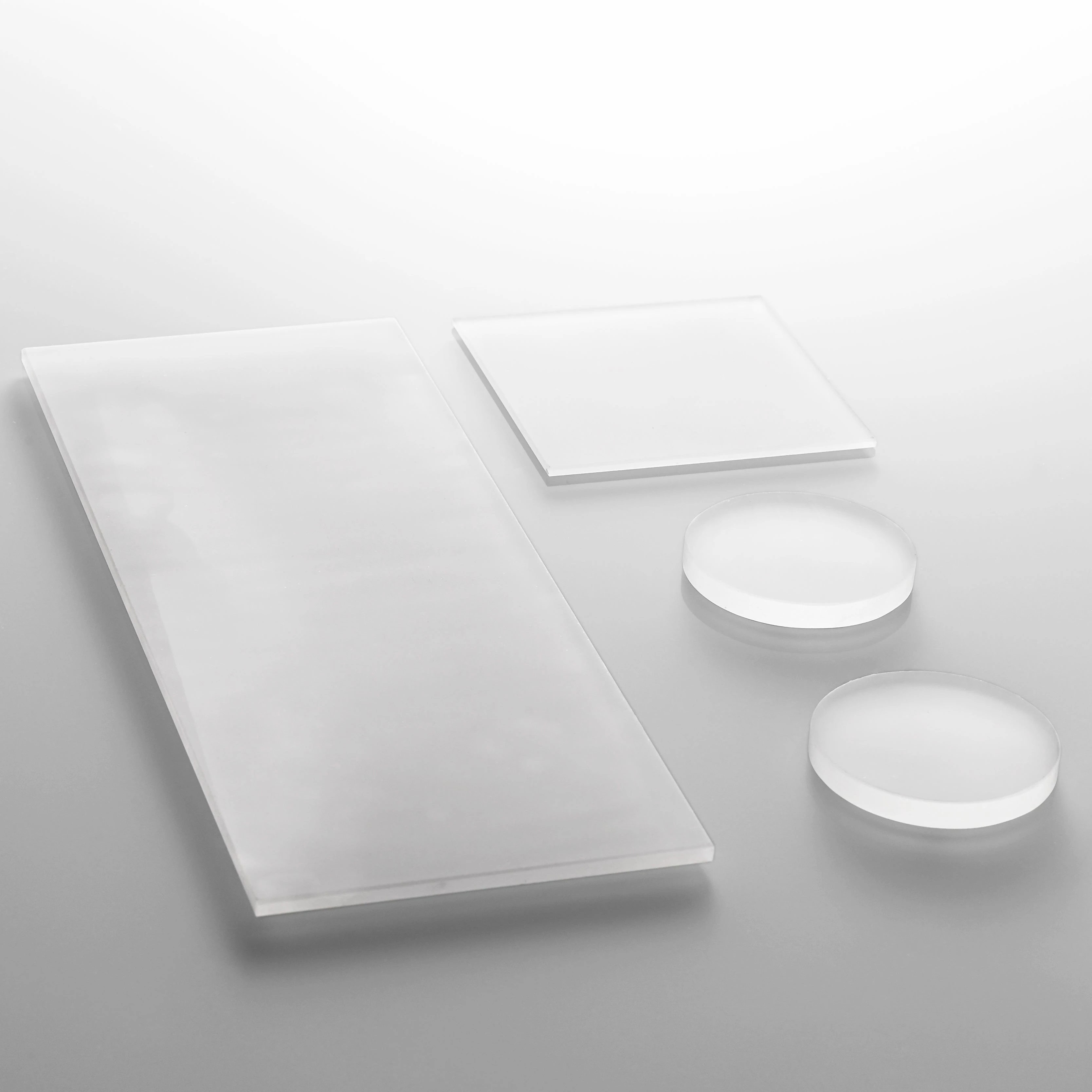

High Transmittance UV Fused Silica Quartz Glass Plate for Optical Instruments is a precision glass plate / sheet made from Ohara Sk-1320 Fused Silica. Listed for Rubber, Plastic, Chemical, Construction and Metallurgy applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Substrate | Ohara Sk-1320 Fused Silica |
|---|---|
| Type | Quartz Plate |
| Application | Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting, Glass |
| Model NO. | OS-0059 |
| Bubbles | 0-0.03mm2/100cm3 |
| Striae | Grade a in One Direction(as Per Mil-G-174) |
| Birefrengence(Strain) | 10nm/Cm and Under |
| Supplier | C-Laser (Taicang) Material Technology Co., Ltd. |
Technical data
| Item | Unit | Value |
| Density | g/cm3 | 2.20 |
| Yong's Module | GPa | 71.4 |
| Poisson's ratio | 0.17 | |
| Compression strength | GPa | 1.1 |
| Bending strength | MPa | 69 |
| Tensile strength | MPa | 55 |
| Torsional rigidity | GPa | 30.9 |
| Vickers hardness | GPa | 8.8-10.1 |
| Knoop hardness | Kg/mm2 | 6.4-7.0 |
| Coefficient of thermal expansion | cm/cmºC | 5.5*10-7 |
| Softening point | ºC | 1700 |
| Annealing point | ºC | 1160 |
| Strain point | ºC | 1060 |
| Specific heat(26ºC) | kJ/kgK | 0.74 |
| Thermal conductivity ratio(26ºC) | cal/cm.sec.ºC | 1.1 |
| Thermal conductivity ratio(100ºC) | Cal/cm.sec.ºC | 1.1 |
What to specify when you request a quote
- Material — listed as “Ohara Sk-1320 Fused Silica”; name the glass or quartz grade.
- Outline and thickness — give outline, thickness and tolerances.
- Holes, slots and features — dimension every hole and its position tolerance on the drawing.
- Edges — state edge finish and chamfer.
- Surface — state polish and flatness where they matter.
