Product type: Quartz Plate. Application: Chemical, Ceramic, Glass, Semiconductor Density. Model: Customized.
Overview

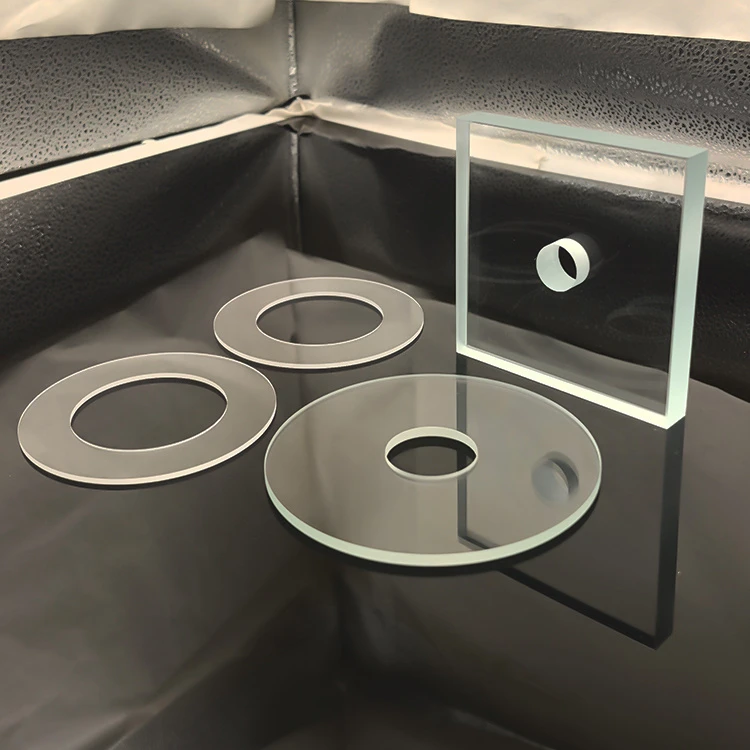

High Transparent Optical Quartz Glass Jgs1 Jgs2 Silica Sight Glass Lens Durable High Temperature Resistant Other Glass Product is a sight / viewing glass. Temperature 1100c-1200c. It is used in Chemical, Ceramic, Glass and Semiconductor Density. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Quartz Plate |
|---|---|
| Application | Chemical, Ceramic, Glass, Semiconductor Density |
| Model NO. | Customized |
| Selling Units | Single Item Single |
| Product Name | Quartz Glass Plate |
| Single Package Size | 1X1X1.5cm |
| Softening Point | 1600 Degree |
| Work Temperature | 1100c-1200c |
| Appearance | Ponsneu Hreaunen Sonerng Po |
| Single Gross Weight | 0.002 Kg |
| Clarity Type | Clear Quartz Plate |
| Structure | Circular Shape |
| Sonerng Pont | Aafan Nnat |
| Size&design | Accept customize according to different diameter , thickness, length or sending your drawing. |
| Supplier | Xinxiang Qianxuan Glass Products Co., Ltd. |
Technical data
| Purity | >99.99% |
|---|---|
| Density | 2.2(g/cm3) |
| Melting point | 1730℃ |
| Working temperature | 1250℃ |
| Max temperature can reach in a short time | 1450℃ |
| Softening point | 1730℃ |
| Annealing point | 1215℃ |
| UV spectral region transmittance | 80% |
| Visible light transmittance | above 93% |
| Resistance value | 10000 times than ordinary glass |
| Acid tolerance | 30 times than Ceramics , 150 times than Stainless steel |
What to specify when you request a quote
- Glass type and thickness — name the glass and thickness.
- Temperature and pressure — listed as “1100c-1200c”; give working temperature, thermal shock and any pressure rating.
- Strengthening and safety — state tempering, lamination or the safety standard.
- Outline and edges — listed as “1X1X1.5cm”; send a drawing with outline, holes and edge finish.
