Product type: Sheet Glass. Application: Furniture, Door, Building, Window. Model: RSY-2. Function: Low Iron Glass/Ultra Clear Glass/Soda Lime Glass.
Overview

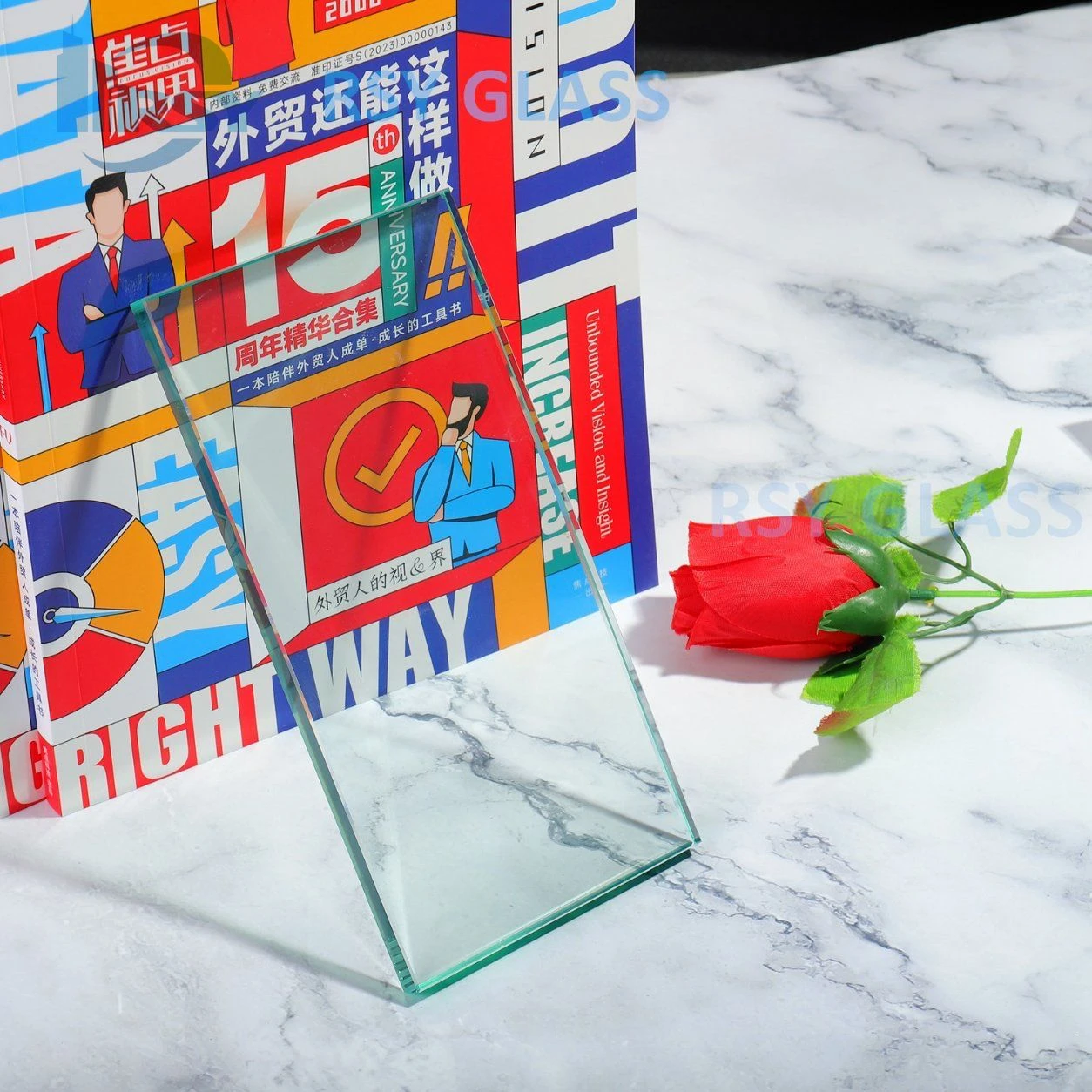

Hot Sale Clear Float Glass Sheet with Various Size 4mm 5mm 6mm is a building / safety glass. Listed geometry: thickness 2mm,3mm,4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm,22mm, flat shape. Optical / electrical data: transmittance >80%. Listed for Furniture, Door, Building and Window applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Sheet Glass |
|---|---|
| Shape | Flat |
| Thickness | 2mm,3mm,4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm,22mm |
| Usage | Furniture, Door, Building, Window |
| Structure | Solid |
| Model NO. | RSY-2 |
| Function | Low Iron Glass/Ultra Clear Glass/Soda Lime Glass |
| Nominal Thickness | 2mm,3mm,4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm,22mm |
| Surface State | Flat |
| Grade | Grade One |
| Forming | Float Process |
| Workmanship | Float Glass |
| Color | Clear |
| Light Transmittance | >80% |
| Transparency | Transparent |
| Jumbo sizes | 3300mmx4500/5100/6000/8000mm/12000mm ect. |
| About Price | Could I get your price list? |
| About Lead Time | How soon we can get the shipment? |
| About MOQ | what is the minimum order quantity? |
| About payment term | What is your payment term? |
| Supplier | Foshan Rui Shengyuan Building Material Co., Ltd. |
Technical data
| Item | Thickness(mm) | Visible Light | Solar Energy | U value(W/m2·K) | Shading coefficent | Rel.Heat Gain | Sound insulation | ||||||
| Tvis | Rvis | Tsol | Rsol | Summer | Winter | Summer | Winter | Rm | Rw | Rtra | |||
| CLEAR FLOAT GLASS | 3 | 90.5 | 8 | 86.2 | 7.3 | 5.53 | 5.49 | 1.02 | 1.01 | 561 | 26 | 30 | 24 |
| 3.2 | 90.4 | 8 | 86.1 | 7.3 | 5.51 | 5.47 | 1.02 | 1.01 | 555 | 26 | 30 | 24 | |
| 4 | 90.2 | 7.9 | 85.9 | 7.3 | 5.5 | 5.46 | 1.02 | 1.01 | 550 | 27 | 30 | 24 | |
| 5 | 90 | 7.9 | 85.5 | 7.2 | 5.46 | 5.42 | 1.01 | 1 | 540 | 29 | 31 | 28 | |
| 6 | 89.6 | 7.9 | 84.6 | 7.1 | 5.42 | 5.37 | 1.01 | 1 | 523 | 29 | 32 | 28 | |
| 8 | 89 | 7.8 | 82.1 | 6.9 | 5.39 | 5.34 | 0.98 | 0.97 | 510 | 31 | 34 | 30 | |
| 10 | 88.3 | 7.8 | 76.9 | 6.7 | 5.32 | 5.27 | 0.94 | 0.93 | 497 | 33 | 36 | 32 | |
| 12 | 87.8 | 7.6 | 75.5 | 6.5 | 5.25 | 5.2 | 0.93 | 0.92 | 480 | 34 | 37 | 33 | |
| 15 | 86.8 | 7.5 | 72.2 | 6.2 | 5.15 | 5.1 | 0.90 | 0.89 | 457 | 35 | 38 | 34 | |
| 19 | 85.5 | 7.5 | 68.2 | 6.0 | 5.04 | 4.98 | 0.87 | 0.88 | 459 | 37 | 40 | 35 |
What to specify when you request a quote
- Glass type and thickness — listed as “2mm,3mm,4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm,22mm”; name the glass and thickness.
- Temperature and pressure — give working temperature, thermal shock and any pressure rating.
- Strengthening and safety — state tempering, lamination or the safety standard.
- Outline and edges — listed as “Flat”; send a drawing with outline, holes and edge finish.
