Product type: Quartz Plate. Application: Chemical, Ceramic, Glass, Semiconductor. Model: WTK-Quartz.
Overview

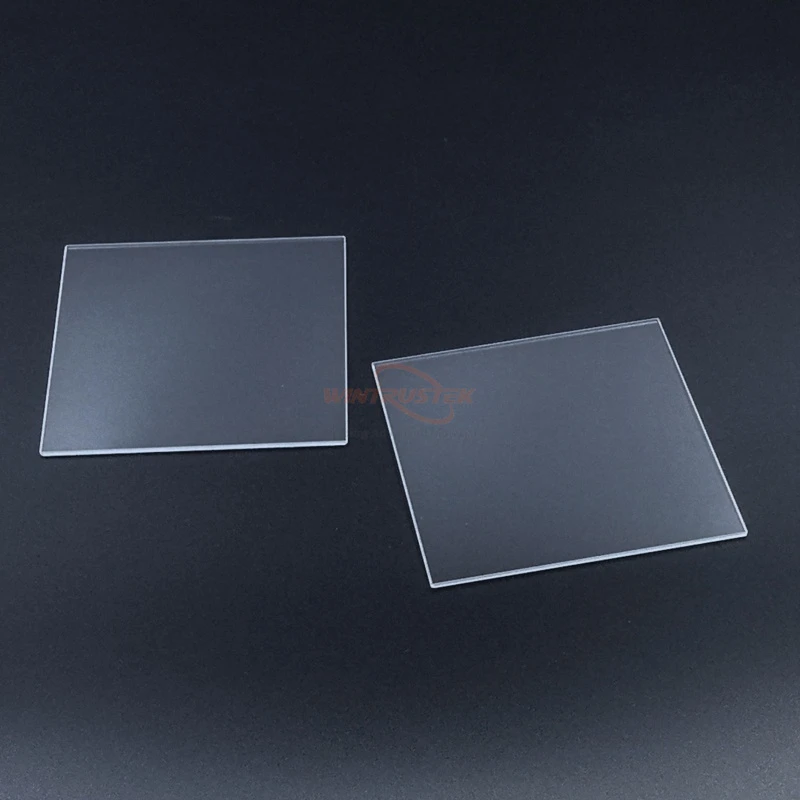

The Ideal for UV, IR, and Visible Light 99.99% High Performance Quartz Plate is supplied as a precision glass plate / sheet made from Quartz. Typical applications: Chemical, Ceramic, Glass and Semiconductor. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Quartz |
|---|---|
| Type | Quartz Plate |
| Application | Chemical, Ceramic, Glass, Semiconductor |
| Model NO. | WTK-Quartz |
| Density | 2.2g/cm3 |
| Color | Transparent |
| Flexural Strength | 67 MPa |
| Compressive Strength | 1100 MPa |
| Thermal Conductivity | 1.4 W/M.K |
| Index of Refraction | 1.4585 |
| Supplier | Xiamen Wintrustek Advanced Materials Co., Ltd. |
Technical data
| Typical Grades | JGS1, JGS2, and JGS3 |
|---|
| Properties | Value |
|---|---|
| Purity | 99.99% |
| Color | Transparent |
| Density (g/cm3) | 2.20 |
| Compressive Strength (MPa) | 1100 |
| Flexural Strength (MPa) | 67 |
| Mohs Hardness | 5.5 |
| Thermal Conductivity (W/m·K) | 1.4 |
| Thermal Expansion Coefficient (cm/cm·°C) (20-350°C) | 5.5×10-7 |
| Specific Heat (J/kg.°C) | 670 |
| Max.Working Temperature (ºC) | 1200 |
| Softening Temperature (ºC) | 1600 |
| Melting Point (ºC) | 1750 |
| Index of Refraction | 1.4585 |
What to specify when you request a quote
- Material — listed as “Quartz”; name the glass or quartz grade.
- Outline and thickness — give outline, thickness and tolerances.
- Holes, slots and features — dimension every hole and its position tolerance on the drawing.
- Edges — state edge finish and chamfer.
- Surface — state polish and flatness where they matter.
