Application: Stem Boiler. Model: 8284.
Overview

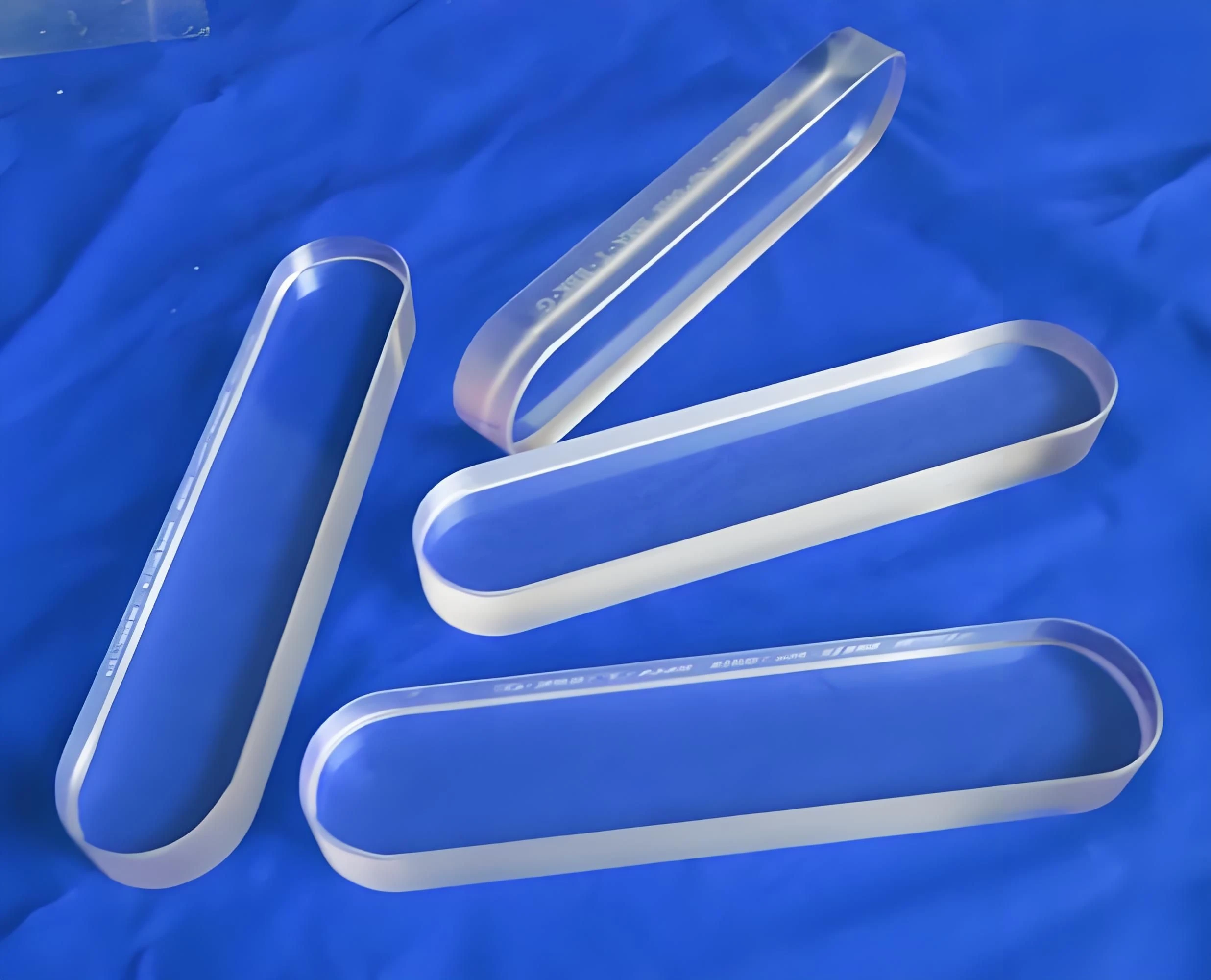

The Industrial Sight Gauge Glass Borosilicate Level Gauge Glass Plate & Tube is supplied as a sight / viewing glass made from Borosilicate Glass. Listed geometry: plate shape. Optical / electrical data: sheet resistance ≤16 MPa. Temperature ≤450℃. Typical applications: Liquid level observation of steam boilers. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Borosilicate Glass |
|---|---|
| Shape | Plate |
| Application | Liquid level observation of steam boilers, |
| Usage | Stem Boiler |
| Model NO. | 8284 |
| Head Code | Plate |
| Connection | Sealing |
| Materials | Borosilicate Glass |
| Max Pressure Resistance | ≤16 MPa |
| Max Temperature Resistance | ≤450℃ |
| Width 44mm | 186*50*22mm |
| Width 34mm | 218*40*33mm |
| Width 50mm | 280*34*22mm |
| Supplier | Jinan Everest Glass Company Limited. |
Technical data
| 17mm Thickness Series (Width: 34mm) | 22mm Thickness Series | 33mm / 34mm Thick High-Pressure Series | |
| 140*34*17mm | Width 44mm: | 186*50*22mm | 140*40*33mm |
| 165*34*17mm | 160*44*22mm | 190*50*22mm | 165*40*33mm |
| 190*34*17mm | 165*44*22mm | 216*50*22mm | 190*40*33mm |
| 218*34*17mm | 186*44*22mm | Width 34mm: | 218*40*33mm |
| 250*34*17mm | 190*44*22mm | 190*34*22mm | 218*43*34mm |
| 280*34*17mm | 218*44*22mm | 218*34*22mm | |
| 320*34*17mm | Width 50mm: | 280*34*22mm | |
| 340*34*17mm | 120*50*22mm | 320*34*22mm | |
| 370*34*17mm | 160*50*22mm | ||
| 400*34*17mm | 165*50*22mm |
What to specify when you request a quote
- Glass type and thickness — listed as “Borosilicate Glass”; name the glass and thickness.
- Temperature and pressure — listed as “≤16 MPa”; give working temperature, thermal shock and any pressure rating.
- Strengthening and safety — state tempering, lamination or the safety standard.
- Outline and edges — listed as “Plate”; send a drawing with outline, holes and edge finish.
