Product type: Achromatic Lens. Application: Lighting, Medical, Optical, Photography, Astronomy. Model: Achromatic lens.
Overview

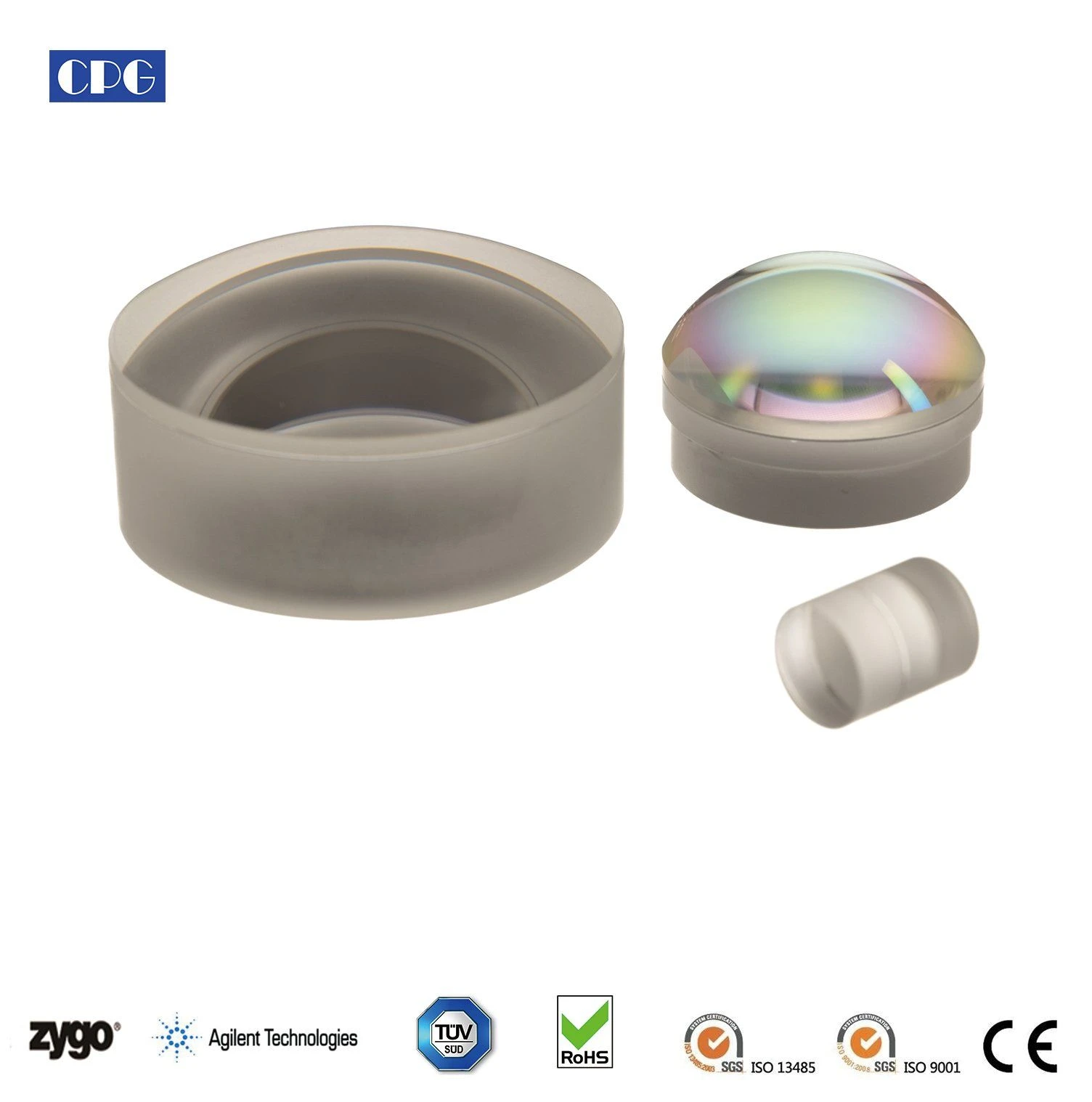

The Infrared Achromatic Optical Lens for Aberration Correction is supplied as an optical lens made from Optical Glass. Listed geometry: diameter 25.0+0.0/-0.1mm, doublet lens shape. Optical / electrical data: transmittance 90%-95%. Coating: Anti-Reflection; surface quality S-D 20-10; flatness RMS<0.02L. It is used in Lighting, Medical, Optical, Photography and Astronomy. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Achromatic Lens |
| Shape | Doublet Lens |
| Transmittance | 90%-95% |
| Coating | Anti-Reflection |
| Surface quality | S-D 20-10 |
| Flatness | RMS<0.02L |
| Usage | Lighting, Medical, Optical, Photography, Astronomy |
| Model NO. | Achromatic lens |
| Lenses Color | Clear |
| Cementing | NOA 61 or structure glue |
| Diameter(mm) | 25.0+0.0/-0.1mm |
| Center thickness CT(mm) | 9.5 |
| Center thickness tolerance(mm) | +/-0.1 |
| Effective focal length EFL(mm) | 75.0 |
| Back focal length BFL(mm) | 70.39 |
| Focal Length Tolerance(%) | +/-2 |
| Radius R1(mm) | 46.44 |
| Radius R2(mm) | 33.77 |
| Radius R3(mm) | -33.77 |
| Radius R4(mm) | -95.94 |
| Centering(mm) | 3 |
| Bevel | protected |
| Clear aperture(mm) | >90% |
| Standard | MIL-PRF-13830B |
| Inspection | Packaging& Shipping |
| Package detail | Optics are packed with Capacitor paper, white paper, custom-made plastic containers etc |
| Supplier | CPG OPTICS LIMITED |
Technical data
| Material: | N-BK7/N-SF5 or customized |
|---|---|
| Diameter(mm): | 25.0+0.0/-0.1mm |
| Center thickness CT(mm): | 9.5 |
| Center thickness tolerance(mm): | +/-0.1 |
| Effective focal length EFL(mm): | 75.0 |
| Back focal length BFL(mm): | 70.39 |
| Focal Length Tolerance(%): | +/-2 |
| Radius R1(mm): | 46.44 |
| Radius R2(mm): | 33.77 |
| Radius R3(mm): | -33.77 |
| Radius R4(mm): | -95.94 |
| Surface Quality: | S-D 40-20 |
| Centering(mm): | 3 |
| Bevel: | protected |
| Clear aperture(mm): | >90% |
| Standard: | MIL-PRF-13830B |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “25.0+0.0/-0.1mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “S-D 20-10”; quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “protected”; state centration and edge chamfer.
- Coating — listed as “Anti-Reflection”; list the band and reflectance or transmission target.
