Product type: as Per Demand. Application: Lighting, Medical, Optical, Photography, Laser System. Model: RAY-XS078#.
Overview

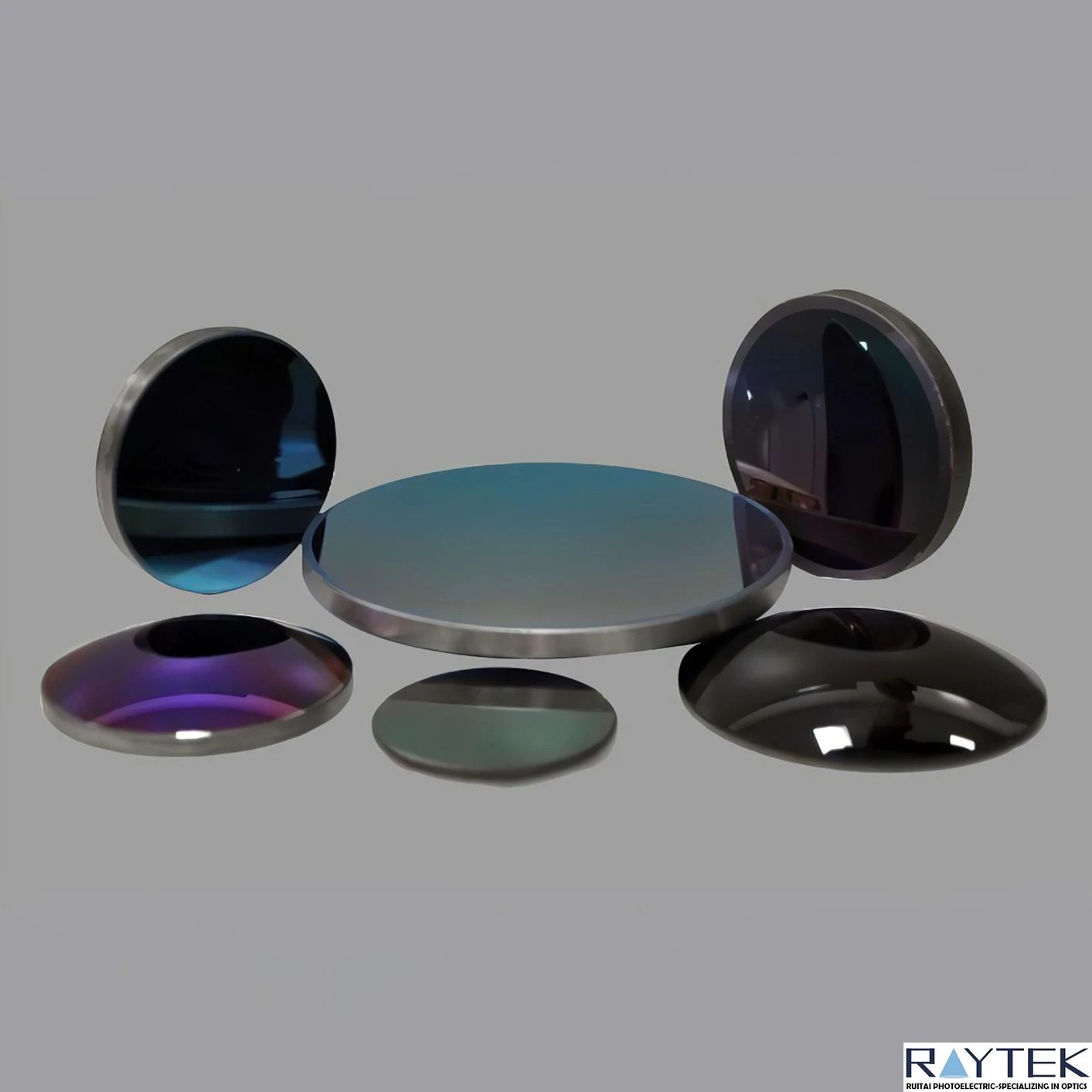

Infrared Germanium Lens/Infrared Ge Lens/IR Germanium Lens/IR Ge Lens: an optical lens in Germanium Wafer (Germanium substrate). Listed geometry: as per demand shape. Optical / electrical data: transmittance 90%-95%. Coating: Uncoating/Uncoating. Typical applications: Lighting, Medical, Optical, Photography and Laser System. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Germanium Wafer |
|---|---|
| Substrate | Germanium |
| Type | as Per Demand |
| Shape | as Per Demand |
| Transmittance | 90%-95% |
| Coating | Uncoating/Uncoating |
| Usage | Lighting, Medical, Optical, Photography, Laser System |
| Model NO. | RAY-XS078# |
| Lenses Color | Clear |
| Size Tolerance | +0/-0.2mm |
| Surface Finish | 60-40 Scratch-Dig |
| Central Thickness Tolerance | +/-0.1mm |
| Main Applying | 1).Infrared thermometers |
| Main Technical Data | Technical Data |
| Unit | mm |
| Main Cooperation Materials Manufacturers | CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,J-FIBER,ETC |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Technical Data | Description & Value |
|---|---|
| Substrate | Germanium |
| Size Tolerance | +0/-0.2mm |
| Central Thickness Tolerance | +/-0.1mm |
| Center Deviation | 3 arc min |
| Aperture | 3 |
| Local Aperture | 0.5 |
| Surface Finish | 60-40 scratch-dig |
| Effective Aperture | More than 90% |
| Coating | Infrared AR coating |
| No. | Dia. | I.F.L | B.F.L | C.T. | E.T. | R.O.C |
| RAY-IGL01# | 25 | 25 | 24.25 | 3.0 | 1.95 | 75.10 |
| RAY-IGL02# | 25 | 30 | 29.25 | 3.0 | 2.13 | 90.12 |
| RAY-IGL03# | 25 | 35 | 34.25 | 3.0 | 2.25 | 105.14 |
| RAY-IGL04# | 55 | 40 | 39.25 | 3.0 | 2.35 | 120.16 |
| RAY-IGL05# | 70 | 50 | 49.25 | 3.0 | 2.48 | 105.19 |
| RAY-IGL06# | 70 | 75 | 74.25 | 3.0 | 2.65 | 225.29 |
| RAY-IGL07# | 85 | 100 | 99.25 | 3.0 | 2.74 | 300.39 |
| RAY-IGL08# | 85 | 150 | 149.25 | 3.0 | 2.83 | 450.38 |
| RAY-IGL09# | 100 | 250 | 249.25 | 3.0 | 2.90 | 750.97 |
| Other size | Customize |
What to specify when you request a quote
- Material — listed as “Germanium Wafer”; name the glass or crystal.
- Geometry — listed as “+0/-0.2mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “60-40 Scratch-Dig”; quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “+/-0.1mm”; state centration and edge chamfer.
- Coating — listed as “Uncoating/Uncoating”; list the band and reflectance or transmission target.
