Product type: Thin Film Filter. Application: Lighting, Medical, Optical, Photography.
Overview

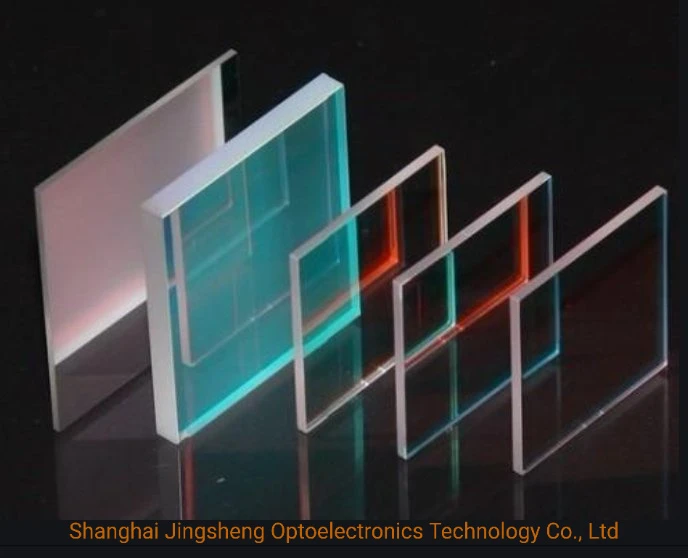

IPL Beauty Machine 560-1200nm Glass Optical Filter is an optical filter made from Glass. Listed geometry: thickness 0.5mm-1mm. Optical / electrical data: wavelength 560nm,1200nm, bandwidth 35nm, transmittance T>90%. Surface quality 60-40 40-20. It is used in Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Thin Film Filter |
| Shape | Customized |
| Transmittance | T>90% |
| Surface Quality | 60-40 40-20 |
| Usage | Lighting, Medical, Optical, Photography |
| Thickness Range | 0.5mm-1mm |
| Color | Transparent |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Application areas | criminal investigation detection multi-band light source, strong light flashlight, fluorescence analysis, iris recognition, surveillance cameras |
| Center wavelength | 560nm,1200nm |
| Bandwidth | 35nm |
| Supplier | Shanghai Jingsheng Optoelectronics Technology Co., Ltd |
What to specify when you request a quote
- Spectral target — listed as “T>90%”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “0.5mm-1mm”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — listed as “60-40 40-20”; quote scratch-dig for imaging paths.
