Product type: Thin Film Filter. Application: Optical. Model: SPF380.
Overview

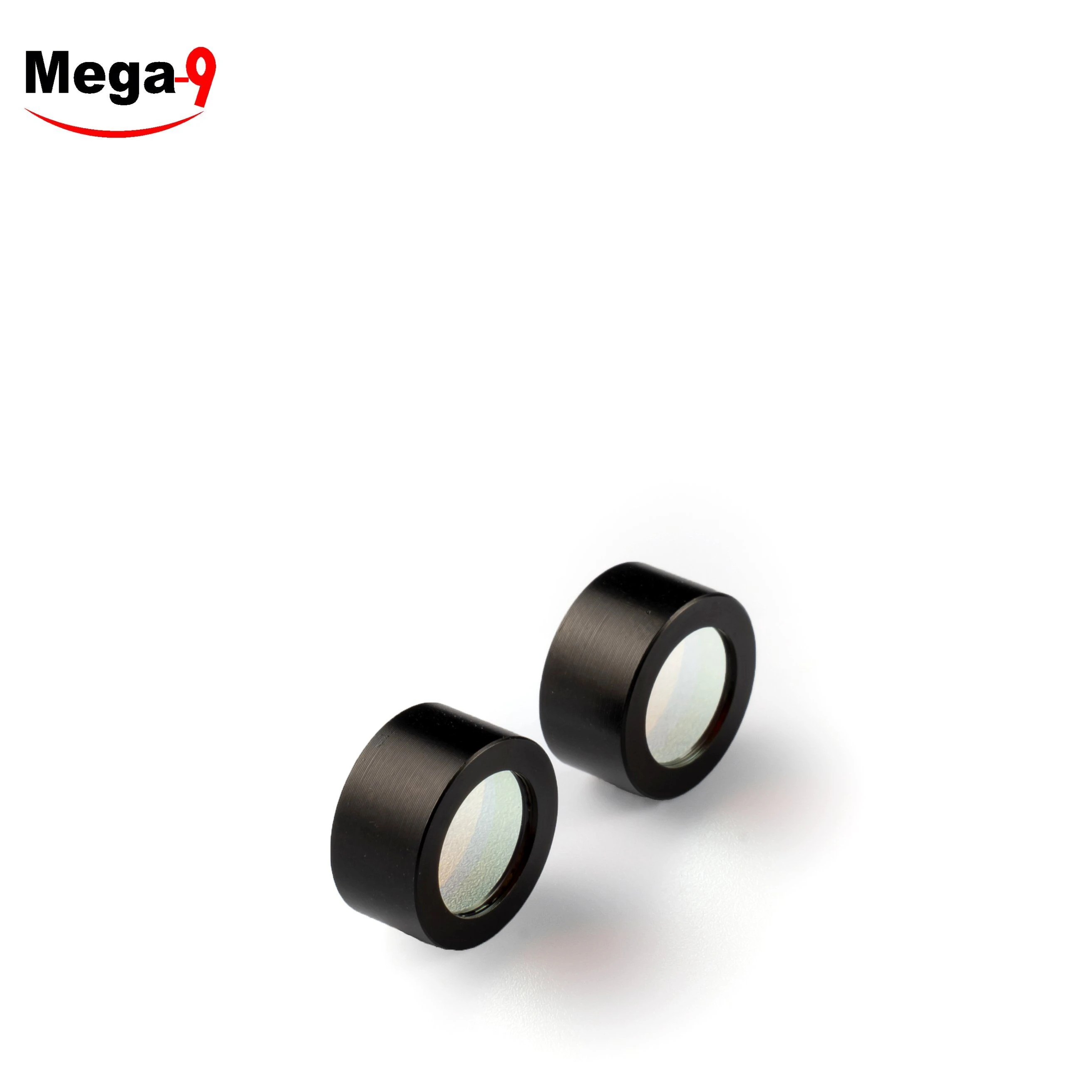

The IR Blocking Optical Filter with 90% Transmittance for UV Curing is supplied as an optical filter made from Optical Glass. Listed geometry: thickness Customized. Optical / electrical data: wavelength 380±5, transmittance ≥90. It is used in Optical. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Thin Film Filter |
| Shape | Customized |
| Usage | Optical |
| Model NO. | SPF380 |
| Thickness Range | Customized |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Cut-on Wavelength (Nm) | 380±5 |
| Passband Range (Nm) | 305-450 |
| Passband Transmittance (%) | ≥90 |
| Blocking Range (Nm) | 640-850 |
| Optical Density (Od) | 2 |
| Supplier | Shanghai Mega-9 Optoelectronic Co., Ltd. |
Technical data
| Name | Cut-off Wavelength | Passband Range | Passband Transmittance | Blocking Range |
| SPF650 | 650±5nm | 400 nm – 640 nm | ≥ 90%(Tavg) | 700 – 1100 nm (OD≥3) |
| SPF400 | 400±5nm | 200 nm – 390 nm | ≥ 85% (Tavg) | 430 – 700 nm (OD≥3) |
| SPF380 | 380±5nm | 305nm – 450nm | ≥ 90%(Tavg) | 640 – 850 nm(OD≥2) |
What to specify when you request a quote
- Spectral target — listed as “380±5”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — listed as “640-850”; give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “Customized”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Optical Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
