Product type: Color Filter Thin Film Filtersupport Customization. Application: Lighting, Medical, Optical, Photography. Model: IR Filter.
Overview

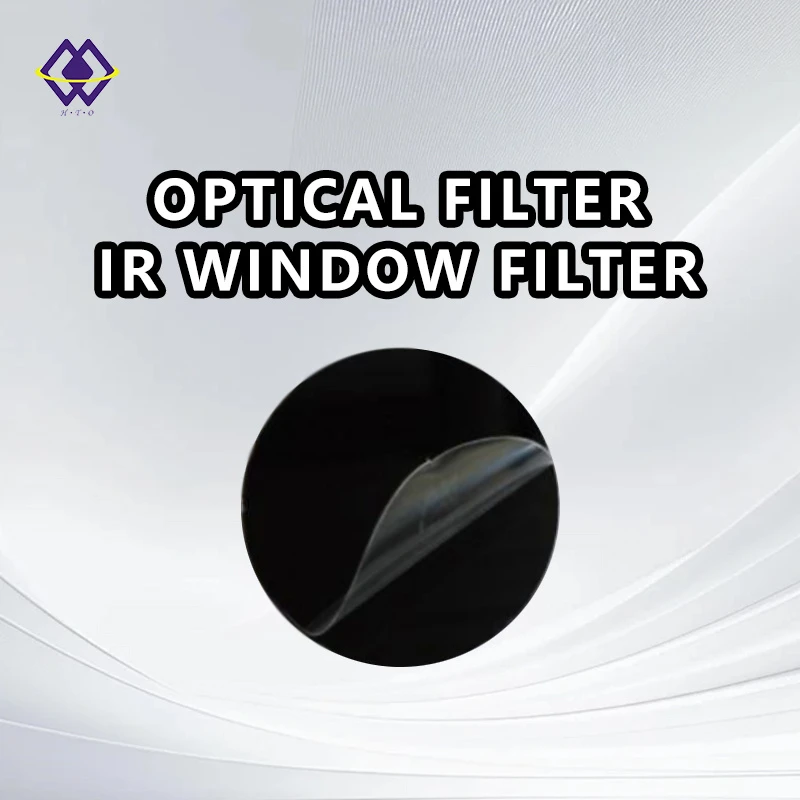

IR Optical High Quality IR Pass Glass Filter is an optical filter made from Plastic. Listed geometry: thickness 0.5-10mm(Support Customization). Optical / electrical data: wavelength Customized, transmittance Customized. It is used in Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Plastic |
|---|---|
| Type | Color Filter Thin Film Filtersupport Customization |
| Shape | Customized |
| Wavelength | Customized |
| Usage | Lighting, Medical, Optical, Photography |
| Thickness Range | 0.5-10mm(Support Customization) |
| Model NO. | IR Filter |
| Color | Transparent Blue Black Purple Green Red |
| Principle | Customized |
| Angle of incidence | Customized |
| Working Band | Customized |
| Broadband | Customized |
| Cut off Depth | Customized |
| Transmittance Rate | Customized |
| Smoothness | 60-40 |
| Supplier | Zhong Shan He Tong Optics Electronic Technology Co.,LTD |
What to specify when you request a quote
- Spectral target — listed as “Customized”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “Customized”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “0.5-10mm(Support Customization)”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Plastic”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
