Product type: Quartz Plate. Application: Chemical, Glass, High Precision Optical Elements and Laser Industry. Model: KGQ302.
Overview

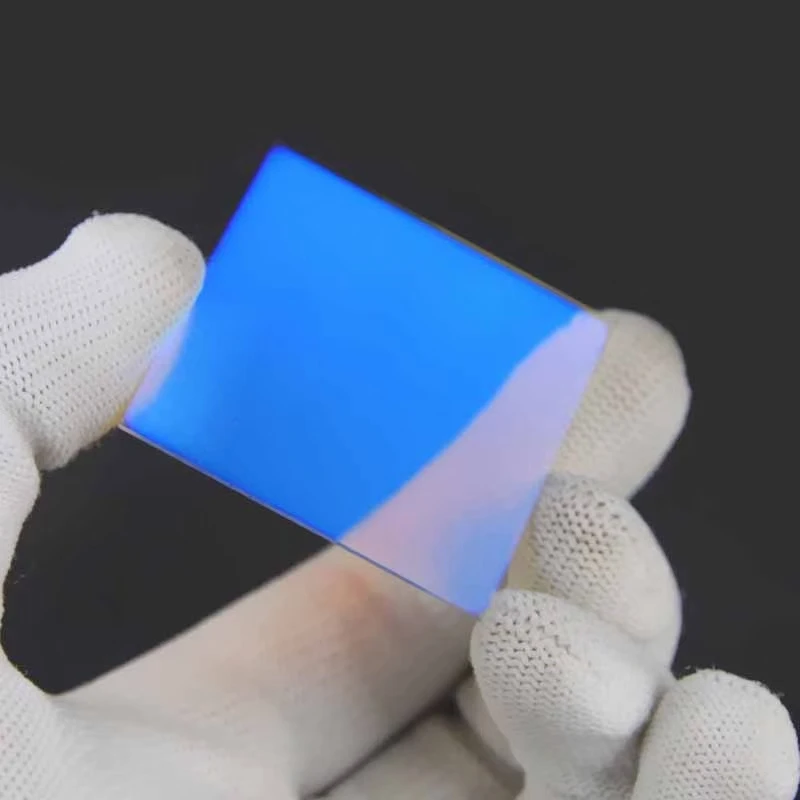

The Jgs1 Jgs2 Jgs3 Fused Silica Quartz Glass Plate Sheet is supplied as a precision glass plate / sheet made from Sic4. Temperature 1200 Degree C. It is used in Chemical, Glass and High Precision Optical Elements and Laser Industry. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Quartz Plate |
|---|---|
| Application | Chemical, Glass, High Precision Optical Elements and Laser Industry |
| Model NO. | KGQ302 |
| Raw Material | Sic4 |
| Working Temperature | 1200 Degree C |
| Air Bubbles | No |
| Fluorescence | No |
| Mohs Hardness | 5.5 |
| Poisson Ration | 0.16 |
| Compressive Strength | 1130n/mm2 |
| Bending Strength | 65-95 |
| Deformation Point | 920℃ |
| Softening Point | 1585℃ |
| Annealing Point | 1060℃ |
| Supplier | Nanyang Kylin Special Glass Co., Ltd. |
What to specify when you request a quote
- Material — listed as “Sic4”; name the glass or quartz grade.
- Outline and thickness — give outline, thickness and tolerances.
- Holes, slots and features — dimension every hole and its position tolerance on the drawing.
- Edges — state edge finish and chamfer.
- Surface — state polish and flatness where they matter.
