Application: Microscope Slide. Model: TYI-7101.
Overview

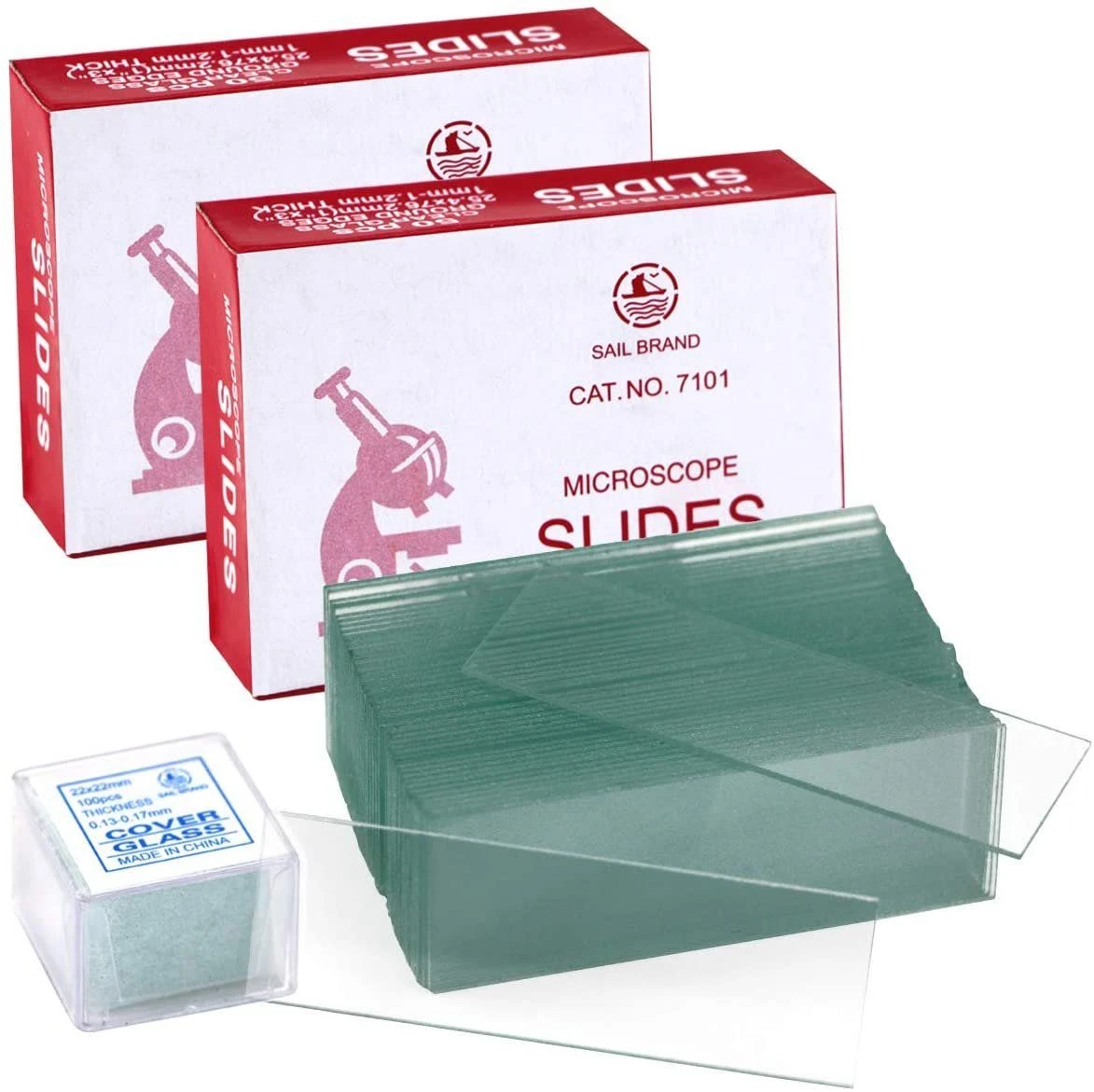

Lab Blank Glass Optical Ground Polished Edges 7101 Microscope Slide with CE ISO: a microscope slide / cover slip made from Float Glass. Listed geometry: size 7101, thickness 1mm. Typical applications: Microscope Slide. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Float Glass |
|---|---|
| Size | 7101 |
| Thickness | 1mm |
| Usage | Microscope Slide |
| Polishing | Polishing |
| Model NO. | TYI-7101 |
| Quantity | 50PCS/Box |
| Cleaning | Be Cleaned |
| Fragile | Yes |
| Shelf Life | 5 Years |
| Custom Packaging | Acceptable |
| Inner Package | 50PCS or 72PCS |
| Supplier | Chongqing New World Trading Co., Ltd. |
Technical data
| Code | Description | Packing |
| TYI-7101 | Polished Edges,Plain | 50pcs/box,50box/ctn |
| TYI-7102 | Cut Edges,Plain | 50pcs/box,50box/ctn |
| TYI-7105 | Polished Edges,Forsted One End On One Side | 50pcs/box,50box/ctn |
| TYI01 | Adhension Microscope Slide | 50pcs/box,50box/ctn |
What to specify when you request a quote
- Material — listed as “Float Glass”; name the glass (soda-lime, borosilicate, quartz) because it fixes UV transmission and chemical resistance.
- Dimensions — listed as “7101”; give dimensions and tolerances.
- Surface and edges — listed as “Polishing”; state edge finish and any frosted or coated areas.
- Cleanliness and packing — listed as “Be Cleaned”; state cleanliness level and packing for lab use.
