Product type: Clear Quartz Pipe. Application: Electric Light Source. Model: TJ-00015110.
Overview

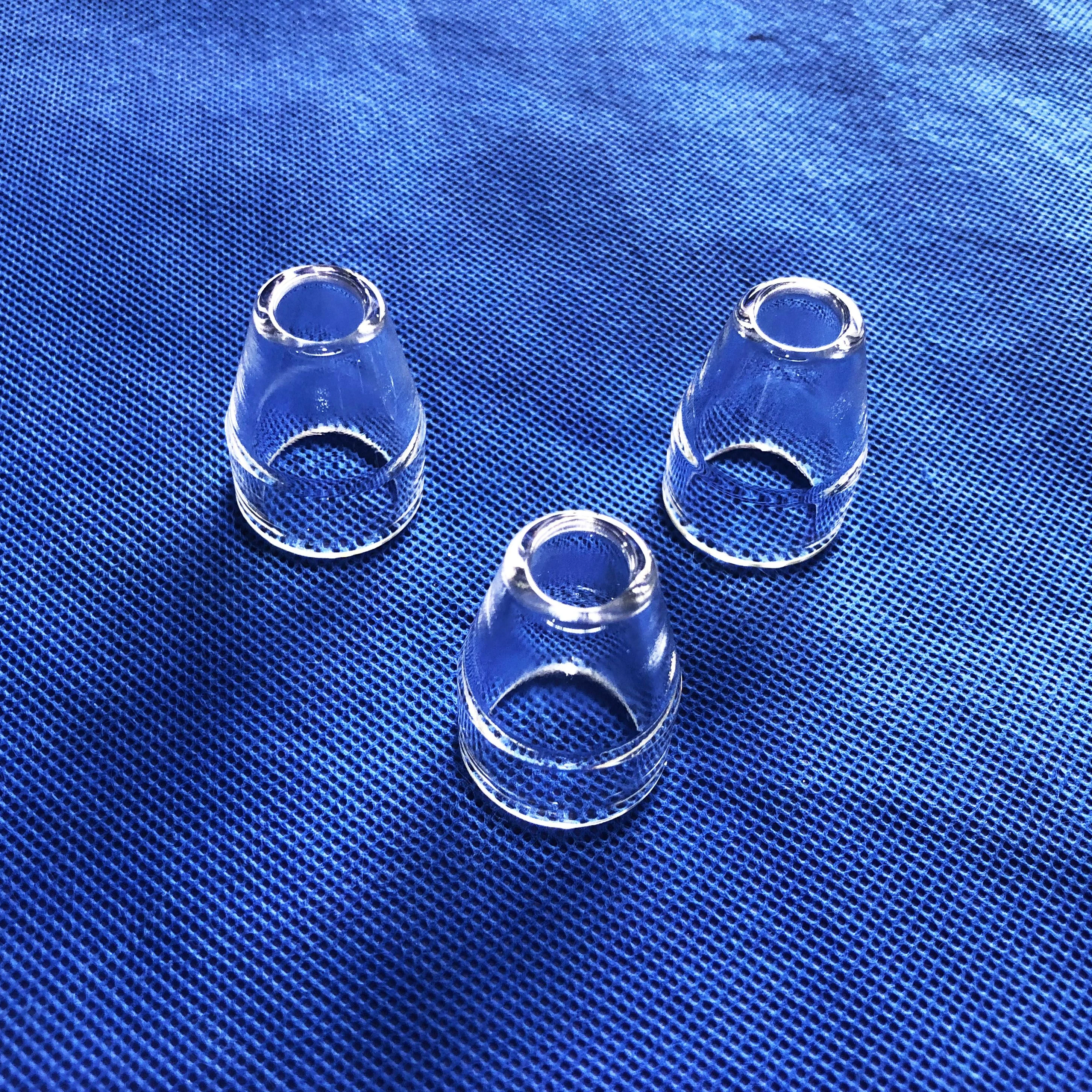

Laboratory Silicon Dioxide Vycor UV Optical Quartz Glass Tube: a precision glass tube / rod made from Quartz Glass. Listed geometry: twin tube shape. Listed for Electric Light Source applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Clear Quartz Pipe |
|---|---|
| Shape | Twin Tube |
| Application | Electric Light Source |
| Model NO. | TJ-00015110 |
| Color | Transparency |
| Materials | Quartz Glass |
| Softening Point | 1680℃ |
| Purity | 99.99% |
| Density | 2.2g/cm3 |
| Ozone Content | Ozone Free |
| Annealing Point | 1210℃ |
| Surface Treatment | Polished |
| Strain Point | 1120℃ |
| Outside Diameter | 2-500 |
| Supplier | Donghai County Tengjun Quartz Products Co., Ltd. |
Technical data
| Purity | >99.99% |
|---|---|
| Density | 2.2(g/cm3) |
| Degree of hardness Moh' scale | 6.6 |
| Melting point | 1732 |
| Working temperature | 1100 |
| Max temperature can reach in a short time | 1450 |
| Acid tolerance | 30 times than Ceramics , 150 times than Stainless steel |
| Visible light transmittance | above 93% |
| UV spectral region transmittance | 80% |
| Resistance value | 10000 times than ordinary glass |
| Annealing point | 1215 |
| Softening point | 1730 |
| Product | Application |
|---|---|
| Standard Clear Quartz Tube | Lighting/Heating/Special light source/Others |
| Opaque Quartz Tube | Heating(home appliances) |
| High Ozone Quartz Tube | Water treatment/Germicidal |
| Ozone Free Quartz Tube | Water treatment/Germicidal |
| Standard UV Block Quartz Tube | Lighting/Special light source/Others |
| Quartz Tube for Metal Halide Lamp | Metal Halide Lamp |
| UV Block Quartz Tube for Automotive Lamp | Automotive Metal Halide Lamp and others |
| Low Melting Point UV Block Quartz Tube | Automotive Lamp |
| Clear Ruby Quartz Tube | Infrared Heating |
| Hydroxyl Free Quartz Tube | Chemical |
| Low Hydroxyl Quartz Tube | Chemical |
What to specify when you request a quote
- Material — listed as “Quartz Glass”; name the glass (borosilicate 3.3, quartz, soda-lime).
- OD, ID and wall — listed as “TJ-00015110”; give outer and inner diameter or wall and their tolerances.
- Length and ends — give length, end finish and any closed or flared ends.
- Straightness and bore — state straightness and bore tolerance for precision tubing.
