Application: Medical Devices. Model: HBR.
Overview

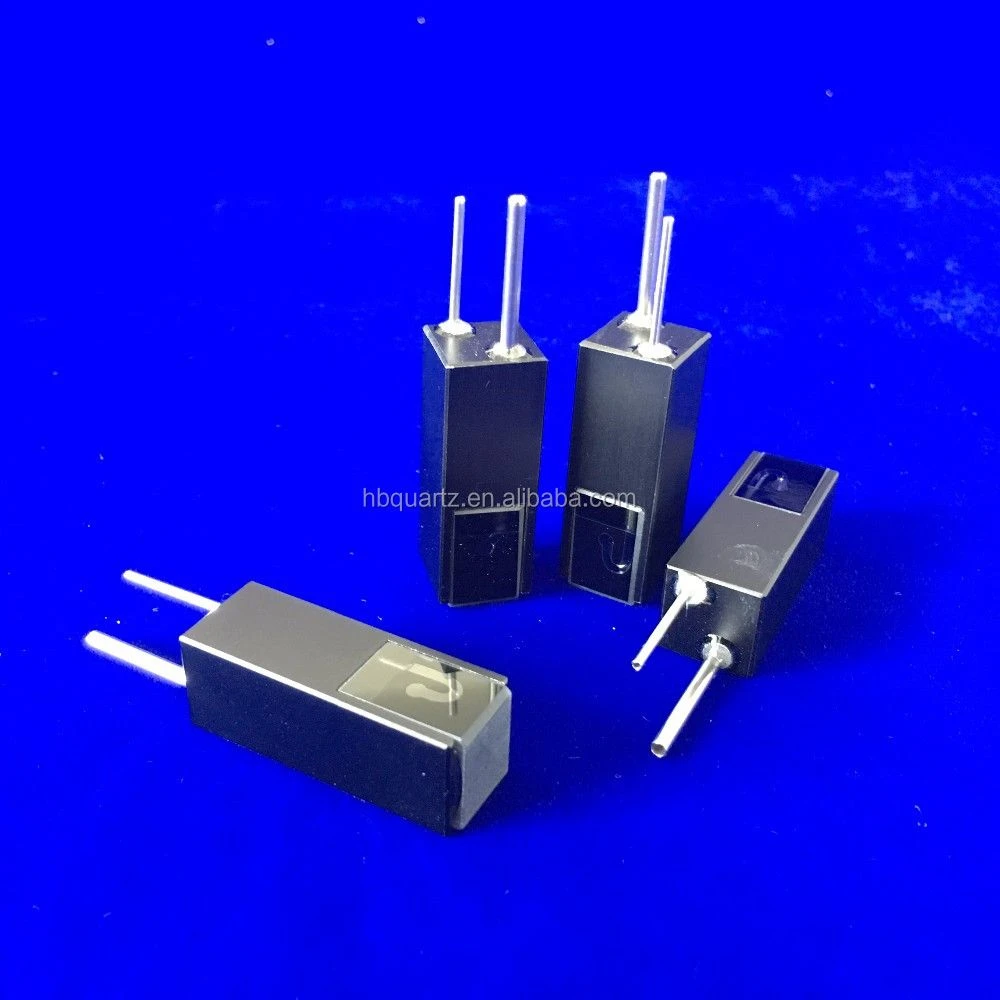

Laboratory Using Standard Q614 Black Quartz Glass Cuvette Cell: an optical cuvette made from Quartz. Optical / electrical data: sheet resistance 1000℃. Temperature 1000℃. Listed for Medical Devices applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Quartz |
|---|---|
| Application | Medical Devices |
| Usage | Used to Hold Reference Solution and Sample Solutio |
| Ceramic Tube & Rod | Quartz |
| Model NO. | HBR |
| Length | 1 inch |
| Temperature Resistance | 1000℃ |
| Product Name | Q614 Black Quartz Glass Cuvette Cell |
| Color | Clear |
| Density | 2.21/Cm3 |
| Keyword 1 | Cuvette |
| Keyword 2 | Quartz Cuvette |
| Keyword 3 | Quartz Flow Cuvette |
| Purity | 99.9% |
| ISO 9001 | 2015 and IATF 16949 |
| ISO9001 | 2015 Quality Management System |
| Period of validity | from2024.10.17 to 2027.10.25 |
| Date | MAY .08.2026 |
| Supplier | Lianyungang Highborn Technology Co., Ltd. |
Technical data
| Property Content | Unit | Property Index | |
| (20℃)Density | g/cm3 | 2.23 | |
| Strain temperature | ℃ | 520 | |
| Annealing temperature | ℃ | 560 | |
| Softening temperature | ℃ | 820 | |
| the refractive index | 1.47 | ||
| Light transmittance(2mm) | % | 92 | |
| Elastic modulus | KN/mm2 | 67 | |
| Tensile strength | N/mm2 | 40-120 | |
| Thermal expansion coefficient(20-300℃) | K−1 | 3.3×10−6 | |
| Specific heat | J/g.K | 0.9 | |
| Thermal conductivity | W/m.K | 1.2 |
What to specify when you request a quote
- Material — listed as “Quartz”; name the glass (soda-lime, borosilicate, quartz) because it fixes UV transmission and chemical resistance.
- Dimensions — listed as “1 inch”; give dimensions and tolerances.
- Surface and edges — state edge finish and any frosted or coated areas.
- Cleanliness and packing — state cleanliness level and packing for lab use.
Engineering guides for this part
For material grades and coating options, see JGS1 Quartz Glass for UV Optical and Precision Components. For an application example, read Custom Precision Glass for Microfluidic and Biomedical Devices.
FAQ
What is the Laboratory Using Standard Q614 Black Quartz Glass Cuvette Cell made of? expand_more
It is listed as Quartz. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What optical or electrical performance does it have? expand_more
Listed values: sheet resistance 1000℃. Confirm the values at your operating wavelength, angle and temperature when you request a quote.
Where is this optical cuvette used? expand_more
Listed applications: Medical Devices.
What should I include in a quote request? expand_more
Include material, dimensions, surface and edges and cleanliness and packing, plus quantity and a drawing if the part is custom.
