Product type: Quartz Plate. Application: Rubber, Chemical, Construction, Metallurgy, Glass. Model: FW-Heat dissipation substrate.
Overview

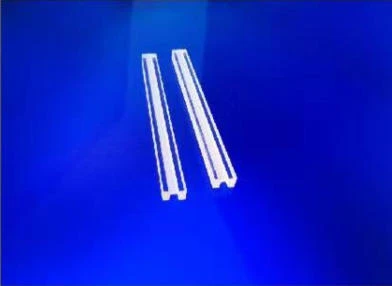

Laser Beam Combiner's Splitting Base, Quartz Plates is a precision glass plate / sheet. Listed for Rubber, Chemical, Construction, Metallurgy and Glass applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Quartz Plate |
|---|---|
| Application | Rubber, Chemical, Construction, Metallurgy, Glass |
| Model NO. | FW-Heat dissipation substrate |
| Heat Conductivity | 1.4 W/M·K |
| Moh's Hardness | 5.5-6.9 |
| Melting Point | 1670℃ |
| Coefficient of Thermal Expansion | 0.55e-6/K |
| Laser beam combiner | used as Medium and low power optical fiber bundling, pump coupling trough, positioning substrate, and splitting base. |
| Supplier | Jiaozuo Commercial Finewin Co., Ltd. |
Technical data
| Item | data |
|---|---|
| Material | Quartz |
| 20°C Density (g/cm3) | 2.2 |
| Softening point(°C) | 1670 |
| Annealing point(°C) | 1210 |
| Deformation point(°C) | 1110 |
| Heat conductivity (W/m·K) | 1.4 |
| Coefficient of thermal expansion | 0.55e-6/K |
What to specify when you request a quote
- Material — name the glass or quartz grade.
- Outline and thickness — give outline, thickness and tolerances.
- Holes, slots and features — dimension every hole and its position tolerance on the drawing.
- Edges — state edge finish and chamfer.
- Surface — state polish and flatness where they matter.
