Product type: Thin Film Filter. Application: Lighting, Medical, Optical, Photography, Laser Applications.
Overview

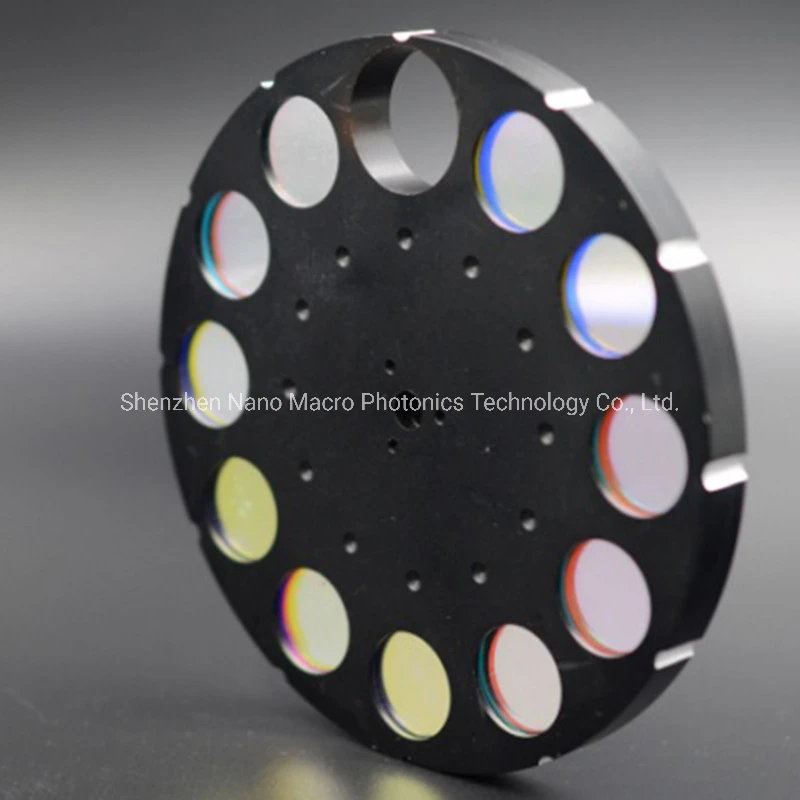

Laser Rangefinder Optical Filter Narrow Bandpass Filter 635nm/808nm/905nm: a bandpass filter made from Glass. Listed geometry: thickness Customized. Listed for Lighting, Medical, Optical, Photography and Laser Applications applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Thin Film Filter |
| Shape | Customized |
| Usage | Lighting, Medical, Optical, Photography, Laser Applications |
| Color | Customized |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Thickness Range | Customized |
| Supplier | Nano Macro Optics Co.,Ltd. |
Technical data
| Materials | Glass (K9,BK7,B270,D263T,JGS1,etc.) |
|---|---|
| CWL | 808±5nm or custom |
| FWHM | 15±5nm or custom |
| Transmittance | T>90% or custom |
| Blocking range | 350-1100nm |
| Product Size | 80x80mm or custom |
| Thickness | customized |
| Transmittance in blocking range | OD2-OD6 |
What to specify when you request a quote
- Spectral target — state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “Customized”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
