Model: yuanda.
Overview

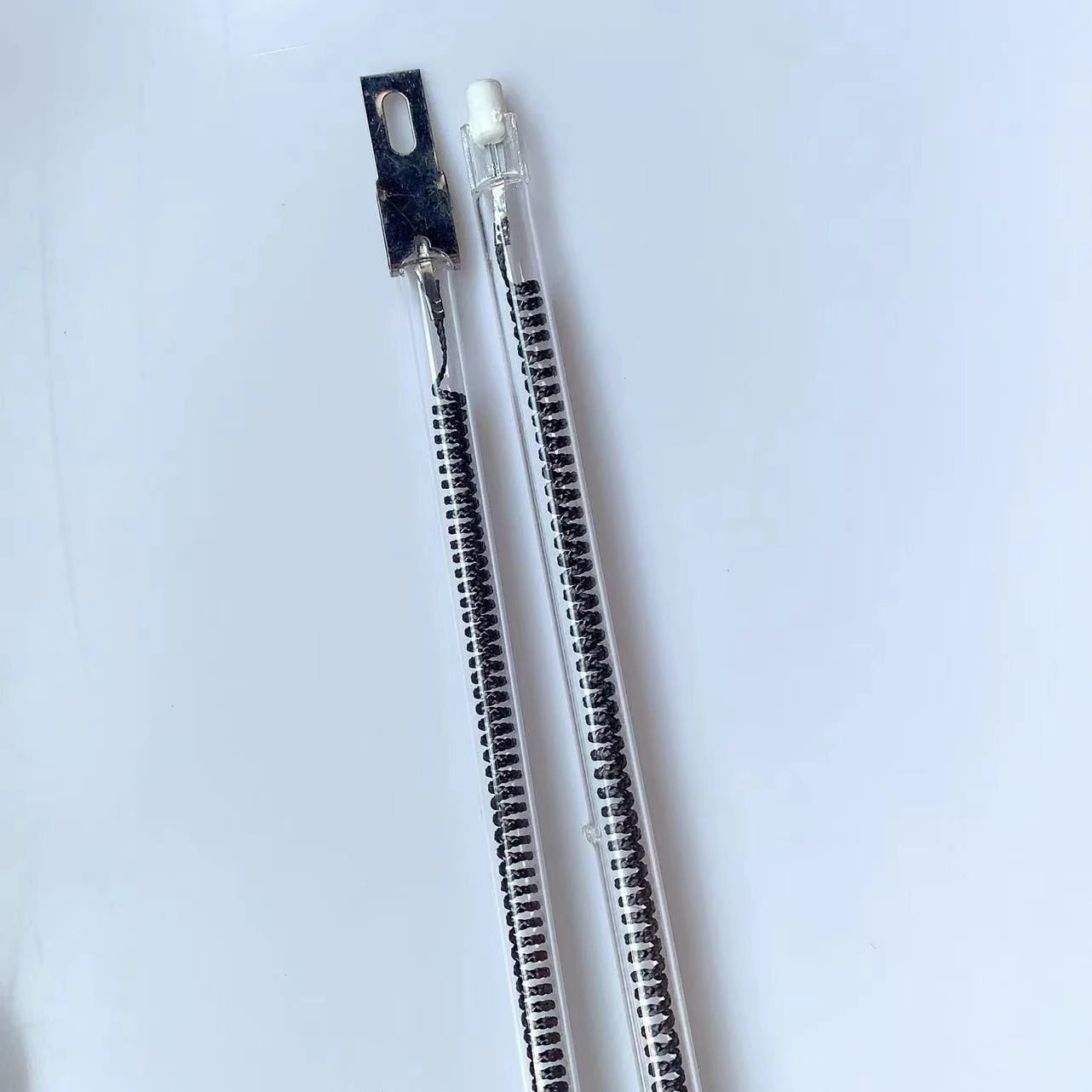

Latest Design Clear Quartz Tube Carbon Fiber Infrared Heating Lamp for Food: a quartz heating / UV lamp. Listed geometry: diameter 8-25mm. Temperature <3000k. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | straight /round shape or others |
|---|---|
| Model NO. | yuanda |
| Bulb Type | T |
| Power | 100–5000W |
| Base Type | R7S |
| Applicable Scope | Home Site&Office |
| Input Voltage | 110—480V |
| Color | Warm White |
| With Light Source | With Light Source |
| Light Source | Carbon |
| Color Temperature | <3000k |
| Reflector | half white coated, gold,ruby,clear |
| Voltage | 110V-480V |
| Length | 100-3000mm |
| Diamter | 8-25mm |
| Healted length | 50-1500mm |
| Filament temp | 1100-2600ºC |
| Supplier | Lianyungang Yuanda Quartz Product Co., Ltd. |
What to specify when you request a quote
- Material — name the glass (borosilicate 3.3, quartz, soda-lime).
- OD, ID and wall — listed as “yuanda”; give outer and inner diameter or wall and their tolerances.
- Length and ends — listed as “100-3000mm”; give length, end finish and any closed or flared ends.
- Straightness and bore — state straightness and bore tolerance for precision tubing.
