Product type: Silk-Screen Printing Glass. Application: Furniture, Door, Building, Window. Model: 3-8mm. Function: Silk Screen Glass.
Overview

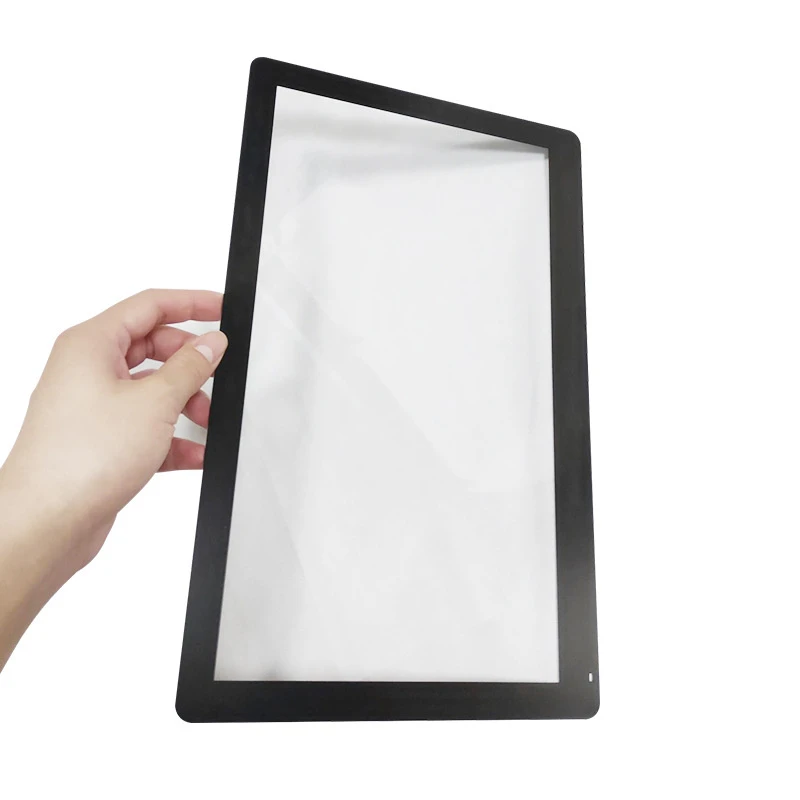

The Manufacture Custom Optical Silk Screen Printing Tempered Bent Glass 3mm/4mm/5mm/6mm/8mm for Display/Window/Screen & etc Price is supplied as a display / touchscreen cover glass. Listed geometry: plate shape. Listed for Home Appliance applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Silk-Screen Printing Glass |
|---|---|
| Shape | Plate |
| Application | Home Appliance |
| Usage | Furniture, Door, Building, Window |
| Model NO. | 3-8mm |
| Structure | Solid |
| Moh's Hardness | 10 |
| Function | Silk Screen Glass |
| Transparency | Transparent |
| Processing Method | Surface Coating |
| Preparation Process | Vapor Deposition |
| Color | Clear, Bronze, Green, Blue, Red, Yellow,Pink… |
| Can Be Customized | Yes |
| Customizable Process | Groove Cutting,Beveled,Silk Printing and etc |
| Customizable Content | Thickness,Size,Color,Coating |
| Color Customizable | Yes |
| SPECIFICATIONS | Available Color |
| Supplier | Qingdao Tsing Glass Co., Ltd. |
Technical data
| Available Color | clear, bronze, euro gray, F green, light green, dark blue, light blue etc. |
|---|---|
| Glass Processing | Silkscreen Printing & Toughening. |
| Thickness | 3mm; 4mm; 5mm; 6mm; 8mm; 10mm, 12mm etc. |
| Size | 914mmx914mm, 1220x914mm, 1220mmx1830mm, 1524x2134mm, 1830x2440mm, 2134x3300mm, 3660x2140mm/2440mm etc., also can do the processing sizes as per customer's requirement; |
| Fabricated Size | any shape, any size as per your requirements. |
| Other Processing | safety film, tempered, bent, framing etc. |
| Edge Work | clean cut, seam edge, matte, flat/pencil polish edge, bevel edge, drilled hole, water jet cutting etc. |
| Raw Material Glass | float glass, acid etched glass, pattern glass. |
| Packing | paper interleaved or powder spraying, safety plywood crates packing with iron strips. |
What to specify when you request a quote
- Glass type and thickness — name the glass (soda-lime, aluminosilicate, borosilicate) and thickness.
- Strengthening — state thermal tempering or chemical strengthening and the required surface compression or impact rating.
- Printing and coatings — listed as “Furniture, Door, Building, Window”; list silk-screen colours, windows, and any AR / AG / AF coating.
- Outline and edges — listed as “Plate”; send a drawing with cut-outs, holes and edge finish.
- Optical requirements — give transmission, haze or gloss targets for the viewing area.
