Product type: Rectangular Prism. Application: Beam Dispersion, Beam Split, Laser, Astronomy, Imaging, Detection, etc. Model: OP-0090.
Overview

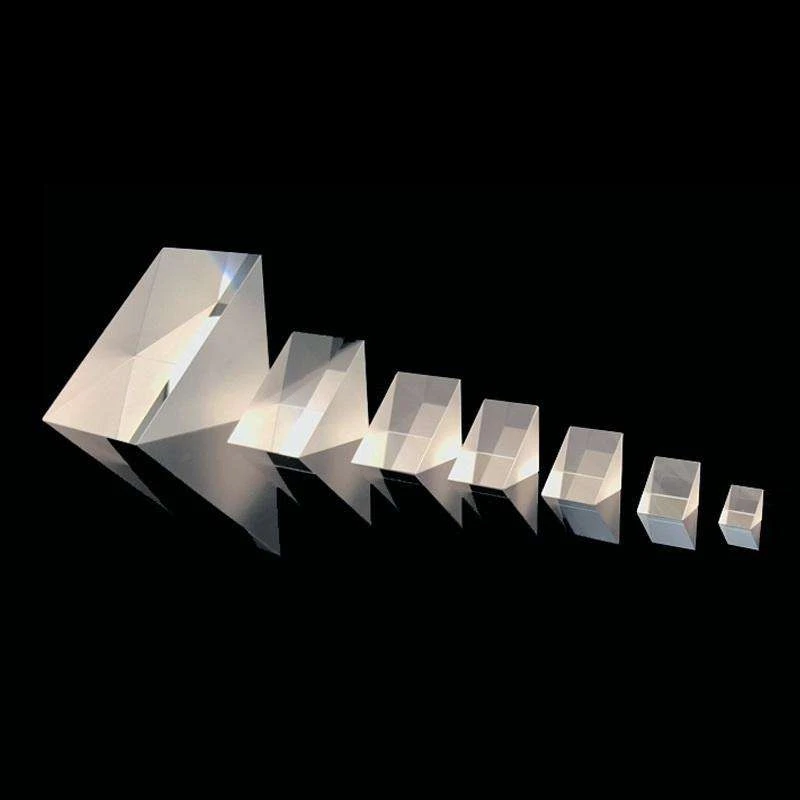

Mini Prism 0.5mm 1mm 2mm 3mm Right Angle Prism 45 Degree 90 Degree Bk7 Right Angle Prism with Al AG Coated is an optical prism in Glass (Znse Prisms substrate). Listed geometry: pentagonal prism shape. Supplied uncoated; surface quality 40-20 Scratch-Dig or Custom Manufacturing; flatness Lambda/10 at 632.8 Nm Over The Clear Aperture. Typical applications: Medical Instrument. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Substrate | Znse Prisms |
| Type | Rectangular Prism |
| Shape | Pentagonal Prism |
| Surface Quality | 40-20 Scratch-Dig or Custom Manufacturing |
| Application | Medical Instrument |
| Usage | Beam Dispersion, Beam Split, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | OP-0090 |
| Surface Flatness | Lambda/10 at 632.8 Nm Over The Clear Aperture |
| Coating Type | Uncoated |
| Supplier | C-Laser (Taicang) Material Technology Co., Ltd. |
Technical data
| Material | Zinc selenide(ZnSe) |
|---|---|
| Dimension tolerance | +0/-0.1mm |
| Angle Tolerance | 3″~3′ or custom |
| Surface quality (scratch & dig) | 60-40, 40-20, or better |
| Size | cutom |
| Color | Transparent |
| Coating | AR coating or cutom |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20 Scratch-Dig or Custom Manufacturing”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Uncoated”; list the band and reflectance or transmission target.
Engineering guides for this part
For material grades and coating options, see Infrared Window Glass: Material Options for Optical Sensors & Parts. How parts like this are machined and finished is covered in Optical Glass Polishing for High Clarity Surfaces. For an application example, read Infrared Window Glass for Smart Home Appliance Sensors. Before sending a drawing, check Design Guide for Holes, Slots, and Edges in Custom Glass Parts. A related standard product is Infrared Windows.
