Product type: Optical Wedge Prism. Application: Beam Dispersion, Beam Split, Laser, Astronomy, Imaging, Detection, etc. Model: RAY-XS044#.
Overview

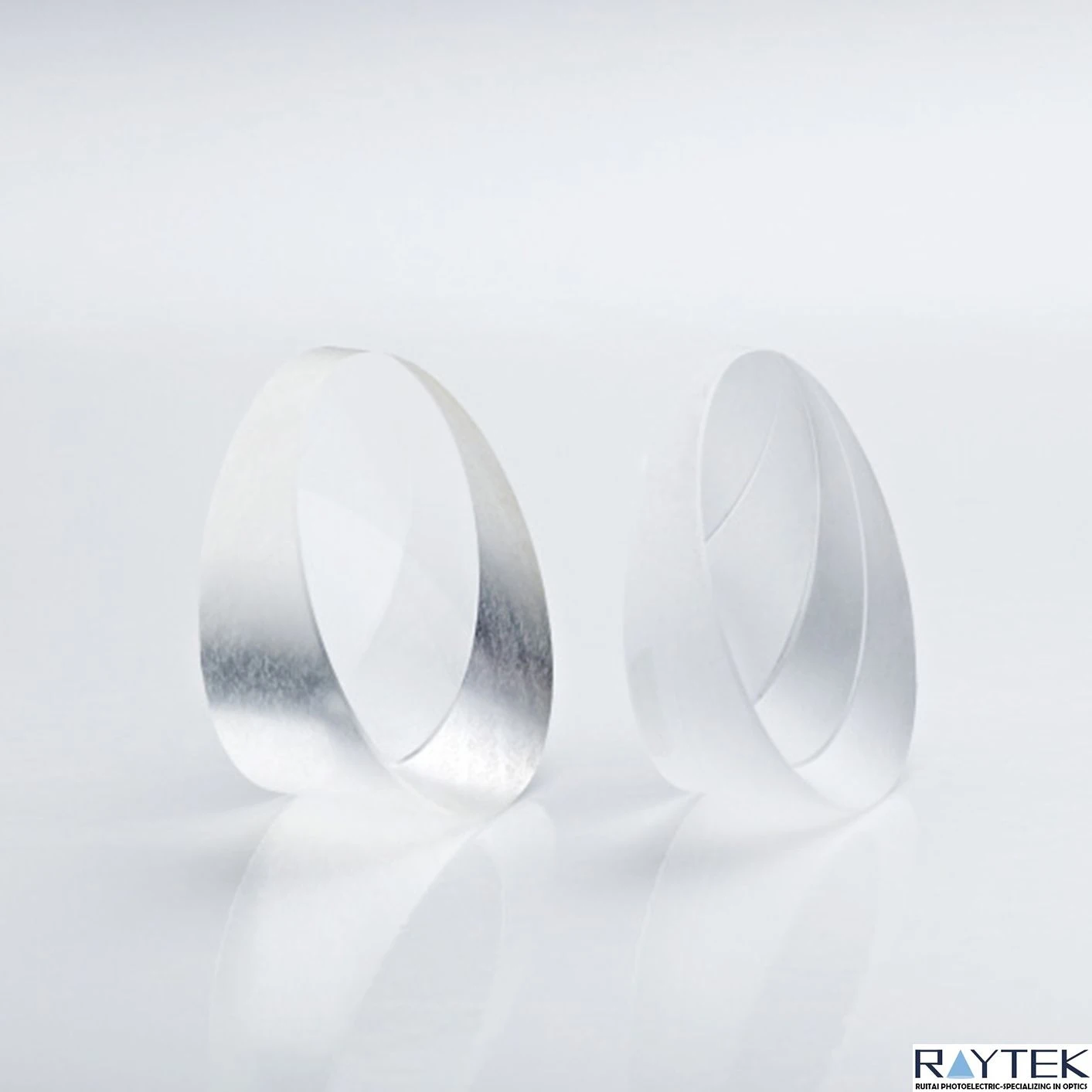

N-Bk7 Wedge Prism/K9 Wedge Prisms/Optical Wedge Prisms/Optical Glass Prism: an optical prism made from Glass. Listed geometry: wedge prism shape. Coating: Uncoated or AR /Metal/HR coating–Unpon Request; surface quality 60/40 (General), 10/5 (High Precision); flatness λ/2(General), λ/10 (High Precision). Listed for Medica Instrument, Digit Device and Scientific applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Optical Wedge Prism |
| Shape | Wedge Prism |
| Coating | Uncoated or AR /Metal/HR coating–Unpon Request |
| Surface Quality | 60/40 (General), 10/5 (High Precision) |
| Clear Aperture | >80% (small size),>95%(large size) |
| Application | Medica Instrument, Digit Device, Scientific |
| Usage | Beam Dispersion, Beam Split, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | RAY-XS044# |
| Prism Substrates | UV Fused Silica |
| Optional I | UV Fused Silica |
| Optional II | Equivalent UV Fused Silica |
| Dimension Tolerance (mm) | +/-0.2 (General), +0/-0.05 (High Precision) |
| Angle Tolerance | 3 arc min. (General), 3 arc sec. (High Precision) |
| Flatness (per 25mm@633nm) | λ/2(General), λ/10 (High Precision) |
| Bevel (mm) | 0.1-0.5 |
| Main Cooperation Materials Manufacturers | CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Optional I: | UV Fused Silicafrom CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
|---|---|
| Optional II: | Equivalent UV Fused SilicaMade in China, C-laser own brands |
| Material: | BK7 Glass or other Optical Glass upon request |
|---|---|
| Dimension Tolerance (mm): | +/-0.2 (General), +0/-0.05 (High Precision) |
| Angle Tolerance: | 3 arc min. (General), 3 arc sec. (High Precision) |
| Clear Aperture: | >80% (small size),>95%(large size) |
| Surface Quality: | 60/40 (General), 10/5 (High Precision) |
| Bevel (mm): | 0.1-0.5 |
| Coating: | Uncoated or AR /Metal/HR coating–Unpon Request |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — listed as “+/-0.2 (General), +0/-0.05 (High Precision)”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “60/40 (General), 10/5 (High Precision)”; quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “0.1-0.5”; state centration and edge chamfer.
- Coating — listed as “Uncoated or AR /Metal/HR coating–Unpon Request”; list the band and reflectance or transmission target.
