Product type: Infrared Filter. Application: Optical. Model: SK-NDFAJ-77.
Overview

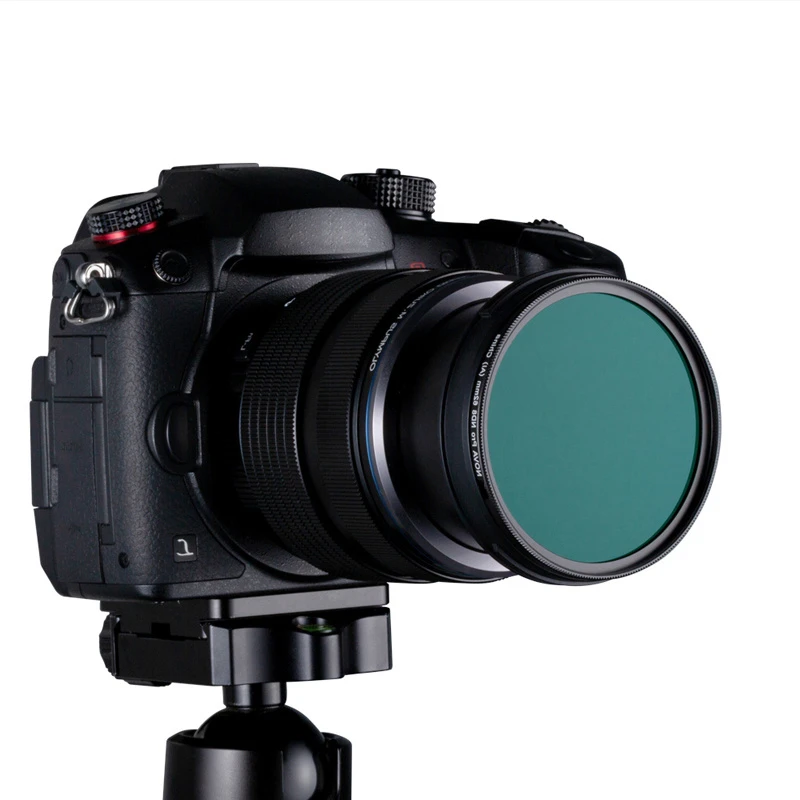

ND8 Optical Glass Neutral Density Filter 77mm 3-Stop for Nikon Canon Sony Pentax Olympus Sk-Ndfaj-77 is a neutral density filter made from Glass. Listed geometry: diameter 37mm,40.5mm,43mm,46mm,49mm,52mm,55mm,58mm,62mm,67m, thickness 5mm, round shape. Coating: 18-Layer Nano Coating, Waterproof, Anti-Dust. It is used in Optical. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Infrared Filter |
| Shape | Round |
| Coating | 18-Layer Nano Coating, Waterproof, Anti-Dust |
| Usage | Optical |
| Thickness Range | 5mm |
| Color | Black |
| Model NO. | SK-NDFAJ-77 |
| Principle | Infrared Filter |
| Angle of incidence | Infrared Filter |
| Product Name | 3-Stop 4-Stop 6-Stop |
| Glass Material | Schott B270 Glass |
| Frame Material | Aluminum Alloy |
| Frame Thickness | 5mm |
| Light Reduction | Reduce 3-Stop Light, Allows You to Use Slow Shutte |
| Diameter(mm) | 37mm,40.5mm,43mm,46mm,49mm,52mm,55mm,58mm,62mm,67m |
| Weight | 10g |
| customer reviews | customer evaluation, express our professional recognition |
| Supplier | Shanghai Dutai Imaging Technology Co., Ltd. |
Technical data
| Product Name | 3-stop 4-stop 6-stop 10-stop light reduction ND Filter ND8 ND16 ND64 ND1000 |
|---|---|
| Glass Material | Schott B270 glass |
| Frame Material | Aluminum alloy |
| Frame Thickness | 5mm |
| Coating | 18-layer nano coating, waterproof, anti-dust and scratch-resistant |
| Light reduction | Reduce 3-stop light, allows you to use slow shutter speed |
| Diameter(MM) | 37mm,40.5mm,43mm,46mm,49mm,52mm,55mm,58mm,62mm,67mm,72mm,77mm,82mm,86mm |
| Weight | 10g |
| Package | Plastic case & paper box |
What to specify when you request a quote
- Spectral target — state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “Infrared Filter”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “5mm”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
