Product type: Color Filter. Application: Lighting, Medical, Optical, Photography. Model: RAY-LH410#.
Overview

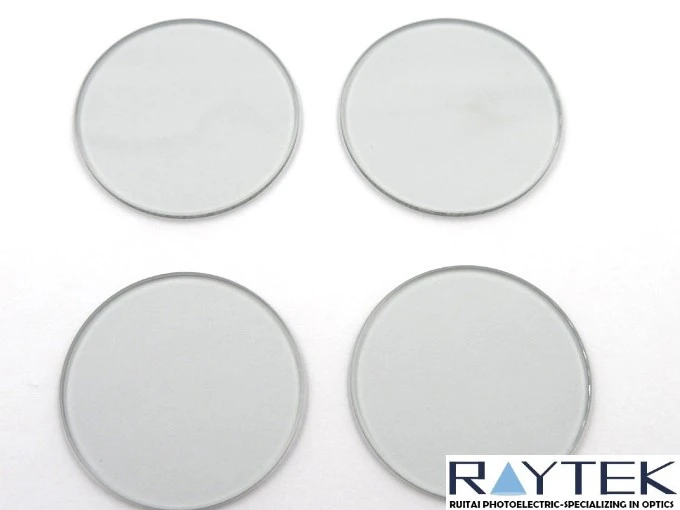

Neutral Gray Density Mirror/Infrared Filter/Optical Filter/Optical Glass is an optical filter made from Glass. Listed geometry: thickness Customized. Optical / electrical data: wavelength 488-694 Nm/700-950nm. Coating: Dielectric Coating; surface quality 40-20 Scratch-Dig or Custom Manufacturing; flatness Lambda/10 at 632.8nm with Power Removed. Typical applications: Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Wavelength Range | 488-694 Nm/700-950nm |
| Surface Quality | 40-20 Scratch-Dig or Custom Manufacturing |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | RAY-LH410# |
| Thickness Range | Customized |
| Color | Customized |
| Surface Flatness | Lambda/10 at 632.8nm with Power Removed |
| Coating Type | Dielectric Coating |
| Product function | 1. Reduce the amount of light. For example, if it is difficult to use a large aperture to shoot in a place with strong light, you can add a neutral gray filter; |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
What to specify when you request a quote
- Spectral target — listed as “488-694 Nm/700-950nm”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “Customized”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — listed as “40-20 Scratch-Dig or Custom Manufacturing”; quote scratch-dig for imaging paths.
