Product type: Tube. Application: Pharmaceutical Packaging. Model: HHK17010311.
Overview

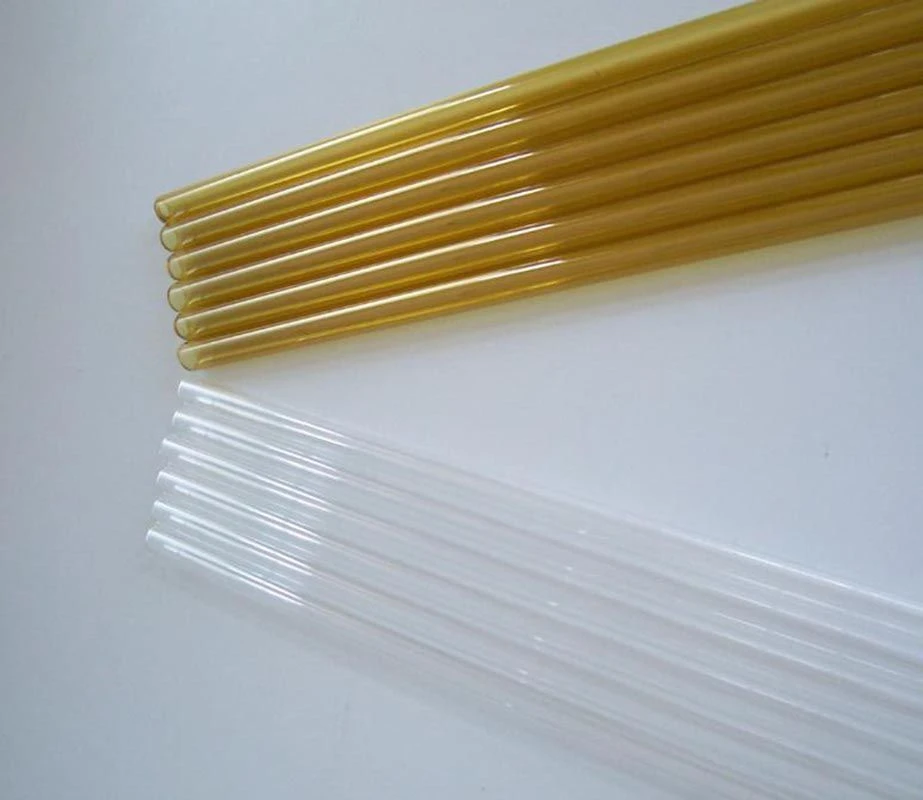

Neutral Pharmacutical Glass Tube Clear and Amber: a precision glass tube / rod made from Glass. Listed geometry: cylinder shape. It is used in Medical. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Tube |
| Shape | Cylinder |
| Application | Medical |
| Usage | Pharmaceutical Packaging |
| Capacity | 5 ml |
| Closure Type | Screw Cap, Spray Pump |
| Model NO. | HHK17010311 |
| Color | Clear |
| Neck Finish | GL18 |
| Logo Printing | Without Logo Printing |
| Recycled | Recycled |
| Flexibility | Hard |
| Technics | Furnace |
| Physical data of COE 7.0 neutral glass tube | No. |
| Chemical data of COE 7.0 neutral glass tube | Description |
| Inner packaging | heat shrink film |
| Outside packaging | 5 layers strong corrugated carton or non-fumigation pallet. |
| Supplier | Jinan Honhai Glass Company Limited |
Technical data
| Physical data of COE 7.0 neutral glass tube: | |||
| No. | Physics Performance | Value | Unit |
| 1 | Coefficient of mean linear thermal expansion(20degree Celsius; 300degree Celsius) | 7.15±0.05 | 10 -6 K -1 |
| 2 | Transformation temperature | 550±15 | degree Celsius |
| 3 | Softening point | 750±10 | degree Celsius |
| 4 | Working point | 1110±20 | degree Celsius |
| 5 | Density at 20degree Celsius | 2.46±0.02 | g/cm 3 |
| Chemical data of COE 7.0 neutral glass tube: | |
|---|---|
| Description | Rate |
| Water resistance to ISO720 | 1 |
| Water resistance to European Pharmacopoeia | 1 |
| Water resistance to USP23 | 1 |
| Acid resistance Class(DIN12116) | 1 |
| Alkali resistance Class(ISO695) | 2 |
| Packaging | ||||
| Inner packaging: heat shrink film Outside packaging: 5 layers strong corrugated carton or non-fumigation pallet. | ||||
| Spec. | Carton sizes (mm) | N.W./CTN (kg) | G.W./CTN (kg) | N.W./20GP (kg) |
| 10.75×0.50×1500 | 230×230×1530 | 22.5 | 24.0 | 7650 |
| 12.75×0.50×1500 | 230×230×1530 | 19.2 | 20.7 | 6528 |
| 14.75×0.55×1500 | 230×230×1530 | 17.7 | 19.2 | 6018 |
| 17.75×0.60×1500 | 230×230×1530 | 15.7 | 17.2 | 5338 |
| 22.50×0.70×1500 | 230×230×1530 | 14.3 | 15.8 | 4862 |
| 16.00×1.0×1500 | 230×230×1530 | 29.3 | 30.8 | 9962 |
| 22.00×1.0×1500 | 230×230×1530 | 21.9 | 23.4 | 7446 |
| 24.00×1.0×1500 | 230×230×1530 | 19.2 | 20.7 | 6528 |
| 30.00×1.2×1500 | 230×230×1530 | 19.6 | 21.1 | 6664 |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass (borosilicate 3.3, quartz, soda-lime).
- OD, ID and wall — listed as “HHK17010311”; give outer and inner diameter or wall and their tolerances.
- Length and ends — give length, end finish and any closed or flared ends.
- Straightness and bore — state straightness and bore tolerance for precision tubing.
