Application: Electronics & Instruments. Model: Customized.
Overview

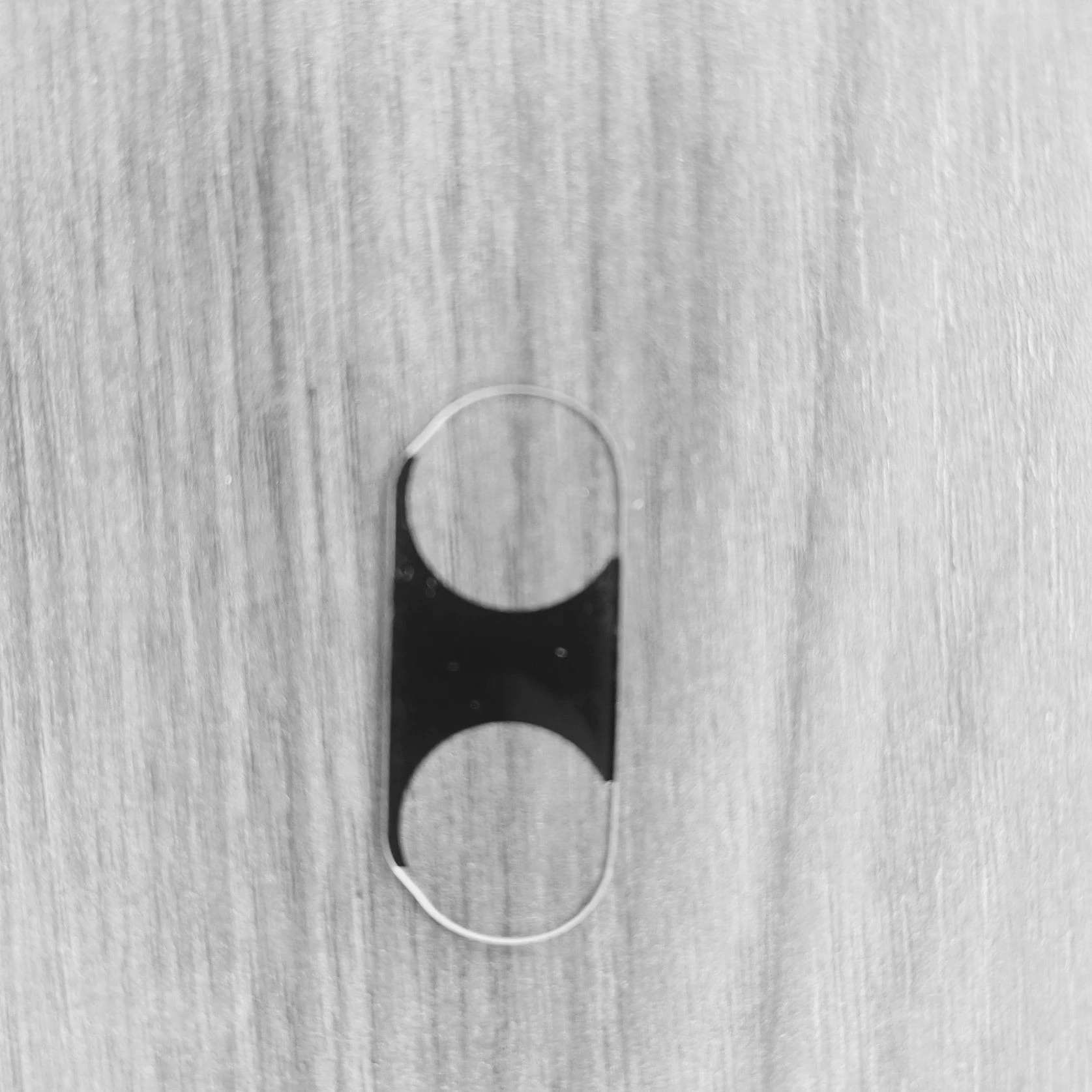

The New Products 0.5-1mm Tempered Glass for Camera Lens Glass with Transmittance Over 98% Double Side Ar Glass Coating and Silk Screen Printing is supplied as a display / touchscreen cover glass. Listed geometry: size Customized According to Customer Drawings, thickness 0.55mm/0.6mm/0.7mm/0.8mm/1.0mm/1.5mm/2.0mm/3mm etc, flat shape. Optical / electrical data: transmittance >94%. Flatness High Class. Listed for Electronics & Instruments applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Flat |
|---|---|
| Transmittance | >94% |
| Flatness | High Class |
| Usage | Electronics & Instruments |
| Model NO. | Customized |
| Appearance | Flat Tempered |
| Standard | GB/T 9963-1998 |
| Steel Degree | Half-Tempered Glass |
| Thickness of Flat Tempered Glass | 0.7-2mm |
| Thickness of Curve Tempered Glass | 0.7-2mm |
| Fragment State | I |
| Technics | Chemical Tempered |
| Glass Silk Screen Color | Black, White, Gray, Blue as Customized |
| Glass Raw Materials | Gorilla/AGC/Dragontail/Panda Glass or Other Brand. |
| Glass Thickness | 0.55mm/0.6mm/0.7mm/0.8mm/1.0mm/1.5mm/2.0mm/3mm etc |
| Glass Shapes | Square, Round, Irregular Graphics, (Customized) |
| Glass Size | Customized According to Customer Drawings |
| Edge Processing | Straight, Round, Beveled, Stepped; Polished, CNC |
| Surface Treatment | AG/Af/Ar Coating |
| Drilling | Acceptable |
| Shipping Way | Commercial Express, Sea Shipping, Air Shipment |
| Tempered | Chemical Tempered |
| Hardness | >7h |
| Keyword | ITO Glass |
| Keyword1 | Ar Glass |
| Tolerance | ±0.05mm |
| DOL | >40um |
| CS | >650MPa |
| Surface hardness | >8H |
| Drop ball test | 225g steel ball drop from 40cm, no crack |
| Single side AR coating | transmittance >94% |
| Thickness of ink layer | two layers 8-12um |
| Packaging | Each glass use double sided protective film and then packed by craft paper then into a wooden crate. |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Product Name | New products 0.5mm, 0.8mm,1.0mm tempered glass for Camera Lens Glass with Transmittance Over 98% Double Side Ar Glass Af Coating and Silk Screen Printing |
|---|---|
| Thickness | 0.33mm, 0.55mm, 0.7mm,0.8mm 1.1mm,1.5mm, 2.0mm, 3.0mm, 4.0mm,5.0mm 6.0mm etc. |
| Shape | rectangular, round, oval or other special irregular shape |
| Edge work | CNC grinding. |
| Hole Drilling | Available diameter should bigger than the thickness |
| Printing | silk-screen printing with black, white, gray, gold, brown, red, yellow, sandblasting effect, etc. (color is RoHS-compliant ) |
| Tempering | EN60598, EN12150, etc.(High security, once tempered glass breakage occurs, the glass could break into small fragments, which are harmless to human body) |
| Coating | AR Coating AF coating AG coating |
| Packing | Protective film, carton box |
| our company equipment |
| 1.Dust free painting room |
| 2.Automatic acid etching producing line |
| 3.Automatic circularly hot bending furnace |
| 4.Finland Tamglass tempering furmance |
| 5.CNC Water jet cutting maching computer controlled processing machine |
What to specify when you request a quote
- Glass type and thickness — listed as “0.7-2mm”; name the glass (soda-lime, aluminosilicate, borosilicate) and thickness.
- Strengthening — listed as “0.7-2mm”; state thermal tempering or chemical strengthening and the required surface compression or impact rating.
- Printing and coatings — listed as “Electronics & Instruments”; list silk-screen colours, windows, and any AR / AG / AF coating.
- Outline and edges — listed as “Flat”; send a drawing with cut-outs, holes and edge finish.
- Optical requirements — listed as “>94%”; give transmission, haze or gloss targets for the viewing area.
