Application: Electronics & Instruments. Model: Customized.
Overview

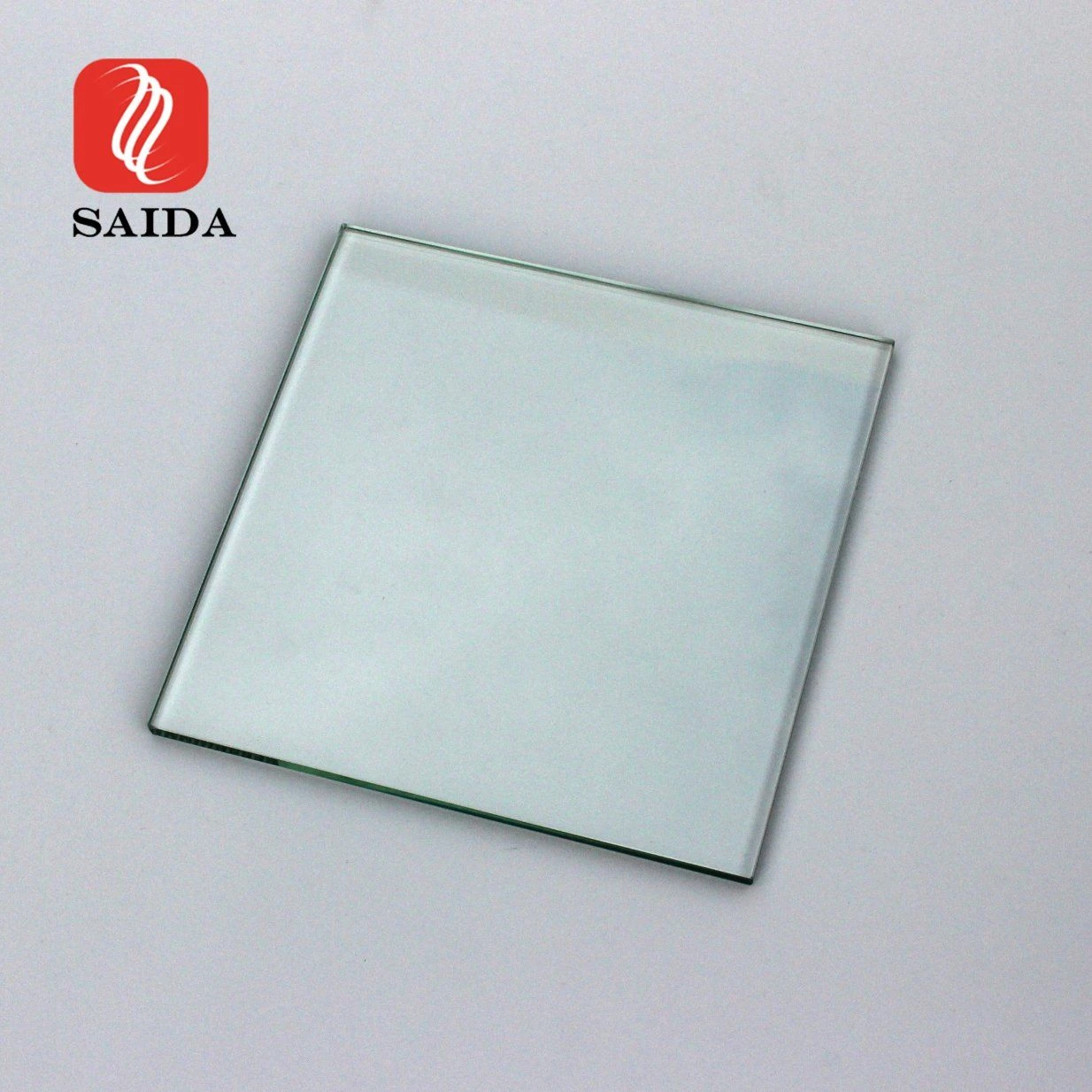

New Products 50X50X1mm ITO/Fto Coated Conductive Pattern Glass for Laboratory is a patterned conductive glass. Listed geometry: size 20X20mm, 50X50mm, 100X100mm or Customized, thickness 0.55mm/0.6mm/0.7mm/0.8mm/1.0mm/1.5mm/2.0mm/3mm etc, flat shape. Optical / electrical data: sheet resistance 7ohm, 8ohm 10ohm 14ohm…. Flatness High Class. It is used in Electronics & Instruments. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Flat |
|---|---|
| Thickness | 0.55mm/0.6mm/0.7mm/0.8mm/1.0mm/1.5mm/2.0mm/3mm etc |
| Flatness | High Class |
| Usage | Electronics & Instruments |
| Appearance | Flat Tempered |
| Model NO. | Customized |
| Standard | GB/T 9963-1998 |
| Steel Degree | Tempered Glass |
| Thickness of Flat Tempered Glass | 0.3-2.2mm |
| Thickness of Curve Tempered Glass | 0.3-2.2mm |
| Fragment State | Tempered |
| Technics | Chemical Tempered |
| Glass Raw Materi | Gorilla/AGC/Dragontail/Panda Glass or Other Brand. |
| Resistance | 7ohm, 8ohm 10ohm 14ohm… |
| Glass Shapes | Square, Round, Irregular Graphics, (Customized) |
| Glass Size | 20X20mm, 50X50mm, 100X100mm or Customized |
| Edge Processing | Straight, Round, Beveled, Stepped; Polished, CNC |
| Keyword | ITO Glass |
| Keyword1 | Fto Glass |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Product Name | Customized 5-100ohms ITO conductive glass for 1mm 2mm 3mm microscope constant temperature heating table |
|---|---|
| Size | Customzied as request |
| Thickness | 0.33-6.0mm |
| Conductive Value | 7-10ohm, 10-15ohm ,3ohm, 5ohm, 7ohm, 8ohm, 10ohm, 15ohm, 20ohm, 30ohm, 50ohm, 70ohm, 100ohm, 150ohm, 300ohm and etc. |
| Thickness Tolerance | +/-0.05mm |
| Flatness | </=0.10% |
What to specify when you request a quote
- Sheet resistance — listed as “7ohm, 8ohm 10ohm 14ohm…”; state the target sheet resistance and its tolerance.
- Transmittance — give the minimum visible transmission at the resistance you need.
- Substrate and thickness — listed as “0.55mm/0.6mm/0.7mm/0.8mm/1.0mm/1.5mm/2.0mm/3mm etc”; name the base glass (soda-lime, borosilicate, alkali-free, quartz) and thickness.
- Size and cutting — listed as “20X20mm, 50X50mm, 100X100mm or Customized”; give the cut size and whether edges are seamed.
- Pattern or electrodes — send a drawing for any etched pattern, bus bar or electrode.
