Application: Home Appliance, Electronics & Instruments.
Overview

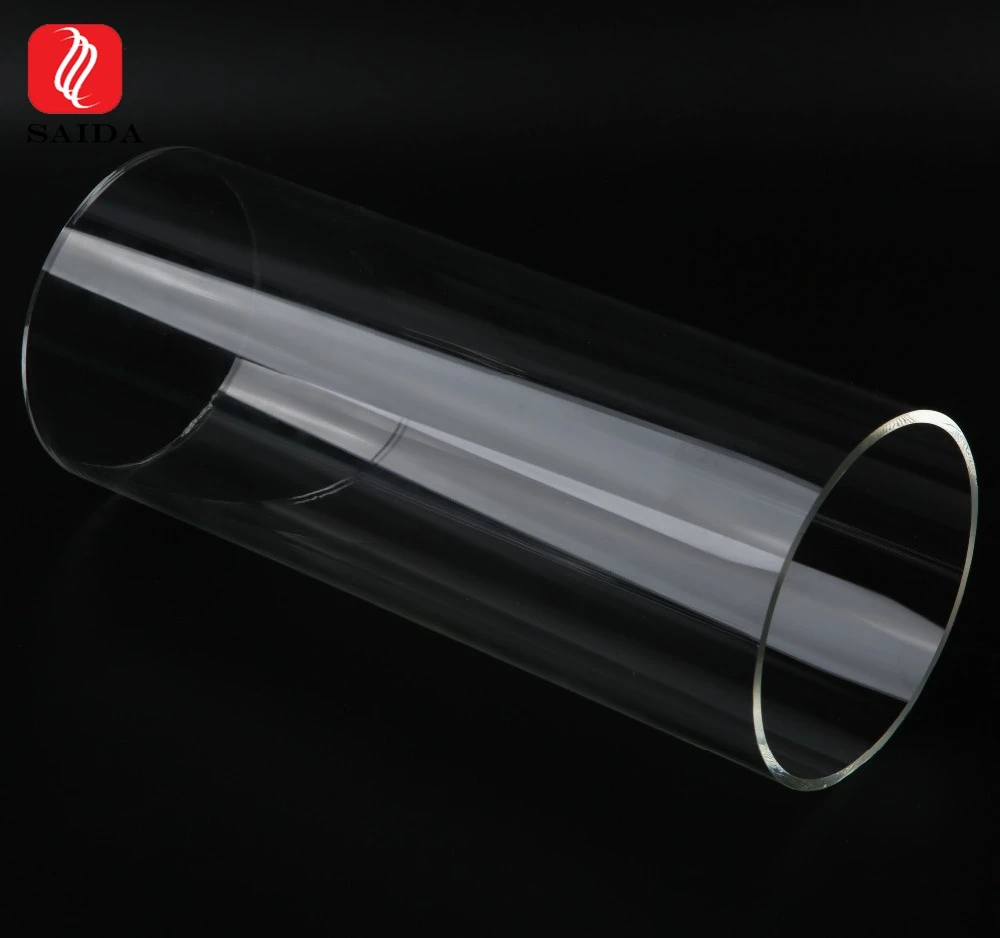

New Products Borosilicate Glass Tube Quartz Glass Tube Heat Resistance is a precision glass tube / rod. Listed geometry: size Dia. 5-60mm, thickness 2.5mm, curve shape. Flatness Conforming Article. Typical applications: Home Appliance and Electronics & Instruments. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Curve |
|---|---|
| Size | Dia. 5-60mm |
| Thickness | 2.5mm |
| Flatness | Conforming Article |
| Usage | Home Appliance, Electronics & Instruments |
| Appearance | Glass Tube |
| Standard | GB/T 9963-1998 |
| Steel Degree | Tempered Glass |
| Thickness of Flat Tempered Glass | From 0.5mm to 12mm |
| Thickness of Curve Tempered Glass | From 0.5mm to 12mm |
| Fragment State | Ⅱ |
| Technics | Chemical Tempered |
| Color | Clear |
| Ends Treatment | Flat/Fire Polished/Seamed |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Product Type | New Products Borosilicate Glass Tube Quartz Glass Tube Heat Resistance |
|---|---|
| Raw Material | Crystal White/Soda Lime/Low Iron Glass / Borosilicate Glass / Quartz Glass |
| Size | Size can be customized |
| Thickness | 2.5mm |
| Tempering | Thermal Tempering/Chemical Tempering |
| Edgework | Flat Ground (Flat/Pencil/Bevelled/Chamfer Edge are available) |
| Hole | Round/Square (Irregular hole are available) |
| Color | Black/White/Silver (up to 7 layers of colors) |
| Printing Method | Normal Silkscreen/High Temperature Silkscreen |
| Coating | Anti-Glaring Anti-Reflective Anti-Fingerprint Anti-Scratches |
| Production Process | Cut-Edge Polish-CNC-Clean-Print-Clean-Inspect-Pack |
| Features | Anti-scratches/Waterproof/anti-fingerprint/anti-fire/easy to clean/high-pressure scratch resistant |
| Keywords | Anti Fingerprints Flat Switch Glass Panel Easy Clean-up Switch Glass Panel Intelligent Touch Switch Tempered Glass Panel |
What to specify when you request a quote
- Material — name the glass (borosilicate 3.3, quartz, soda-lime).
- OD, ID and wall — listed as “Dia. 5-60mm”; give outer and inner diameter or wall and their tolerances.
- Length and ends — listed as “Flat/Fire Polished/Seamed”; give length, end finish and any closed or flared ends.
- Straightness and bore — state straightness and bore tolerance for precision tubing.
