Product type: Bandpass Filter. Application: Lighting, Medical, Optical, Photography.
Overview

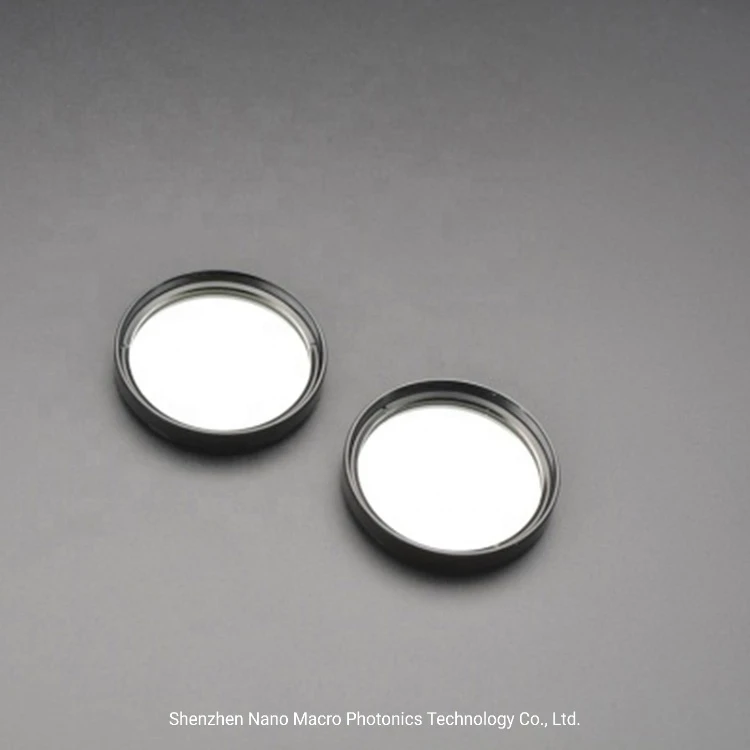

Night Vision Mobile Phone 905nm Nir Laser Filter Optical Glass Narrow Bandpass Filter: a bandpass filter made from Glass. Listed geometry: size 5~80mm or Custom, thickness 1-5mm or Custom. Optical / electrical data: wavelength 905nm, bandwidth 30nm or Custom Option, transmittance T>90%. It is used in Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Bandpass Filter |
| Shape | Customized |
| Size | 5~80mm or Custom |
| Cwl | 905nm |
| Fwhm | 30nm or Custom Option |
| Transmittance | T>90% |
| Usage | Lighting, Medical, Optical, Photography |
| Thickness Range | 1-5mm or Custom |
| Color | Transparent |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Supplier | Nano Macro Optics Co.,Ltd. |
Technical data
| CWL | 905±2nm |
|---|---|
| FWHM | 30±3nm (customizable) |
| Transmittance | >90% (customizable) |
| Blocking Range | 350nm-1100nm (Per customer's requirements) |
| Cut-off Depth | >OD3-OD6 UV-NIR |
| Angle of Incidence | 0° |
| Surface Quality | MIL 60-40 |
| Product Material | Optical glass |
| Dimension & Thickness | Customizable |
What to specify when you request a quote
- Spectral target — listed as “905nm”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “5~80mm or Custom”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
