Product type: Notch Filter. Application: Medical, Optical.
Overview

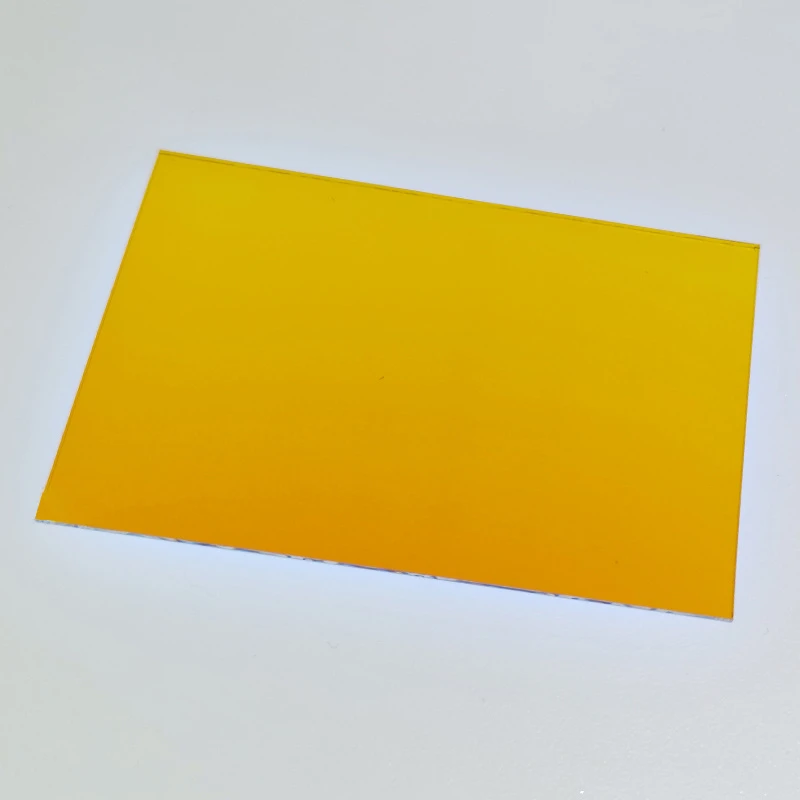

Notch Filter Optical Coating Glass 532nm Narrow Bandpass Filter is a bandpass filter made from Glass. Listed geometry: thickness 0.3-50mm. Typical applications: Medical and Optical. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Notch Filter |
| Shape | Customized |
| Usage | Medical, Optical |
| Thickness Range | 0.3-50mm |
| Color | All Sorts of Color |
| Principle | Cut-off Filter |
| Angle of incidence | 0deg;/45deg; |
| Supplier | Shenyang Ebetter Optics Co., Ltd. |
Technical data
| Product name | Notch Filters |
|---|---|
| Optical density | OD3; OD4; OD5; OD6 |
| Diameter&Tolerance | 0.5-600±0.02mm |
| Thickness&Tolerance | 0.3-50±0.02mm |
| Transmission | ≥90% |
| Transmitted Wavefront, RMS | <1λ |
| Reflection at CWL | >99.5% |
| Surface flatness | 1/10λ |
| Surface quality | 10/5 |
| Coating | Hard Coated |
What to specify when you request a quote
- Spectral target — state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0deg;/45deg;”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “0.3-50mm”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
Engineering guides for this part
For material grades and coating options, see Precision Glass Substrates for Notch Filters: Material & Coating Selection Guide. For an application example, read Bandpass Filter Glass for Appliance Light Detection Modules. A related standard product is Bandpass Filter.
FAQ
What is the Notch Filter Optical Coating Glass 532nm Narrow Bandpass Filter made of? expand_more
It is listed as Glass. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What sizes and thicknesses are available? expand_more
The listing gives thickness 0.3-50mm. Custom outlines and thicknesses are made to drawing; state the tolerance you need.
Where is this bandpass filter used? expand_more
Listed applications: Medical and Optical.
What should I include in a quote request? expand_more
Include spectral target, blocking, angle of incidence, size and thickness and substrate, plus quantity and a drawing if the part is custom.
