Product type: Color Filter. Application: Lighting, Medical, Optical, Photography, Astronomy.
Overview

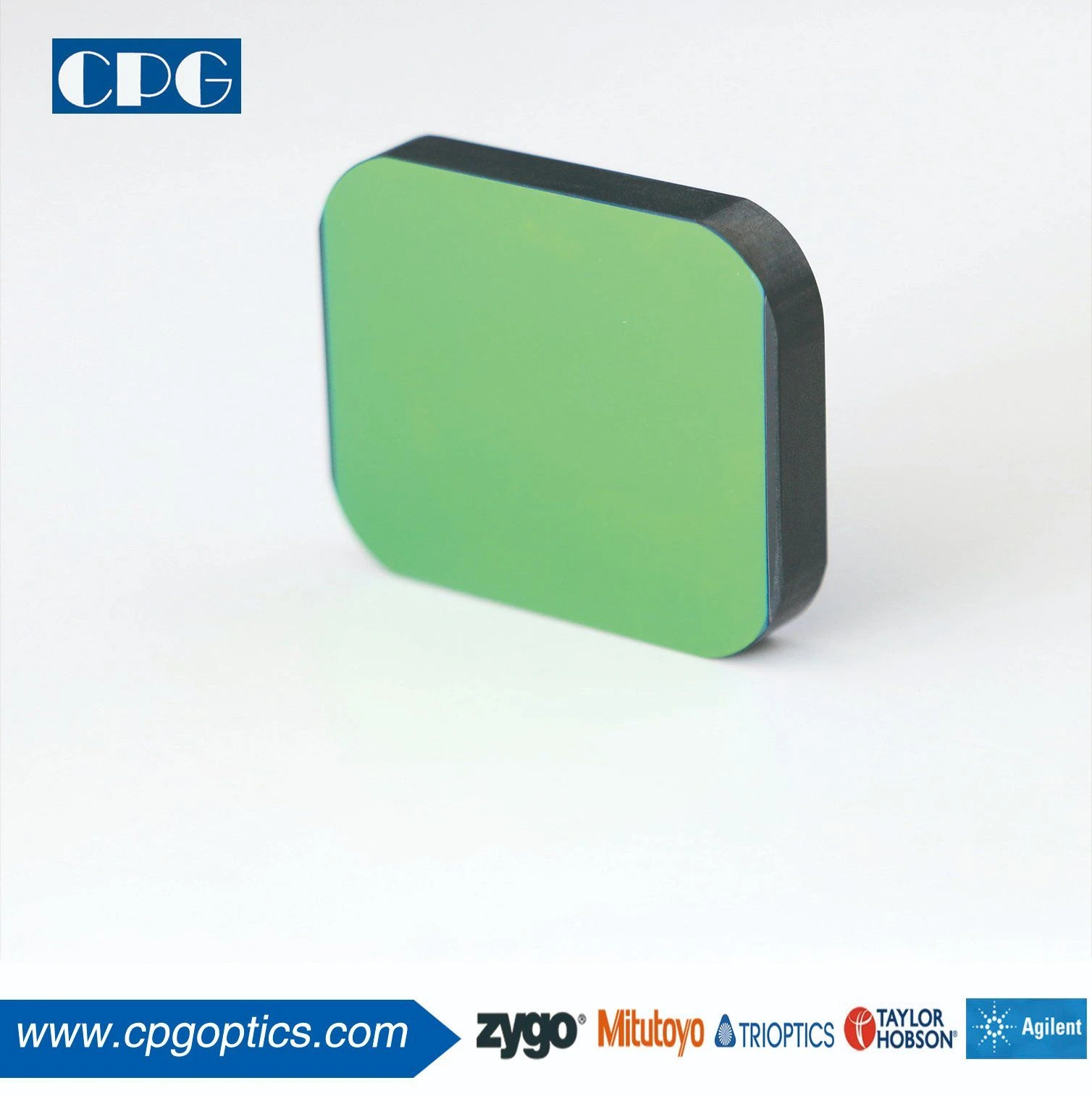

The OD 2 High Precision Optical Narrow-Band Filters of Factory Mass Production is supplied as an optical filter made from Glass. Listed geometry: thickness 2.50+/-0.05mm. Optical / electrical data: bandwidth 50+/-7nm. Coating: Band pass filter coating; surface quality 60-40. Typical applications: Lighting, Medical, Optical, Photography and Astronomy. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Thickness | 2.50+/-0.05mm |
| FWHM | 50+/-7nm |
| Coating | Band pass filter coating |
| Surface quality | 60-40 |
| Clear aperture | >90% |
| Usage | Lighting, Medical, Optical, Photography, Astronomy |
| Thickness Range | 2mm-5mm |
| Color | Black |
| Principle | Cut-off Filter |
| Angle of incidence | 45° |
| Materials we already use | optical glass, materials, and even some plastics. |
| Specifications | Items |
| Major axis | 17.00+0.00/-0.10mm |
| ROC1 | infinity |
| ROC2 | infinity |
| Chamfer | 0.1-0.2mm(FW)x45deg |
| Blocking range(0.55-1.2)xCWL,blocking depth | OD>3 |
| Standard | MIL-PRF-13830B |
| Applications | . |
| Package detail | Optics are packed with Capacitor paper, white paper, custom-made plastic containers etc |
| Supplier | CPG OPTICS LIMITED |
Technical data
| Items | Description | |
| Narrow band filter | Material: | Schott N-BK7 |
| Diameter: | Major axis:17.00+0.00/-0.10mm | |
| Thickness: | 2.50+/-0.05mm | |
| ROC1: | infinity | |
| ROC2: | infinity | |
| Surface quality: | 60-40 | |
| Parallelism | <3arcmin | |
| Clear aperture: | >90% | |
| Chamfer: | 0.1-0.2mm(FW)x45deg | |
| Coating: | Band pass filter coating | |
| FWHM:50+/-7nm | ||
| Blocking range(0.55-1.2)xCWL,blocking depth:OD>3 | ||
| Standard: | MIL-PRF-13830B |
What to specify when you request a quote
- Spectral target — listed as “50+/-7nm”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — listed as “OD>3”; give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “45°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “2.50+/-0.05mm”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — listed as “60-40”; quote scratch-dig for imaging paths.
