Application: Building, Furniture, Home Appliance, Electronics & Instruments.
Overview

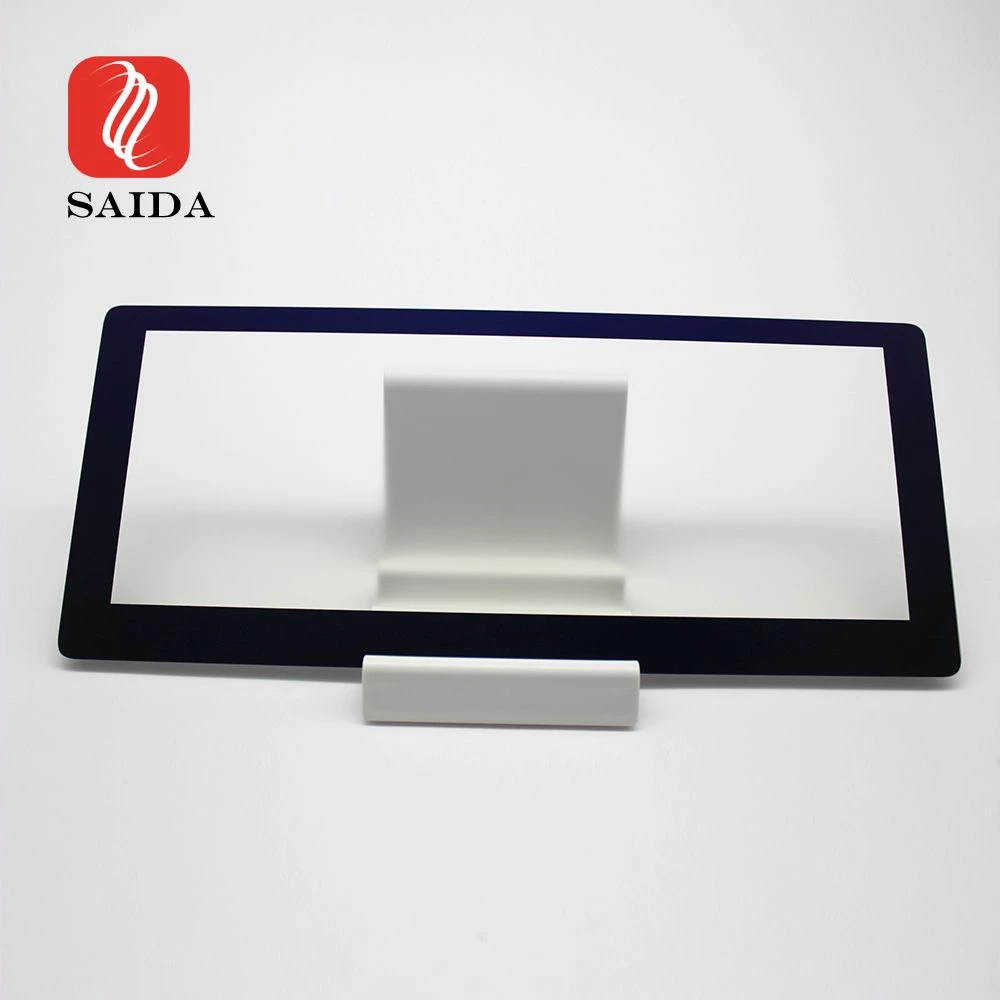

The OEM 0.5mm-4mm High 98% Transmittance Double Side Anti Reflection Ar Coating Tempered Glass for High-End Screen Display is supplied as a display / touchscreen cover glass. Listed geometry: size Customized According to Customer Drawings, thickness 0.55mm/0.6mm/0.7mm/0.8mm/1.0mm/1.5mm/2.0mm/3mm etc, flat shape. Optical / electrical data: transmittance >91%. Flatness High Class. It is used in Building, Furniture, Home Appliance and Electronics & Instruments. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Flat |
|---|---|
| Transmittance | >91% |
| Flatness | High Class |
| Usage | Building, Furniture, Home Appliance, Electronics & Instruments |
| Appearance | Flat Tempered |
| Standard | GB/T 9963-1998 |
| Steel Degree | Tempered Glass |
| Thickness of Flat Tempered Glass | 0.5-19mm |
| Thickness of Curve Tempered Glass | Customized |
| Fragment State | Ⅱ |
| Technics | Chemical Tempered |
| Glass Silk Screen Color | Black, Gray, White, Other Colors. |
| Glass Raw Materials | Gorilla/AGC/Dragontail/Panda Glass or Other Brand. |
| Glass Thickness | 0.55mm/0.6mm/0.7mm/0.8mm/1.0mm/1.5mm/2.0mm/3mm etc |
| Glass Shapes | Square, Round, Irregular Graphics, (Customized) |
| Glass Size | Customized According to Customer Drawings |
| Edge Processing | Straight, Round, Beveled, Stepped; Polished, CNC |
| Surface Treatment | AG/Af/Ar Coating |
| Minimum Order Quantity | 100PCS |
| Drilling | Acceptable |
| Shipping Way | Commercial Express, Sea Shipping |
| Tempered | Physical Tempered, Chemical Tempered |
| Hardness | >7h |
| AR glass compared with other related products | AR glass |
| Packaging | Each glass use double sided protective film and then packed by craft paper then into a wooden crate. |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| AR glass | High transmittance (max be 99%), low reflection (less than 2%), easy to clean, no aging, no deformation, not easy to scratch and leave traces, etc. |
|---|---|
| AR film on surface | Low transmittance, not resistant to acid and alkali, easy to detach from moisture absorption, poor scratch resistance (≤3H), easy to create on the surface destructive scratches. |
| Acrylic panel | High reflectivity, lack of texture, not resistant to acid and alkali, easy to age, poor scratch resistance (≤3H), easy to manufacture destructive scratches, poor flatness, not suitable for large-size display products |
| Parameters | Ordinary glass | One side AR glass | Double sides AR glass | |
| Color | Clear | Blue-purple | Natural color | |
| Optical curve | V | W | ||
| Transmittance | ≤89% | ≥93% | ≥98% | |
| Reflection | ≥8.4% | ≤5.2% | ≤1% | |
| Application | low-end product | mid-range display panel | high-end display panel | |
| Hardness | ≥7H | ≥7H | ≥7H | |
| High temperature resistance | Fully tempered or semi-tempered at 650 degrees, AR coating layer no change. |
What to specify when you request a quote
- Glass type and thickness — listed as “0.5-19mm”; name the glass (soda-lime, aluminosilicate, borosilicate) and thickness.
- Strengthening — listed as “0.5-19mm”; state thermal tempering or chemical strengthening and the required surface compression or impact rating.
- Printing and coatings — listed as “Building, Furniture, Home Appliance, Electronics & Instruments”; list silk-screen colours, windows, and any AR / AG / AF coating.
- Outline and edges — listed as “Flat”; send a drawing with cut-outs, holes and edge finish.
- Optical requirements — listed as “>91%”; give transmission, haze or gloss targets for the viewing area.
