Product type: Infrared Sensor Switch. Application: Corridor.
Overview

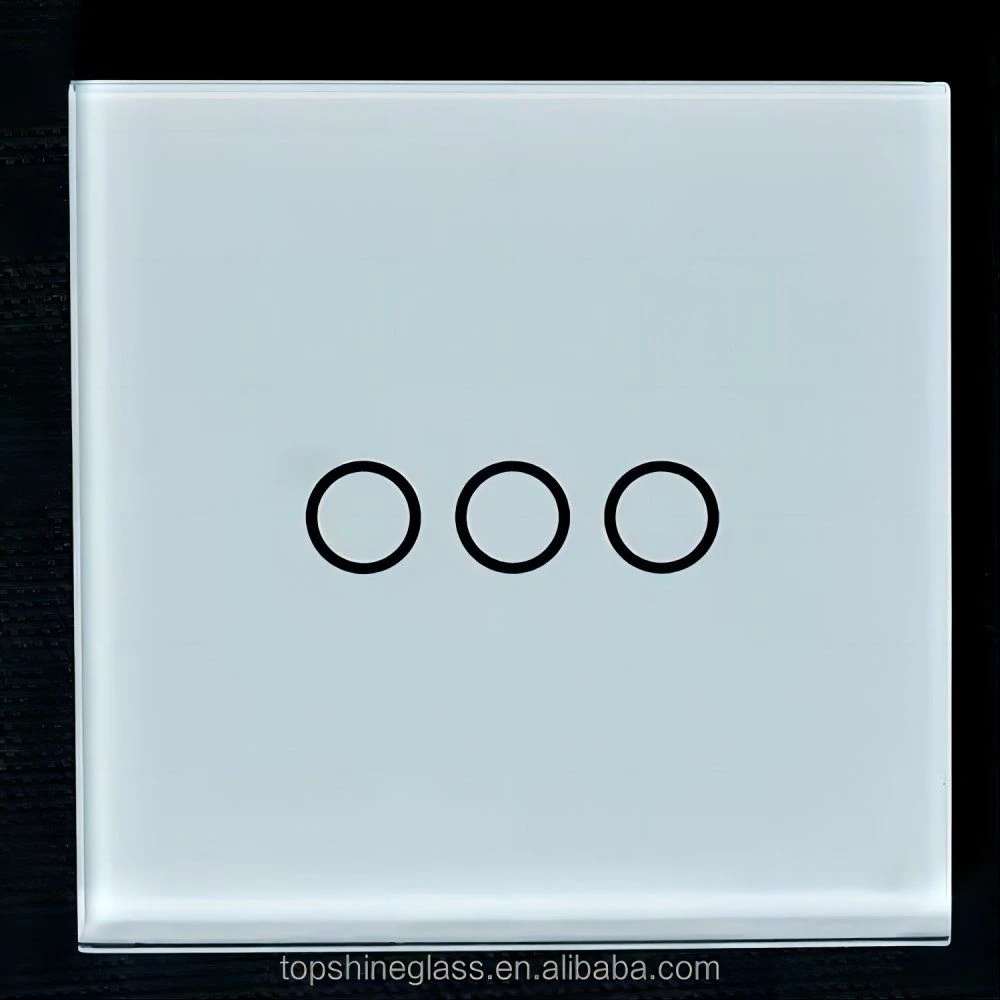

OEM 2mm -4mm Tempered Glass for Smart Touch Switch/Socket Glass Panel with Silk Screen Printing and Af Coating is a building / safety glass. Listed geometry: size 86 Type, thickness 0.55mm/0.6mm/0.7mm/0.8mm/1.0mm/1.5mm/2.0mm/3mm etc. Optical / electrical data: transmittance >90%. Typical applications: Corridor. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Infrared Sensor Switch |
|---|---|
| Size | 86 Type |
| Transmittance | >90% |
| Application | Corridor |
| Principle | Infrared |
| Wires | Two-Wires |
| Standard | Standard |
| Glass Silk Screen Color | Black, Gray, White, Other Colors. |
| Glass Raw Materials | Gorilla/AGC/Dragontail/Panda Glass or Other Brand. |
| Glass Thickness | 0.55mm/0.6mm/0.7mm/0.8mm/1.0mm/1.5mm/2.0mm/3mm etc |
| Glass Shapes | Square, Round, Irregular Graphics, (Customized) |
| Glass Size | Customized According to Customer Drawings |
| Edge Processing | Straight, Round, Beveled, Stepped; Polished, CNC |
| Surface Treatment | AG/Af/Ar Coating |
| Minimum Order Quantity | 100PCS |
| Drilling | Acceptable |
| Shipping Way | Commercial Express, Sea Shipping |
| Tempered | Physical Tempered, Chemical Tempered |
| Hardness | >7h |
| Currently our products are mainly used in | 1. Consumer Electronics (smart watch, smart bracelet, tablet, glass cover, camera lens cover, PSP game console cover, etc.) |
| Packaging | Each glass use double sided protective film and then packed by craft paper then into a wooden crate. |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Product Name | OEM 2mm -4mm Tempered Glass for Smart Touch Switch/Socket Glass Panel with Silk Screen Printing and Af Coating |
|---|---|
| Material | Gorilla/AGC/Dragontail/Panda Glass or Other Brand. |
| Color | customized |
| size | as your requirement |
| shape | as your requirement |
| thinkness | 0.5mm/0.7mm/0.8mm/1.1mm/1.3mm/1.5mm/1.8mm/2mm/3mm etc. |
| Technology | Tempering (Silk printing, tempering, frosting ,drilling, edging, water-jet cutting, laminating) |
| Used | household panel, touch screen panel |
What to specify when you request a quote
- Glass type and thickness — listed as “Gorilla/AGC/Dragontail/Panda Glass or Other Brand.”; name the glass and thickness.
- Temperature and pressure — give working temperature, thermal shock and any pressure rating.
- Strengthening and safety — listed as “Physical Tempered, Chemical Tempered”; state tempering, lamination or the safety standard.
- Outline and edges — listed as “86 Type”; send a drawing with outline, holes and edge finish.
