Product type: Color Filter. Application: Lighting, Medical, Optical, Photography.
Overview

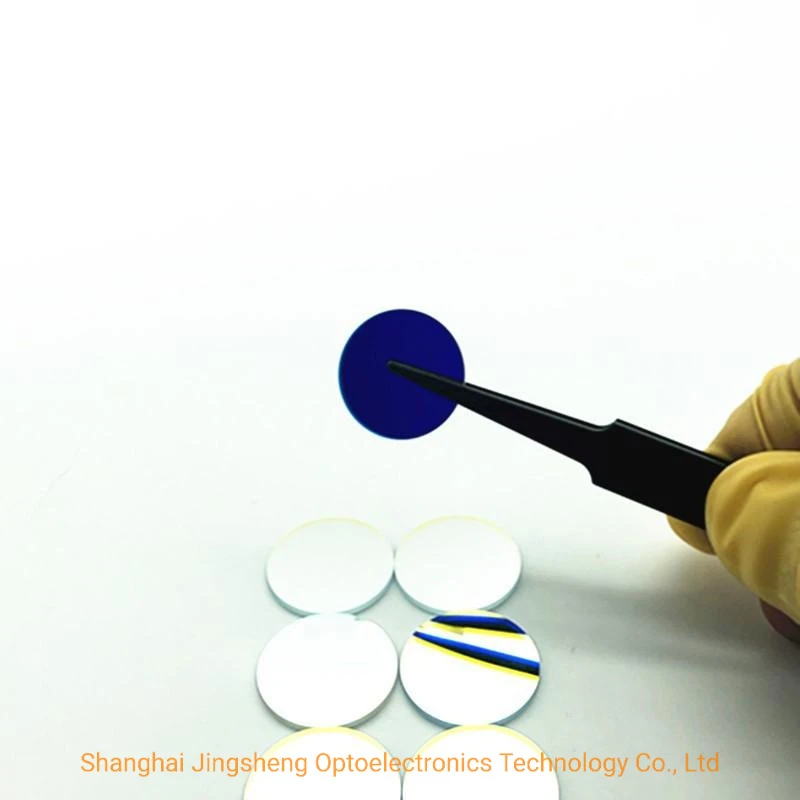

Optical 254nm 405nm 450nm 532nm 635nm 650nm 660nm Blue Narrow Band Glass Custom-Made Filter is a bandpass filter made from Glass. Listed geometry: size 2-80mm, thickness 1.1mm. Optical / electrical data: wavelength 800nm, bandwidth 50-120nm. Surface quality 60/40. Listed for Lighting, Medical, Optical and Photography applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Size | 2-80mm |
| Thickness | 1.1mm |
| Cwl | 800nm |
| Fwhm | 50-120nm |
| Surface Quality | 60/40 |
| Usage | Lighting, Medical, Optical, Photography |
| Color | Transparent |
| Principle | Cut-off Filter |
| Angle of incidence | 45° |
| Use | Optical and Photographic Instrument |
| Packaging& Shipping | Inner packing——-special protective packing for optical products. |
| Supplier | Shanghai Jingsheng Optoelectronics Technology Co., Ltd |
What to specify when you request a quote
- Spectral target — listed as “800nm”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “45°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “2-80mm”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — listed as “60/40”; quote scratch-dig for imaging paths.
