Product type: Thin Film Filter. Application: Lighting, Medical, Optical, Photography.
Overview

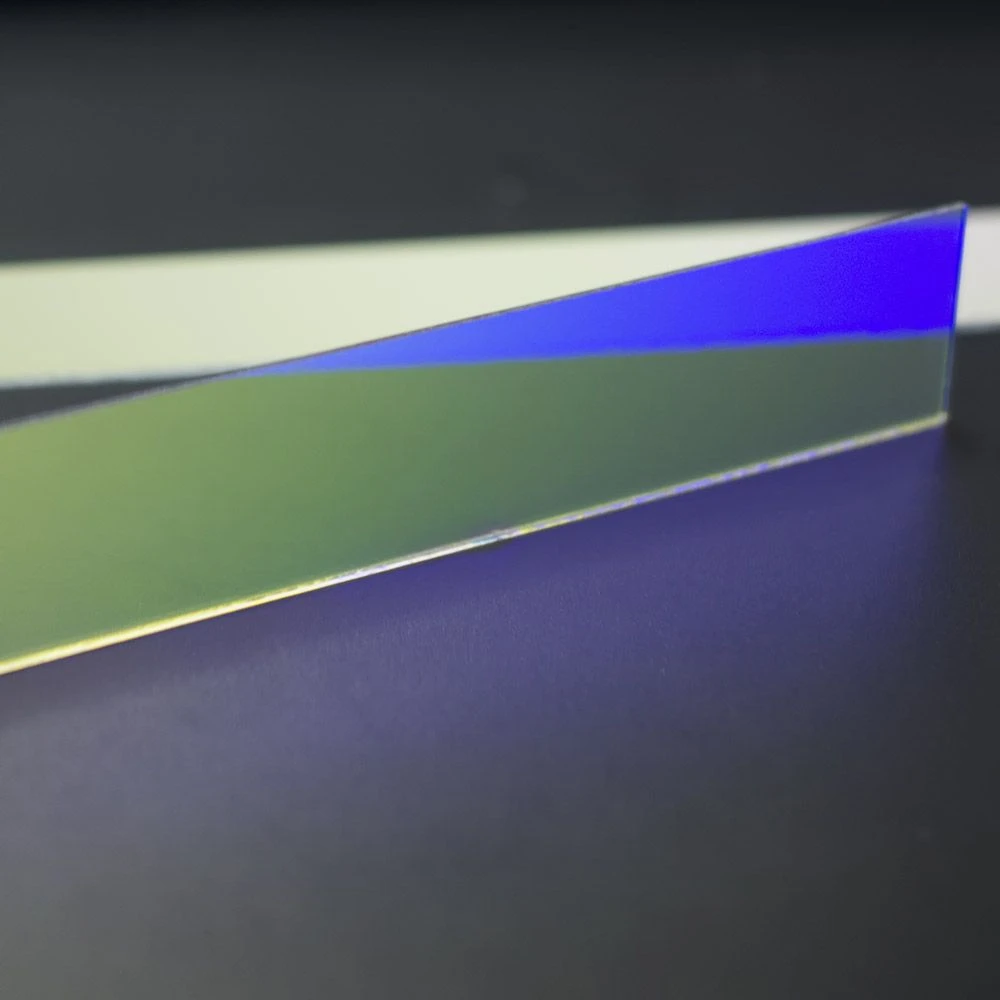

Optical 750nm Short Pass Filter IR Cut Filter: a UV / IR cut filter made from Glass. Listed geometry: thickness 1.1mm. Listed for Lighting, Medical, Optical and Photography applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Thin Film Filter |
| Shape | Customized |
| Usage | Lighting, Medical, Optical, Photography |
| Thickness Range | 1.1mm |
| Color | Customized |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Product Index | Transmission range |
| Supplier | Nano Macro Optics Co.,Ltd. |
Technical data
| Transmission range | 350-740nm or custom |
|---|---|
| Transttance | T>90% or custom |
| Blocking Range | 350-1100nm except for transmission band or custom |
| OD | OD4 / TAVG=0.01% or custom |
| Dimension | Customized |
| Flat Polish | 60-40;40-20 |
| OEM (Printing) | Customized |
What to specify when you request a quote
- Spectral target — state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “1.1mm”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
