Product type: Spherical Optical Lenses. Application: Lighting, Medical, Optical, Photography. Model: TT Lens 578.
Overview

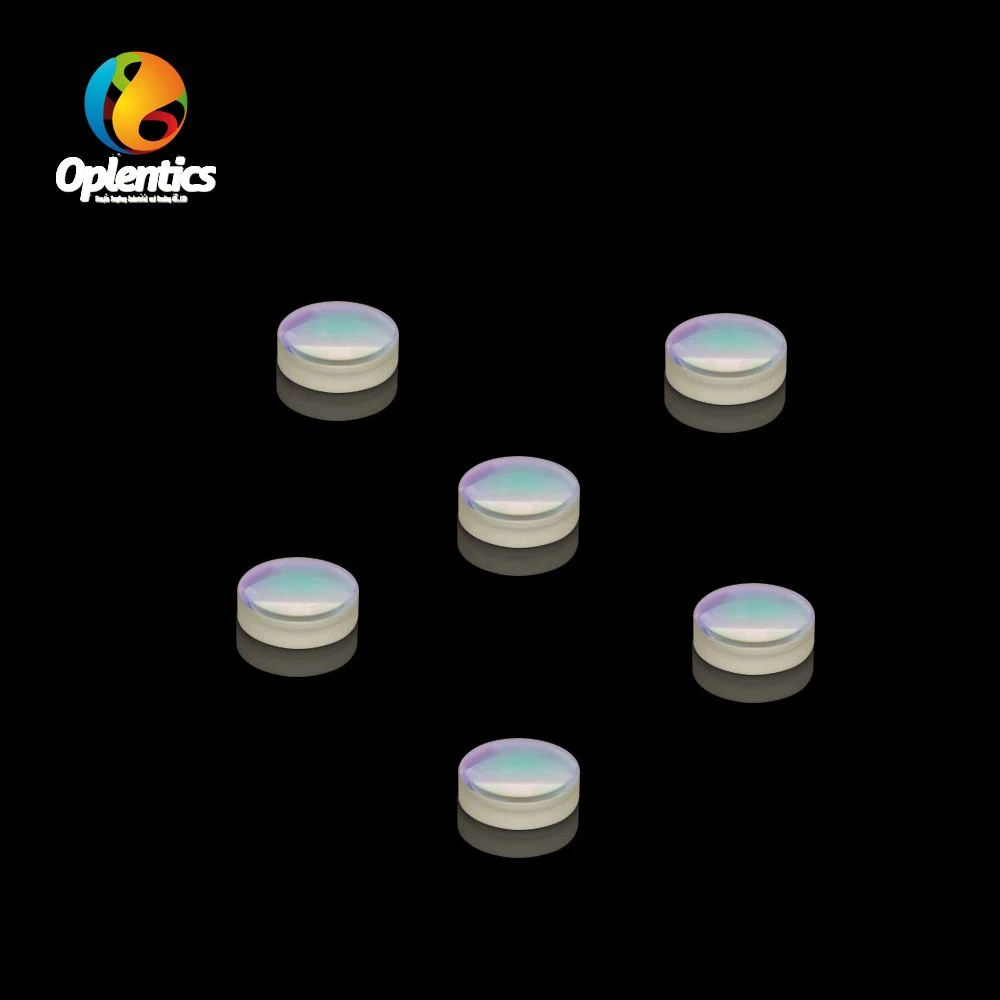

The Optical Ar Coated Glass Lens for Optical Film Thickness Gauge is supplied as an optical lens made from Optical Glass. Listed geometry: diameter +0/-0.01 or as Required, thickness as Required, single-lens shape. Optical / electrical data: transmittance >95%. Coating: HMC; surface quality 40-20 or Better. It is used in Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Spherical Optical Lenses |
| Shape | Single-lens |
| Thickness | as Required |
| Transmittance | >95% |
| Coating | HMC |
| Surface Quality | 40-20 or Better |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | TT Lens 578 |
| Lenses Color | Clear |
| Bevel | Protective Bevel as Needed Products Learn More |
| Diameter Tolerance | +0/-0.01 or as Required |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data
| Name | Optical AR Coated Glass Lens for Optical Film Thickness Gauge |
|---|---|
| Size | Dia 12.7mm, Dia 25.4mm, D50.8mm or others |
| Anti-Reflection Coating Options | MgF2, VIS 0°, VIS-NIR, NIR I, NIR II, VIS-EXT, and YAG-BBAR |
| 1.Material | Domestic or foreign materials are selected based on clients' requests |
|---|---|
| 2.Diameter tolerance | 0/-0.01mm |
| 3.Clear aperture | 90%-100% |
| 4.Tolerance of CT or ET | ±0.02mm |
| 5.Vector Tolerance | ±0.015mm |
| 6.Aperture Tolerance | ±0.02mm |
| 7.Surface Quality | US Standard 10-5,ISO Standard 3X0.063 |
| 8.Curvature Tolerance | ±1.5Lambda |
| 10.Centration | 30 arc seconds |
| 11.Focal Length | ±1% |
| 12.Edge Chip | <0.1mm |
| 13.Bevel | Based on clients' requests |
| 14.Coating | Apply AR or based on client requests |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “+0/-0.01 or as Required”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20 or Better”; quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “Protective Bevel as Needed Products Learn More”; state centration and edge chamfer.
- Coating — listed as “HMC”; list the band and reflectance or transmission target.
