Product type: Undersea Camera Accessories. Application: Lighting, Optical, Undersea Camera Accessories. Model: RAY-XS090#.
Overview

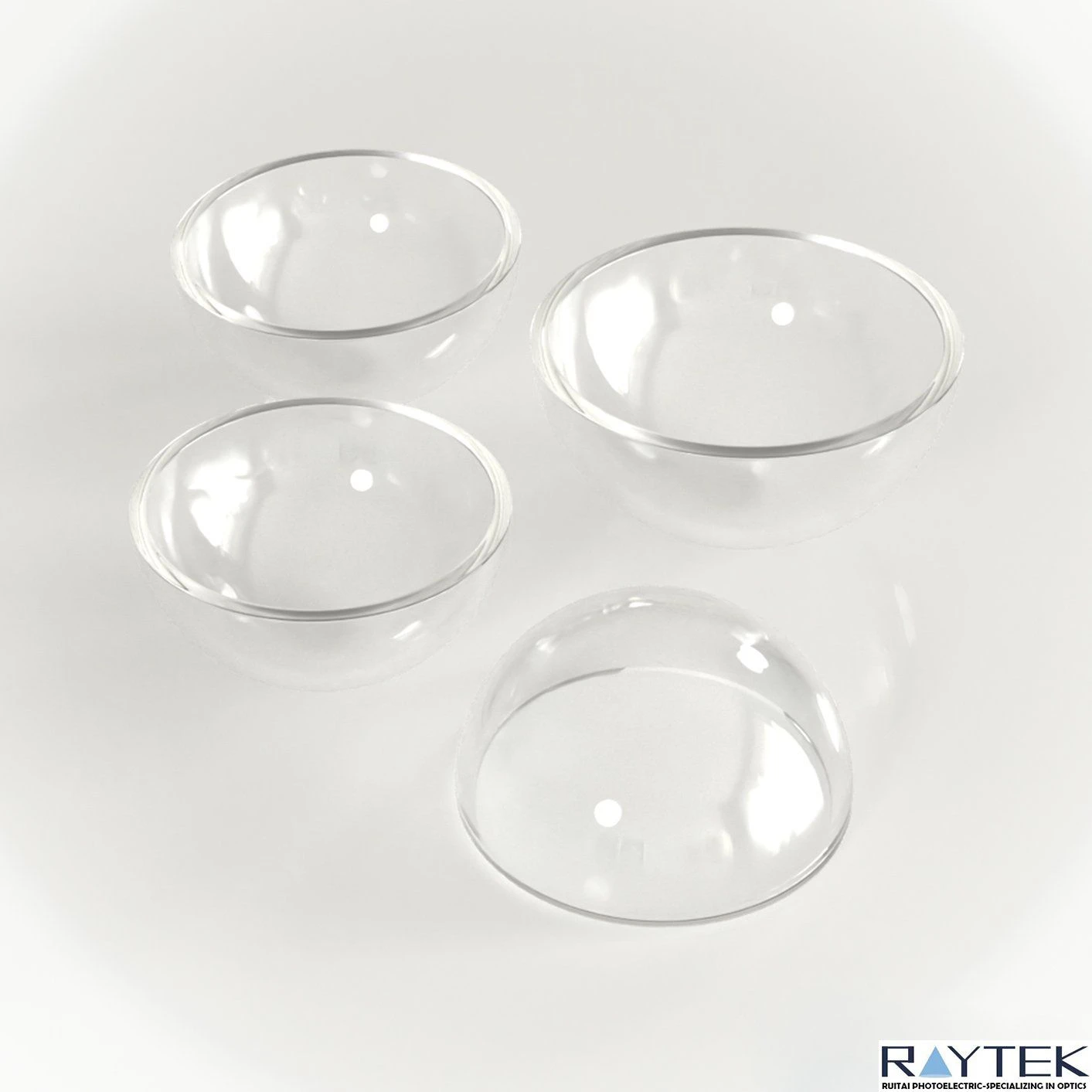

Optical Ball Caps/Optical Dome Lens/Fused Silica Dome/Dome Lens is an optical lens in Optical Glass (H-K9l, N-Bk7, Sapphire, Quartz Glass, etc substrate). Listed geometry: thickness 1-5mm Customize as Per Demand, dome shape. Optical / electrical data: transmittance >95%. Coating: Ar Film, or Customize as Per Demand. It is used in Lighting, Optical and Undersea Camera Accessories. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | H-K9l, N-Bk7, Sapphire, Quartz Glass, etc |
| Type | Undersea Camera Accessories |
| Shape | Dome |
| Thickness | 1-5mm Customize as Per Demand |
| Transmittance | >95% |
| Coating | Ar Film, or Customize as Per Demand |
| Usage | Lighting, Optical, Undersea Camera Accessories |
| Model NO. | RAY-XS090# |
| Lenses Color | Clear |
| Size Tolerance | +0/-0.2mm |
| Thickness Tolerance | +/-0.1mm |
| Roughness | 60-40 Scratch-Dig |
| Height | 1-50mm |
| Main Applying | 1).Underwater camera protection |
| Main Highlights | 1).Excellent optical properties, |
| Main Specification | Items |
| Main Cooperation Materials Manufacturers | CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,J-FIBER,ETC |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Items | Value & Description |
|---|---|
| Substrate | H-K9L,N-BK7,Sapphire,quartz glass,etc |
| Size | 1-500mm Customize as per demand |
| Size Tolerance | +0/-0.2mm |
| Thickness | 1-5mm Customize as per demand |
| Thickness Tolerance | +/-0.1mm Customize as per demand |
| Roughness | 60-40 scratch-dig |
| Height | 1-50mm |
| Coating | AR film, or Customize as per demand |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “+0/-0.2mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Ar Film, or Customize as Per Demand”; list the band and reflectance or transmission target.
