Product type: Color Filter. Application: Medical, Optical, Photography. Model: JS-ZJ-004.
Overview

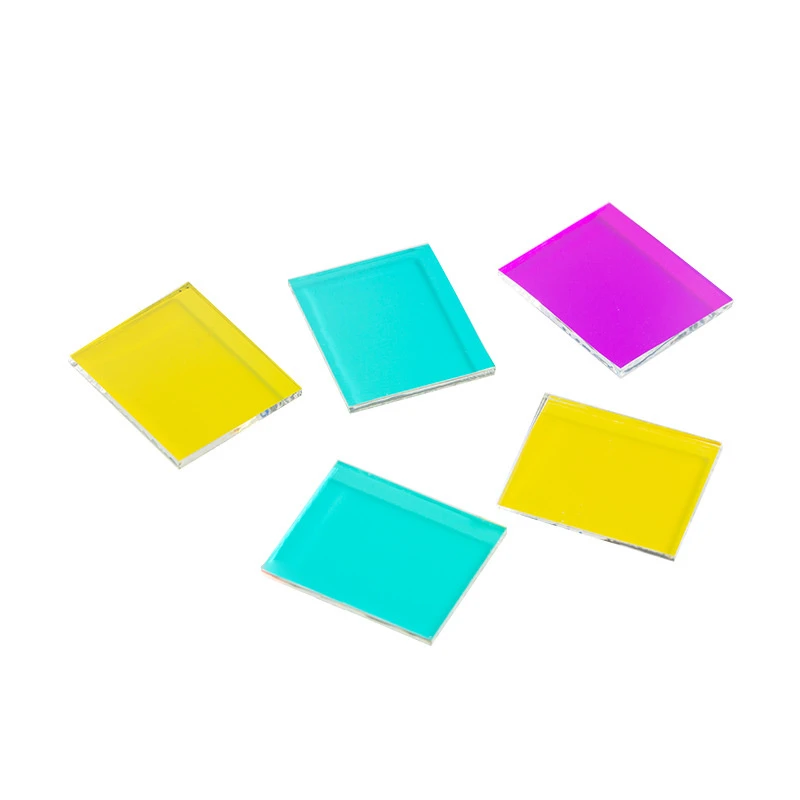

Optical Bandpass 365nm 450nm 500nm 532nm 650nm 808nm 850nm 905nm 940nm Narrow Coatd Light Filter Band Pass Glass Od Cut off Filter: a bandpass filter made from Glass. Listed geometry: thickness Customized. Optical / electrical data: wavelength 355-1064nm. Typical applications: Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Cwl | 355-1064nm |
| Usage | Medical, Optical, Photography |
| Thickness Range | Customized |
| Model NO. | JS-ZJ-004 |
| Color | Customized |
| Principle | Cut-off Filter |
| Angle of incidence | 45° |
| Name | Dichroic Mirror |
| Key | Optical Filter |
| Thickness Tolerance | ±0.1mm |
| Use | Optical and Photographic Instrument |
| Supplier | Shanghai Jingsheng Optoelectronics Technology Co., Ltd |
Technical data
| Product name | Dichroic mirror |
|---|---|
| Material | K9, D263T, B270, BK7, Ultra-white glass etc. |
| Shape | Square, Round, Special Shape, etc. |
| Size | 1-500mm |
| Thickness | 0.3-10mm |
| Clear Aperture | ≥95% |
| Incident Angle | 45° |
| Environmental Test | MIL-STD-810F |
What to specify when you request a quote
- Spectral target — listed as “355-1064nm”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “45°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “Customized”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
