Product type: Right Angle Prism. Application: Beam Dispersion, Beam Split.
Overview

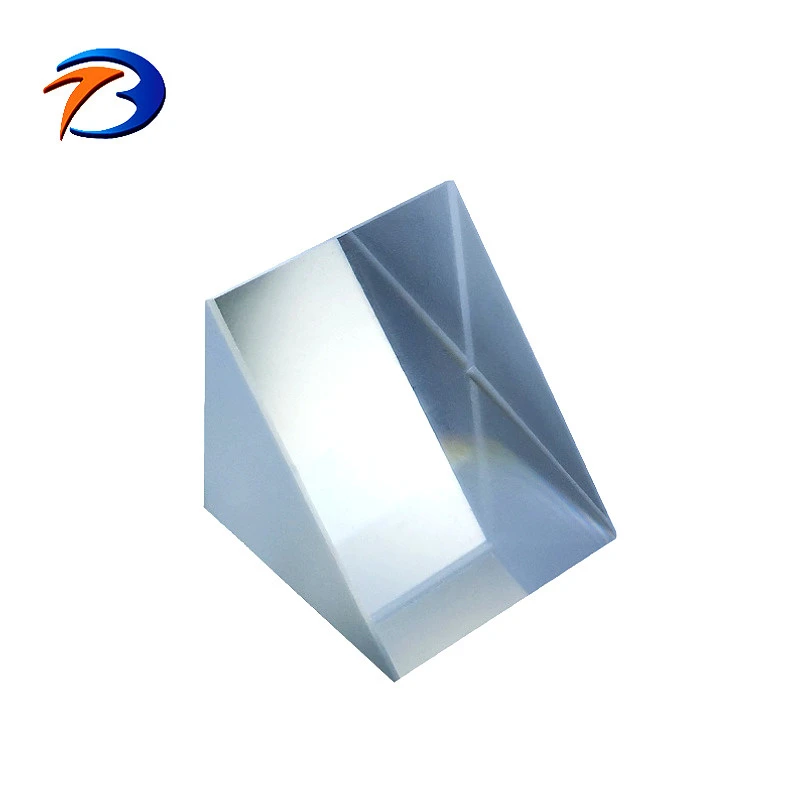

Optical Bk7 Glass Right Angle Prism with Black Painting Ar Coating Cemented Prism: an optical prism made from Glass. Listed geometry: right angle prism shape. Typical applications: Medical Instrument. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Right Angle Prism |
| Shape | Right Angle Prism |
| Application | Medical Instrument |
| Usage | Beam Dispersion, Beam Split |
| Supplier | Shenyang Ebetter Optics Co., Ltd. |
Technical data
| Dimensional Tolerance | ±0.1mm |
|---|---|
| Angle Tolerance | ±2 Arc Seconds |
| Surface Flatness | 1/4 Lambda or 1/8Lambda |
| Surface Quality | 60/40, 40/20 or better |
| Material | BK7/UV fused silica/optical glass |
| Ray Deviation | 90 ° |
| Bevel | Protective bevel as needed |
| Coating | AR, BBAR or Custom |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
