Product type: Equilateral Prism. Application: Medical Instrument. Model: STF56.
Overview

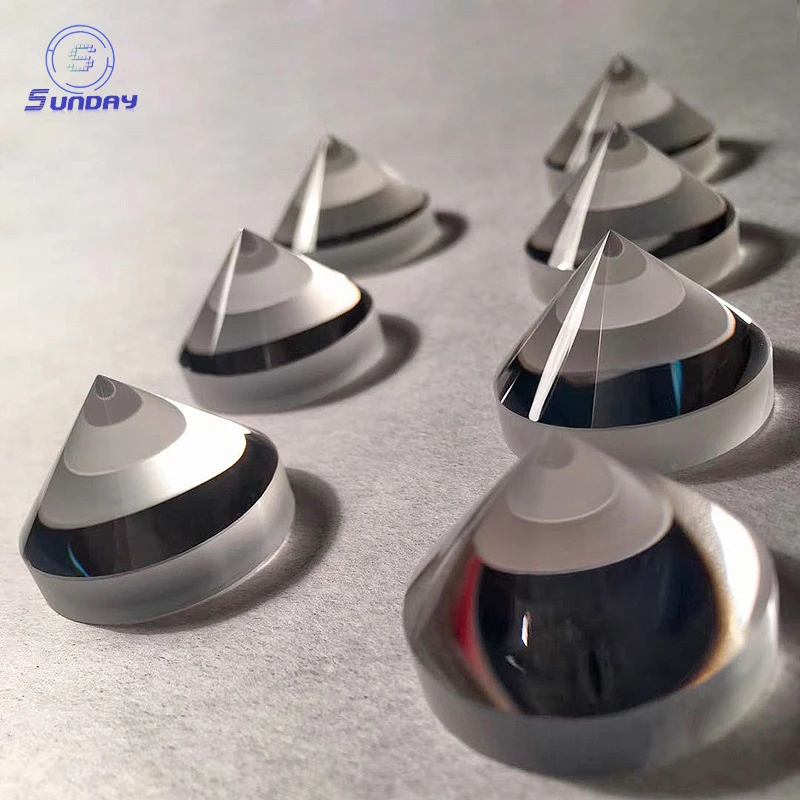

Optical Bk7 K9 Sapphire UV Fused Silica Jgs1 Cone Prisms: an optical prism made from Glass. Listed geometry: cube corner prism shape. Optical / electrical data: bandwidth 3-50nm. Coating: AR BBAR; surface quality 60-40; flatness 1/4 Lambda. Listed for Medical Instrument applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Equilateral Prism |
| Shape | Cube Corner Prism |
| Fwhm | 3-50nm |
| Coating | AR BBAR |
| Surface Quality | 60-40 |
| Flatness | 1/4 Lambda |
| Application | Medical Instrument |
| Model NO. | STF56 |
| Tolerance | +/-0.05mm |
| Size Range | 0.3mm -100mm |
| Supplier | Changchun Sunday Optics Co., Ltd. |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — listed as “0.3mm -100mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “60-40”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “AR BBAR”; list the band and reflectance or transmission target.
