Product type: Thin Film Filter. Application: Lighting, Medical, Optical, Photography. Model: Bandpass Filter.
Overview

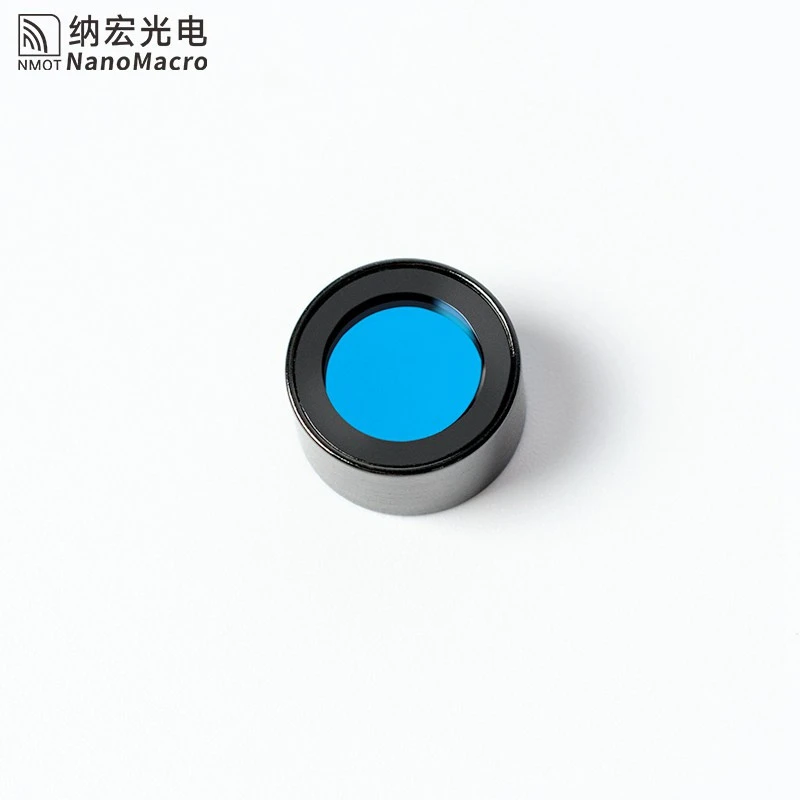

Optical Coated Glass 465nm UV Narrow Bandpass Filter Fwhm 24nm for Microplate Reader is a bandpass filter made from Glass. Listed geometry: thickness Customized. Optical / electrical data: wavelength 465+/-3nm, bandwidth 25nm or Custom. Surface quality 60-40. Listed for Lighting, Medical, Optical and Photography applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Thin Film Filter |
| Shape | Customized |
| Fwhm | 25nm or Custom |
| Surface Quality | 60-40 |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | Bandpass Filter |
| Color | Transparent |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Center Wavelength | 465+/-3nm |
| Blocking Range | 350-1100nm (Customized) |
| Od | Od2-Od6 |
| Optical Aperture | Customized |
| Edge Craft | Customize |
| Thickness Range | Customized |
| Product Index | CWL |
| Supplier | Nano Macro Optics Co.,Ltd. |
Technical data
| CWL | 465±3nm |
|---|---|
| Angle of Incidence | 0° |
| FWHM | 25±3nm or custom |
| Transmittance at CWL | >90% (customized) |
| Blocking Range | 350nm-1100nm (customized) |
| Scratch-Dig | MIL60/40 |
| Cutoff Depth | >OD2-OD6 |
| Product Size | 80x80mm (customized) |
| Material | Optical glass ( K9,BK7,B270,D263T,JGS1,color glass, float glass ) |
What to specify when you request a quote
- Spectral target — listed as “25nm or Custom”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — listed as “350-1100nm (Customized)”; give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “Customized”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — listed as “60-40”; quote scratch-dig for imaging paths.
