Product type: Quartz Diffusers. Application: Lighting, Medical, Optical, Photography, Chemical Analysis, Colorimetry, Astronomy. Model: RAY-XS088#.
Overview

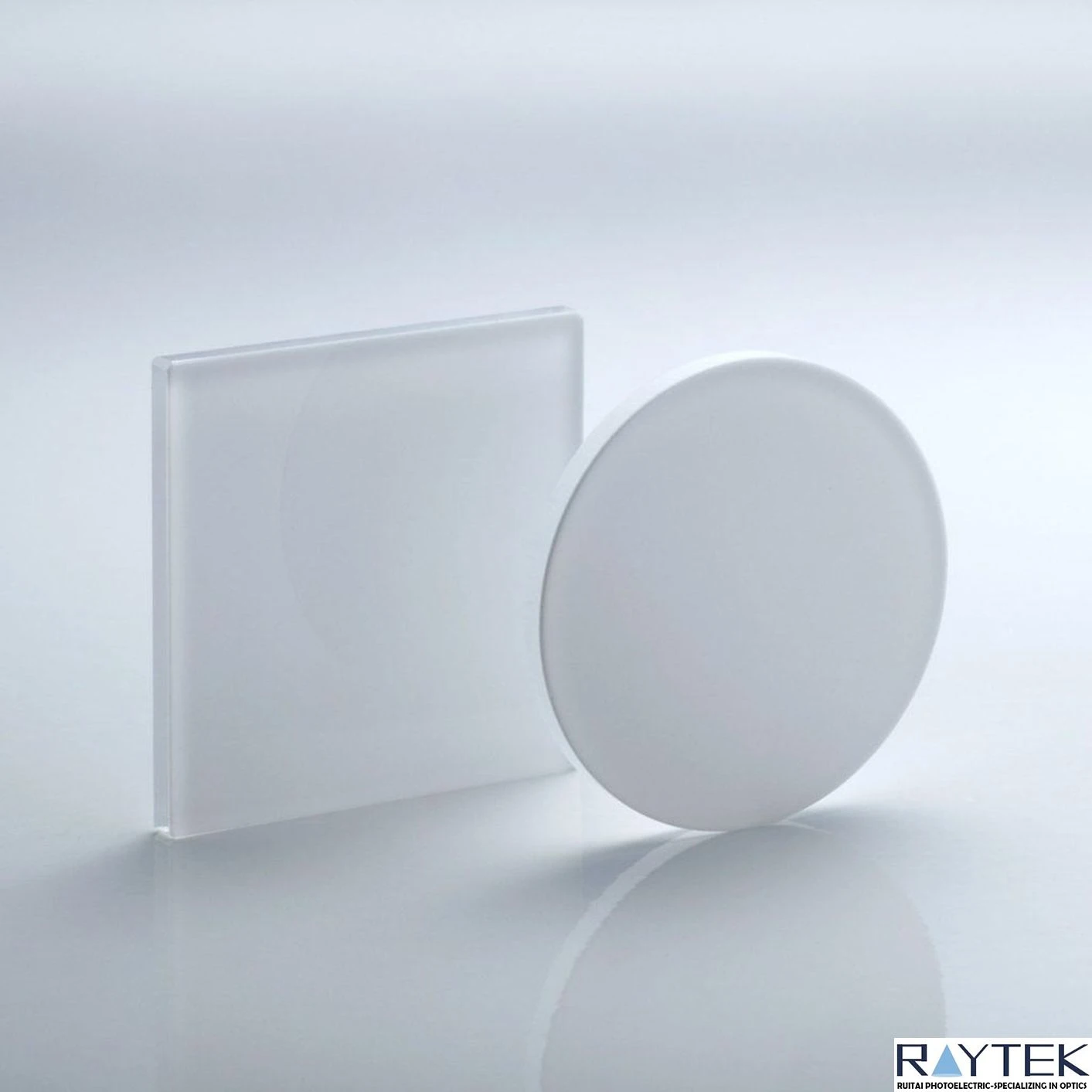

Optical Diffusers/Quartz Optical Diffusers is a waveplate / polariser / grating made from Polymer-on-Glass. Listed geometry: thickness 0.76 mm, or Design as Per Demand. Optical / electrical data: wavelength 365-1600nm. It is used in Lighting, Medical, Optical, Photography and Chemical Analysis. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Polymer-on-Glass |
|---|---|
| Substrate | Polymer-on-Glass |
| Type | Quartz Diffusers |
| Shape | Customized |
| Thickness | 0.76 mm, or Design as Per Demand |
| Wavelength Range | 365-1600nm |
| Clear Aperture | Central Is More Than 95% of Diameter |
| Usage | Lighting, Medical, Optical, Photography, Chemical Analysis, Colorimetry, Astronomy |
| Model NO. | RAY-XS088# |
| Thickness Range | Customize as Per Demand |
| Color | Gray |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Spot Shape | Circle, Square, Rectangle, Straight Line, etc |
| Bandpass Filters Substrates | Polymer-on-glass |
| Optional I | Polymer-on-glass |
| Optional II | Equivalent Polymer-on-glass |
| Applying Fields I | Homogenizing laser beam and led |
| Applying Fields II | Other |
| Main Optical Tech Specification | Tech Data |
| Main Cooperation Materials Manufacturers | CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Optional I: | Polymer-on-glass from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
|---|---|
| Optional II: | Equivalent Polymer-on-glass Made in China, C-laser own brands |
| Applying Fields II: | Other |
|---|---|
| ***** |
| Tech Data | Description |
|---|---|
| Type | Quartz Engineered Diffusers |
| Wavelength Range | 365-1600 nm |
| Angular Deviation | ≤10°: ±0.5°>1° <10°: ±1°>10°: ±10% |
| Surface Quality | – |
| Clear Aperture | Central ≥95% of diameter |
| Damage Threshold | 0.22 J/cm2 with 10 nsec pulses at 1064 nm, typical |
| Wedge | – |
| Chamfers | – |
| Chamfers Angle Tolerance | – |
| Spot Shape: | Circle, square, rectangle, straight line,etc |
What to specify when you request a quote
- Material — listed as “Polymer-on-Glass”; name the glass or crystal.
- Geometry — listed as “0°”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
