Product type: Optical Bandpass Filter. Application: Lighting, Medical, Optical, Photography, Astronomy. Model: Filter.
Overview

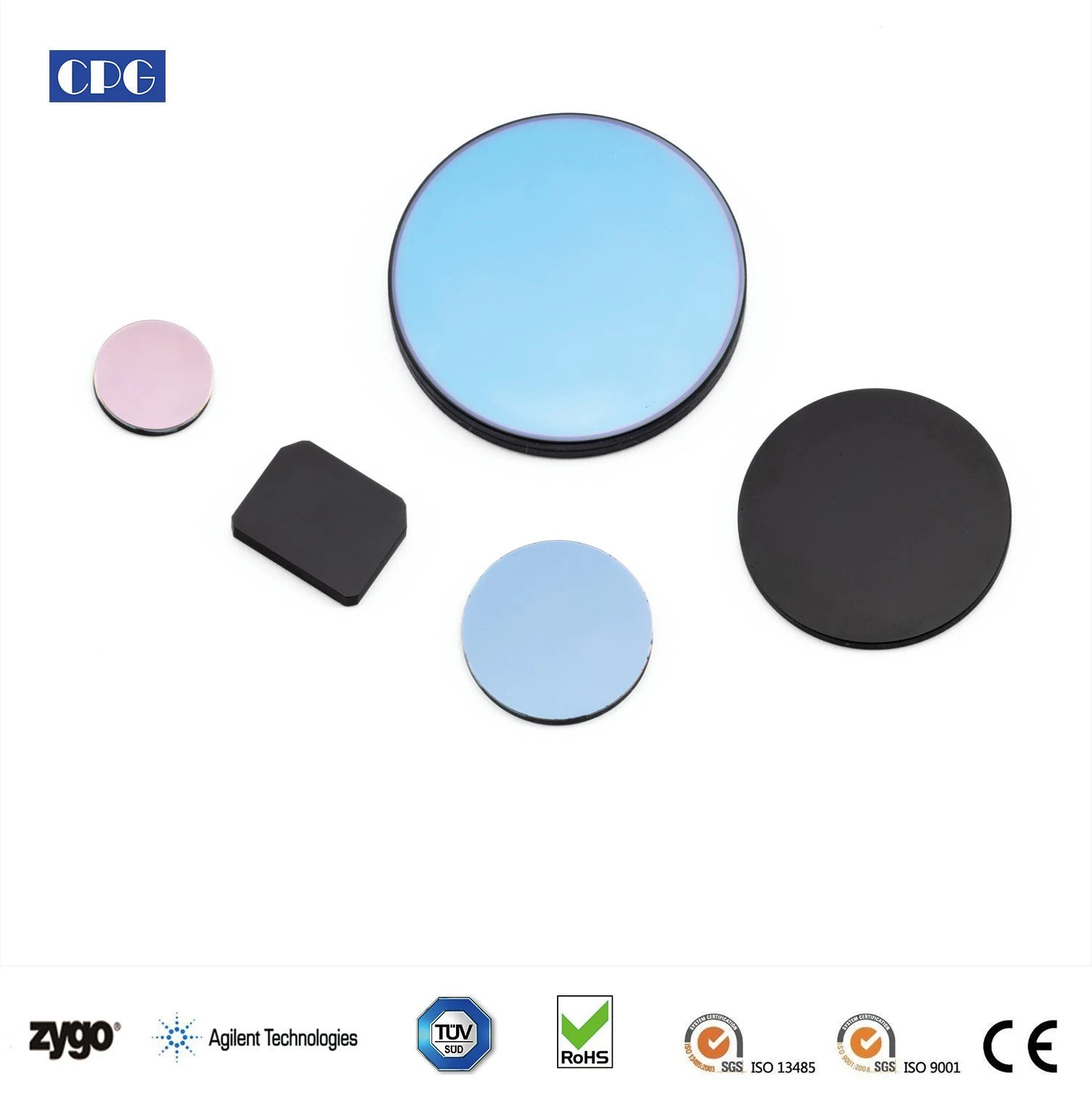

The Optical Filter from UV to far IR for different applications is supplied as an optical filter made from RG850. Listed geometry: diameter 25.4+0/-0.2mm, thickness 2.0+/-0.2mm, round shape. Optical / electrical data: wavelength 1030+/-3nm, bandwidth 19+/-1nm. Surface quality S-D 20-10; flatness PV<1/4L or more. Typical applications: Different industries. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | RG850 |
|---|---|
| Type | Optical Bandpass Filter |
| Shape | Round |
| Diameter | 25.4+0/-0.2mm |
| Thickness | 2.0+/-0.2mm |
| CWL | 1030+/-3nm |
| FWHM | 19+/-1nm |
| Surface quality | S-D 20-10 |
| Flatness | PV<1/4L or more |
| Parallelism | <3arcmin |
| Clear aperture | >90% |
| Application | Different industries |
| Usage | Lighting, Medical, Optical, Photography, Astronomy |
| Model NO. | Filter |
| Thickness Range | 0.5mm-1mm |
| Color | Black |
| Principle | Bandpass Filter |
| Angle of incidence | 0° |
| Filter coating | Bandpass, notch, ND filter |
| Long bandpass | Yes |
| Short bandpass | Yes |
| One of the specifications | Items |
| R1 | infinity |
| R2 | infinity |
| Chamfer | protected |
| Band pass filter coating,AOI | 0deg |
| Standard | MIL-PRF-13830B |
| Applications | . Fluorescence Microscopy |
| CPG is also an ISO | 9001&14001&13485 certified manufacture, we deliver fast and provide best cost performance ratio for our customers. |
| Supplier | CPG OPTICS LIMITED |
Technical data
| Items | Description | |
| Bandpass filter | Material: | RG850 or custom |
| Diameter: | 25.4+0/-0.2mm | |
| Thickness: | 2.0+/-0.2mm | |
| R1: | infinity | |
| R2: | infinity | |
| Flatness: | N/A | |
| Surface quality: | 60-40 | |
| Clear aperture: | >90% | |
| Parallelism: | <3arcmin | |
| Chamfer: | protected | |
| Coating: | Band pass filter coating,AOI:0deg | |
| Tmin>90% | ||
| CWL:1030+/-3nm | ||
| FWHM:19+/-1nm | ||
| Standard: | MIL-PRF-13830B |
What to specify when you request a quote
- Spectral target — listed as “1030+/-3nm”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “25.4+0/-0.2mm”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “RG850”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — listed as “S-D 20-10”; quote scratch-dig for imaging paths.
