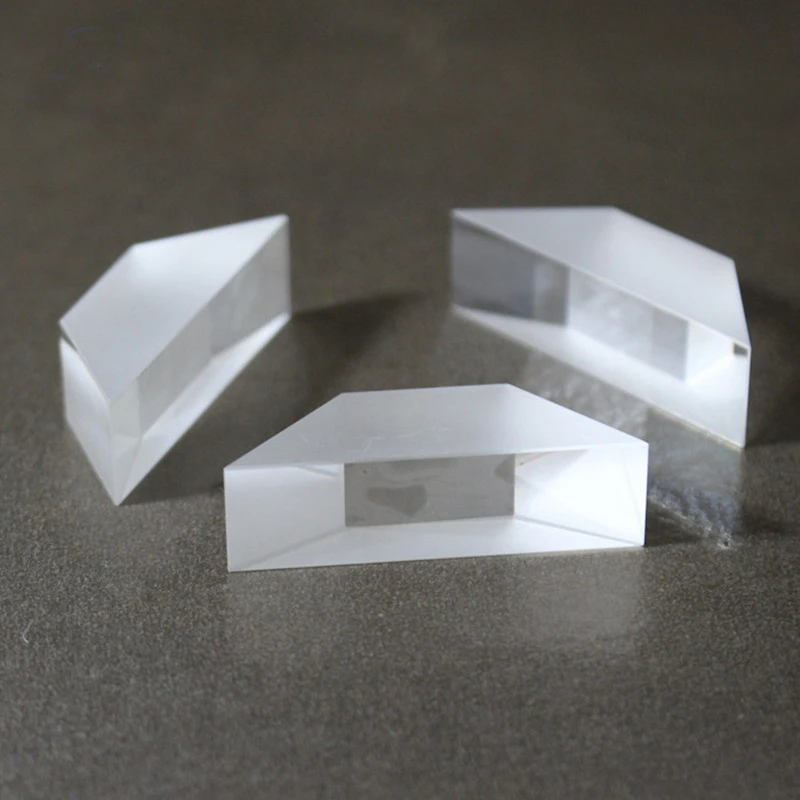

Product type: Prism. Application: Beam Split. Model: SDFT5.
Overview
Optical Glass Bk7 K9 Dove Prism Ar Mgf2 Coating is an optical prism made from Glass. Listed geometry: dove shape. Listed for Digital Device applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Prism |
| Shape | Dove |
| Application | Digital Device |
| Usage | Beam Split |
| Model NO. | SDFT5 |
| Angle Tolerance | <1 Arcmin |
| Supplier | Changchun Sunday Optics Co., Ltd. |
Technical data
| Material | BK7, UV Fused Silica,Sapphire, ZnSe,Caf2,Si,Ge,etc. | |||
| Size | 2mm-300mm | |||
| Size tolerance | +/-0.02mm or customer request | |||
| Clear Aperture | >90% | |||
| S/D | 60-40 40-20 20/10 10/5 | |||
| Flatness | 1/10lambda at 632.80nm | |||
| Chamfer | 0.25mmx45° | |||
| Angle tolerance | <2'',<3'',<30'',<1',>3' | |||
| Coating | AR,HR,Aluminum,Silver or customer request. |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — listed as “<1 Arcmin”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
