Product type: Color Filter. Application: Lighting, Medical, Optical, Photography. Model: TT Filter 92.
Overview

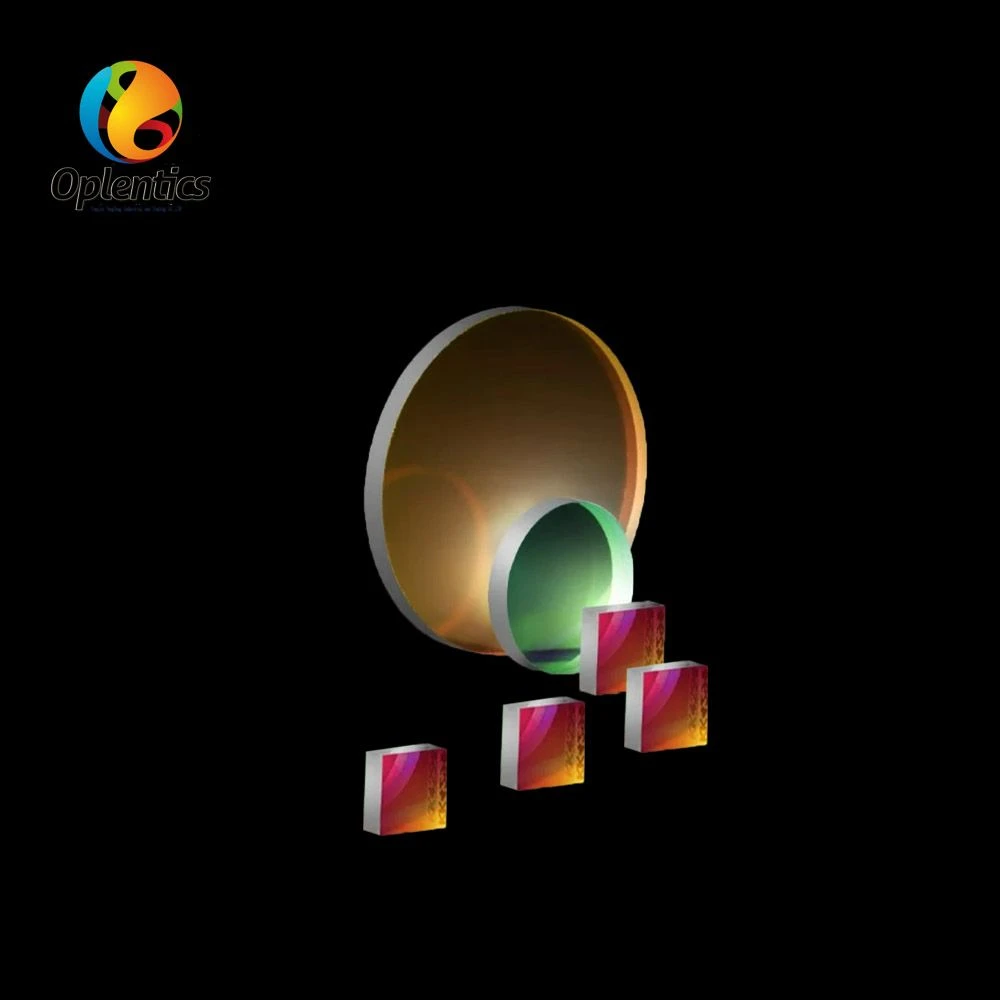

Optical Glass Custom Shape Polarization Cut-off Wavelength Dichroic Shortpass Filters is a longpass / shortpass filter made from Glass. Listed geometry: thickness 1mm-2mm. Surface quality as Required. It is used in Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Surface Quality | as Required |
| Usage | Lighting, Medical, Optical, Photography |
| Thickness Range | 1mm-2mm |
| Model NO. | TT Filter 92 |
| Color | Blue |
| Principle | Selective Absorption Filter |
| Angle of incidence | 0° |
| Polished | Yes |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data
| Product name | Shortpass Filters |
|---|---|
| Description | Shortpass Filters, also known as Shortpass Edge Filters, are used to transmit wavelengths shorter than the cut-off wavelength of the filter. |
What to specify when you request a quote
- Spectral target — state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “1mm-2mm”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — listed as “as Required”; quote scratch-dig for imaging paths.
Engineering guides for this part
For material grades and coating options, see Selecting Longpass Filter Glass for Precision Optical Systems. How parts like this are machined and finished is covered in Precision Glass Cutting Process for Custom Components. For an application example, read Custom Shortpass Filter Glass for Appliance Optical Modules. A related standard product is Shortpass Filter.
